FRONT BRAKE CALIPER

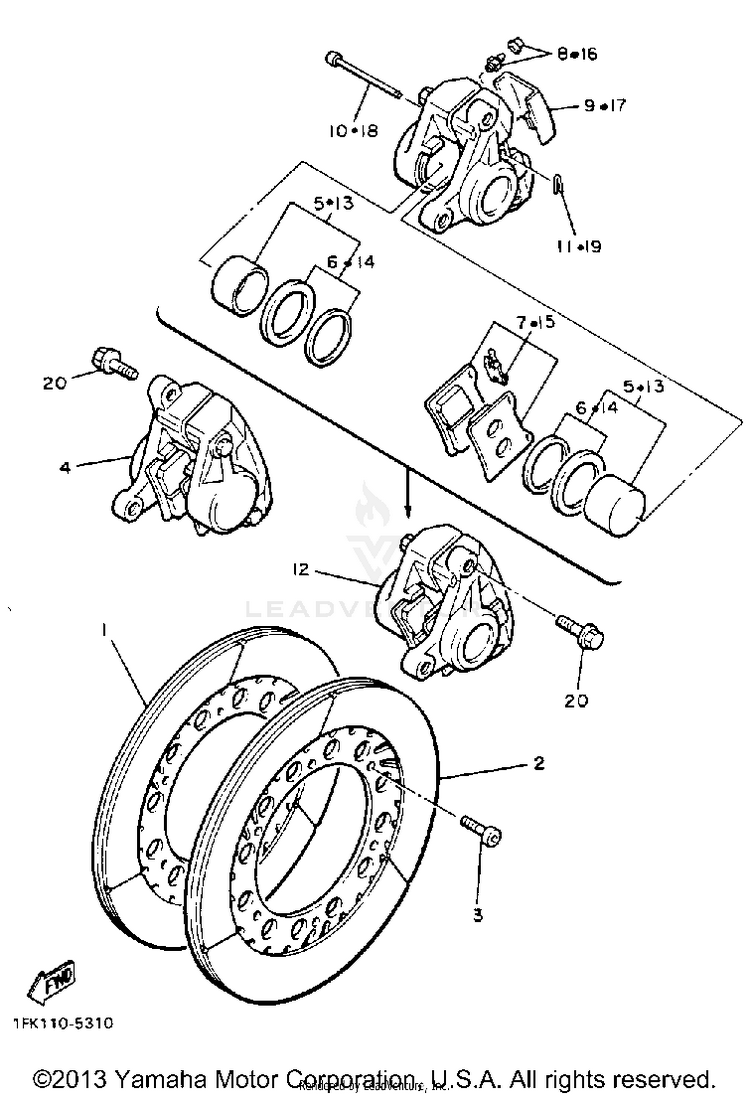

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
136Y-25831-00-00DISC, BRAKE (RIGHT)$373.99$291.71Not Shipping
236Y-25831-10-00DISC, BRAKE LH$386.99$301.85Usually ships in 7-10 business days
390111-08084-00

(replaces part #
90109-08718-00)

BOLT,HEX. SOCKET BUT$6.49$5.0610+ In-Stock
41FK-25810-02-00CALIPER ASS''Y (RT)$639.99$499.19Usually ships in 7-10 business days
51FK-W0057-00-00PISTON ASS''Y, CALIPER$136.99$106.85Usually ships in 7-10 business days
61FK-W0047-00-00CALIPER SEAL KIT$117.99$92.03Usually ships in 7-10 business days
71FK-W0046-01-00BRAKE PAD KIT 2$60.99$47.574 In-Stock
81J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
91FK-25836-01-00

(replaces part #
1FK-25836-00-00)

COVER, DUST$24.99$20.49Usually ships in 7-10 business days
103HE-25924-00-00PIN, PAD$22.99$17.933 In-Stock
113GM-25925-00-00

(replaces part #
3HE-25925-00-00)

CLIP$12.99$10.136 In-Stock
121FK-25810-12-00CALIPER ASS''Y (LT)$798.99$623.21Usually ships in 7-10 business days
131FK-W0057-00-00PISTON ASS''Y, CALIPER$136.99$106.85Usually ships in 7-10 business days
141FK-W0047-00-00CALIPER SEAL KIT$117.99$92.03Usually ships in 7-10 business days
151FK-W0046-01-00BRAKE PAD KIT 2$60.99$47.574 In-Stock
161J3-W0048-00-00BLEED SCREW KIT$33.99$27.87Usually ships in 7-10 business days
171FK-25836-01-00

(replaces part #
1FK-25836-00-00)

COVER, DUST$24.99$20.49Usually ships in 7-10 business days
183HE-25924-00-00PIN, PAD$22.99$17.933 In-Stock
193GM-25925-00-00

(replaces part #
3HE-25925-00-00)

CLIP$12.99$10.136 In-Stock
2090105-10638-00BOLT, WASHER BASED$8.49$6.6210+ In-Stock
