1986 Yamaha YZ490 Starter OEM Parts Diagram

Submodel YZ490S - 1986

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

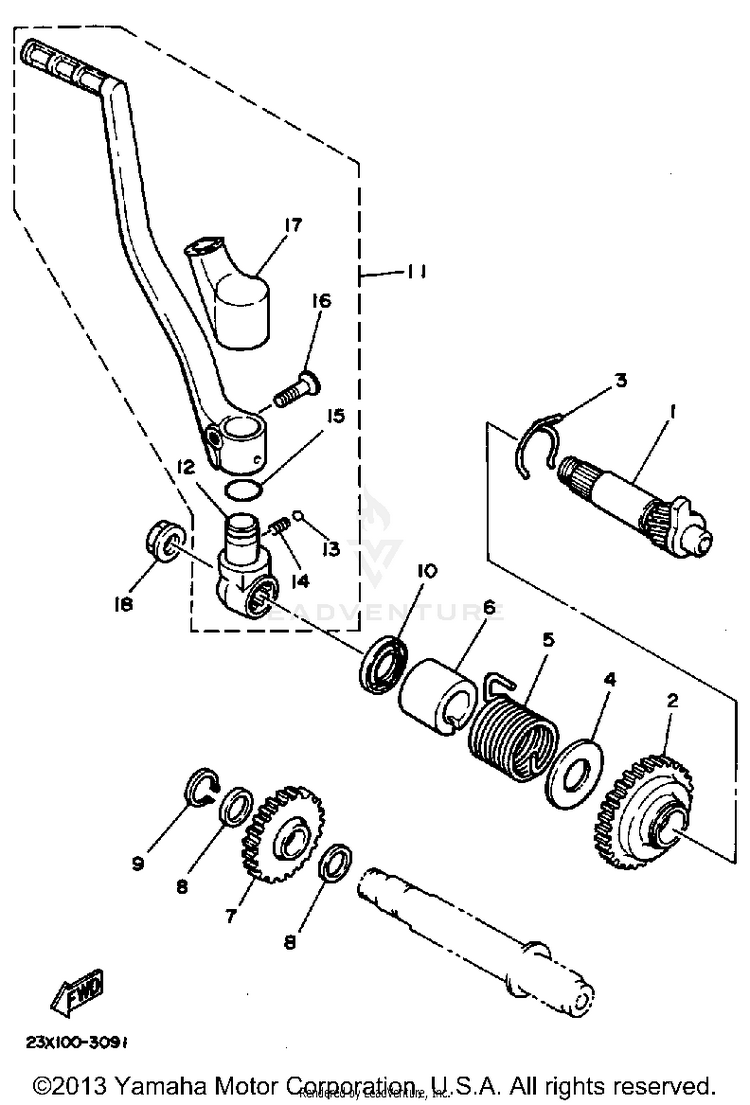

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
157H-15661-00-00KICK AXLE ASSEMBLY$206.99$161.45Not Shipping
223X-15641-00-00GEAR, KICK$60.99$47.57Not Shipping
390468-26048-00

(replaces part #
90468-26177-00)

CLIP$9.49$7.4010+ In-Stock
490201-20358-00WASHER, PLATE$4.85$4.17Not Shipping
590508-30422-00SPRING, TORSION$23.99$18.717 In-Stock
640T-15664-00-00GUIDE, SPRING$17.99$14.75Not Shipping
723X-15651-00-00GEAR, KICK IDLE$82.99$64.73Not Shipping
890201-17545-00WASHER, PLATE$9.49$7.403 In-Stock
999009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
1093102-20309-00OIL SEAL$11.49$8.9610+ In-Stock
1140T-15620-01-00KICK CRANK ASSEMBLY$195.99$152.87Not Shipping
1223X-15621-02-00BOSS, KICK CRANK$100.99$78.77Not Shipping
1393501-04011-00BALL$9.49$7.4010+ In-Stock
1490501-13720-00SPRING, COMPRESSION$9.49$7.406 In-Stock
1593210-19758-00

(replaces part #
93210-19501-00)

O-RING$8.49$6.6210+ In-Stock
1690152-06010-00

(replaces part #
90157-06048-00)

SCREW, COUNTERSUNK$10.49$8.1810+ In-Stock
1723X-15618-00-00COVER, KICK LEVER$5.00$4.30Not Shipping
1890179-12659-00

(replaces part #
90179-12244-00)

NUT$9.49$7.4010+ In-Stock
