1987 Yamaha BW80 Big Wheel Front Wheel OEM Parts Diagram

Submodel BIG WHEEL - BW80T - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

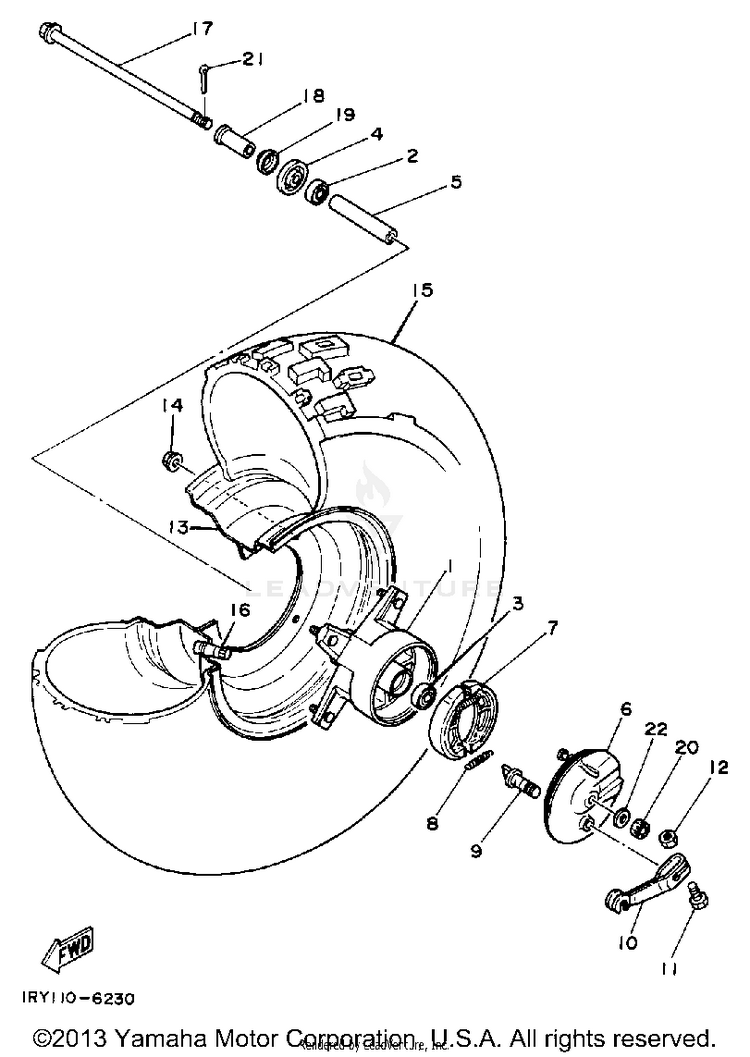

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11RY-25111-00-4RHUB, FRONT | FOX GOLD$319.99$249.59Not Shipping
293306-00105-00BEARING$33.99$26.5110+ In-Stock
393306-00108-00BEARING$36.99$28.853 In-Stock
493106-18013-00OIL SEAL$12.49$9.742 In-Stock
590387-123N0-00COLLAR$9.99$8.99Not Shipping
62J5-25121-00-4RPLATE, BRAKE SHOE | FOX GOLD$33.99$27.87Not Shipping
73EC-W253A-00-00

(replaces part #
5X2-W2535-00-00)

BRAKE SHOE KIT$34.99$27.291 In-Stock
890506-14081-00SPRING, TENSION$9.49$7.4010+ In-Stock
91YT-25351-00-00CAMSHAFT$23.99$19.67Not Shipping
10451-25155-00-00LEVER, CAMSHAFT 1$41.99$32.754 In-Stock
1190101-06291-00BOLT$9.49$7.403 In-Stock
1295380-06600-00NUT, HEXAGON$4.90$4.605 In-Stock
131RY-25180-00-4RWHEEL, FRONT | FOX GOLD$149.99$116.99Usually ships in 7-10 business days
1490185-08169-00

(replaces part #
95601-08200-00)

NUT, SELF-LOCKING$9.49$7.8910+ In-Stock
1594106-106W2-00AT19X6-10KT646A DN (AT19X6-10 K$79.99$65.86Not Shipping
1693900-00030-00VALVE, RIM (TR412)$18.49$14.425 In-Stock
171RY-25181-00-00AXLE, WHEEL$31.99$26.23Not Shipping
1890387-122N9-00COLLAR$13.49$11.06Usually ships in 7-10 business days
19462-25118-00-00COVER, HUB DUST$17.99$14.03Not Shipping
2090171-12058-00

(replaces part #
95301-12900-00)

NUT, CASTLE$2.90$2.61Not Shipping
2191490-25030-00

(replaces part #
91401-25030-00)

PIN. COTTER$4.10$3.5310+ In-Stock
2292990-12200-00WASHER, PLAIN$9.49$7.406 In-Stock
