1987 Yamaha WARRIOR 350 Headlight OEM Parts Diagram

Submodel WARRIOR - YFM350XT - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

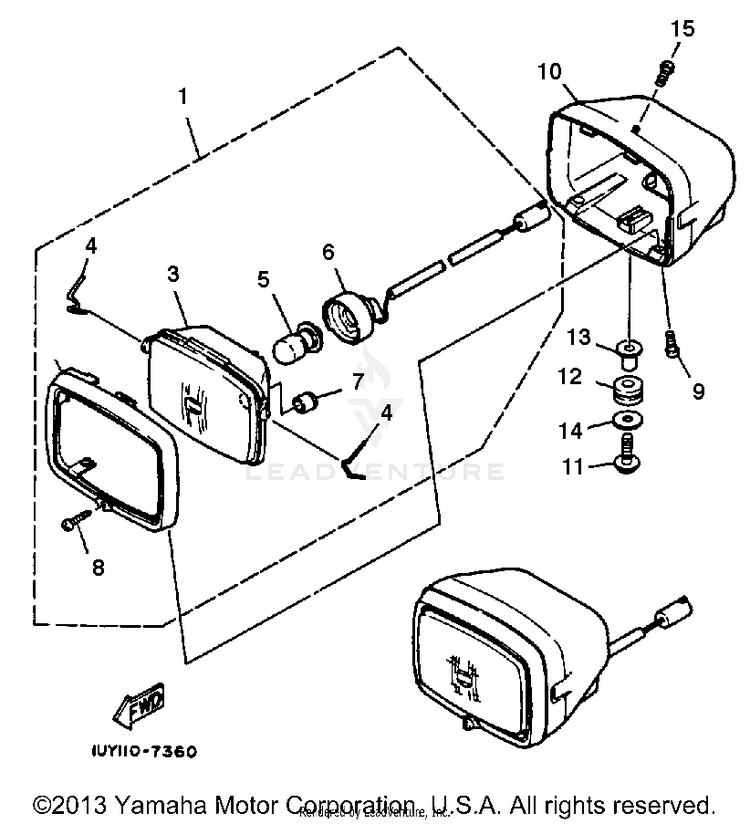

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-90201-06747-00

(replaces part #
90201-06407-00)

WASHER, PLATE$9.49$7.408 In-Stock
-1UY-84330-00-00BODY ASSEMBLY | UR WHITE$50.99$39.77Usually ships in 7-10 business days
11UY-84310-00-00HEADLIGHT UNIT ASY | N/A$0.00$0.00Not Shipping
21UY-84315-00-00RIM, HEADLIGHT$60.99$47.57Usually ships in 7-10 business days
359V-84320-01-00

(replaces part #
59V-84320-00-00)

LENS ASSY$105.99$82.67Usually ships in 7-10 business days
41UY-84124-00-00SPRING, SET$8.49$7.646 In-Stock
51YT-84314-00-00

(replaces part #
102-84314-00-00)

BULB, HEADLIGHT (12V-25/25W)$12.99$10.1310+ In-Stock
659V-84312-02-00

(replaces part #
59V-84312-00-00)

SOCKET$32.99$25.73Not Shipping
73K7-84154-10-00GROMMET$10.49$8.601 In-Stock
897780-40525-00SCREW, TAPPING$10.49$8.60Usually ships in 7-10 business days
990157-05M19-00

(replaces part #
98586-05016-00)

SCREW, PAN HEAD$3.75$3.224 In-Stock
101UY-84330-10-00BODY ASSEMBLY | BLACK$30.99$25.41Usually ships in 7-10 business days
1195817-06025-00

(replaces part #
95811-06025-00)

BOLT, FLANGE$5.49$4.2810+ In-Stock
1290480-15363-00GROMMET$9.49$7.403 In-Stock
1390387-063G3-00COLLAR$9.49$7.4010+ In-Stock
1490159-04090-00

(replaces part #
1UY-84325-00-00)

SCREW,WITH WASHER | UR WHITE$0.65$0.58Not Shipping
1598507-04010-00

(replaces part #
98506-04010-00)

SCREW, PAN HEAD | BLACK$3.65$3.1410+ In-Stock
