1987 Yamaha YFM200 MOTO 4 Starter OEM Parts Diagram

Submodel MOTO-4 - YFM200DXT - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

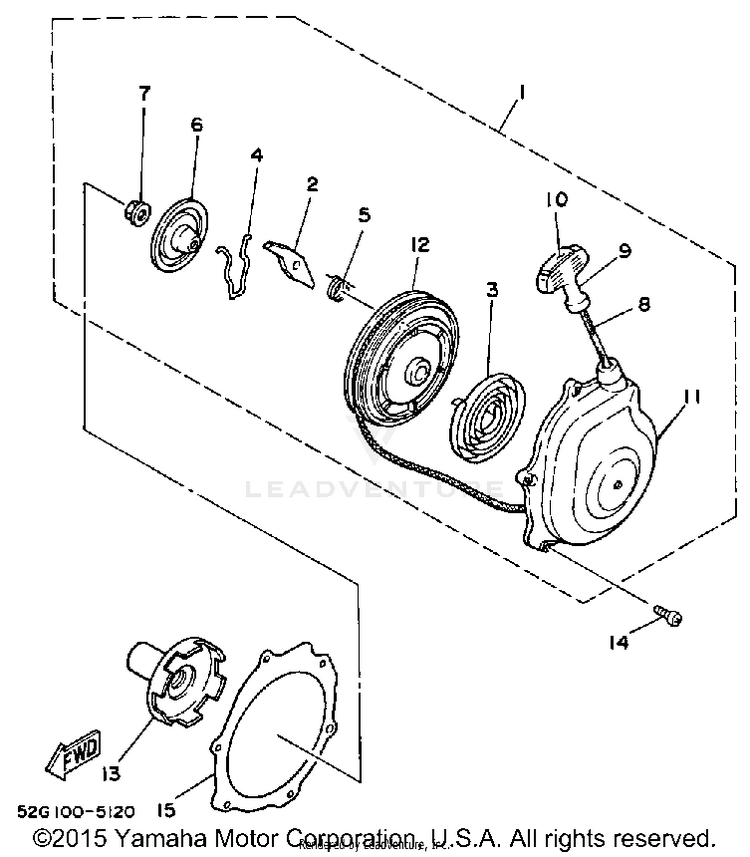

STARTER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
124W-15710-00-00STARTER ASSY$237.99$185.63Not Shipping
221V-15741-00-00PAWL, DRIVE$25.99$20.272 In-Stock
321V-15713-00-00SPRING, STARTER$28.99$22.611 In-Stock
421V-15715-00-00SPRING, FRICTION$33.99$26.511 In-Stock
521V-15767-00-00SPRING$8.49$6.623 In-Stock
621V-15716-00-00PLATE, DRIVE$30.99$25.41Usually ships in 7-10 business days
795780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
889A-15751-00-00

(replaces part #
5V6-15751-00-XX)

WIRE, STARTER$36.99$28.854 In-Stock
93X3-15755-00-00HANDLE, STARTER$32.99$25.733 In-Stock
1021V-15779-00-00COVER$8.49$6.625 In-Stock
1124W-15711-00-00CASE, STARTER$194.99$152.09Not Shipping
1224W-15714-00-00DRUM, SHEAVE$62.99$49.132 In-Stock
1321V-15723-00-00PULLEY, STARTER$144.99$113.09Not Shipping
1498517-06020-00

(replaces part #
98516-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
1521V-15699-01-00

(replaces part #
21V-15699-00-00)

GASKET$20.99$17.21Not Shipping
