1987 Yamaha YZ80 Starter OEM Parts Diagram

Submodel MOTOCROSS - YZ80T - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTER

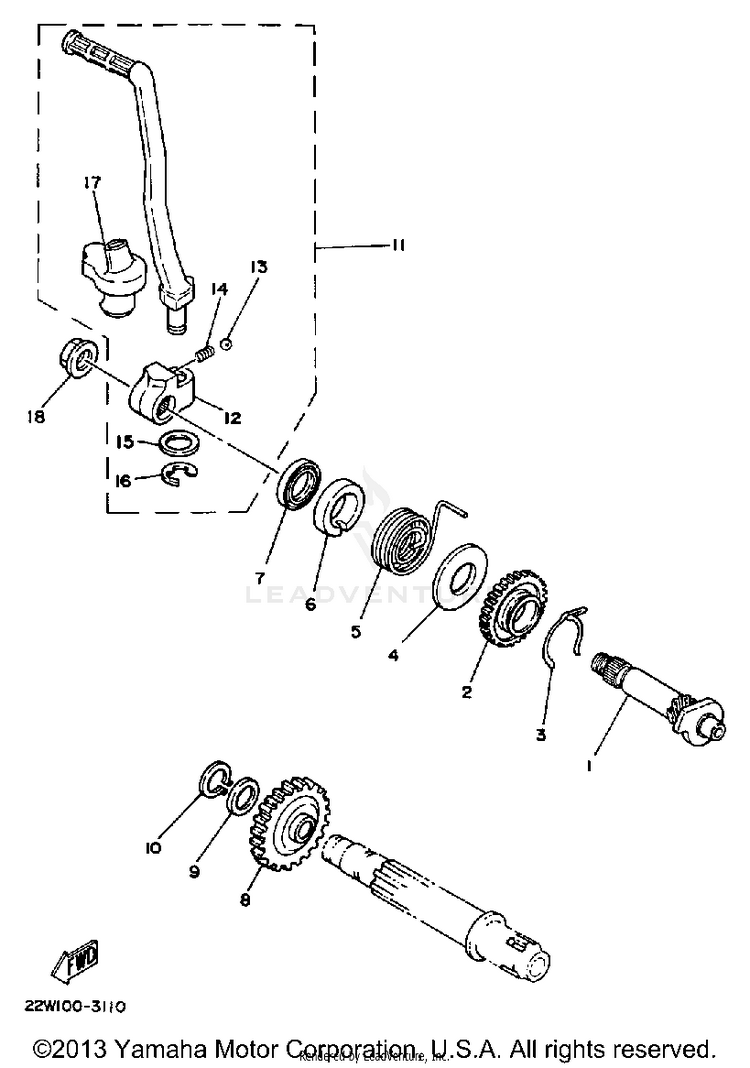

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
122W-15660-00-00KICK AXLE ASSEMBLY$117.99$92.03Not Shipping
24V0-15641-00-00GEAR, KICK (24T)$67.99$53.03Not Shipping
390468-26046-00CLIP$3.85$3.46Usually ships in 7-10 business days
490201-154A1-00WASHER, PLATE$3.85$3.46Not Shipping
590508-26750-00SPRING, TORSION$13.49$10.524 In-Stock
64V0-15664-00-00GUIDE, SPRING$18.99$15.57Not Shipping
793109-15001-00OIL SEAL, SDO-TYPE$9.49$7.408 In-Stock
810X-15651-00-00

(replaces part #
4V0-15651-00-00)

GEAR, KICK IDLE$72.99$56.93Usually ships in 7-10 business days
990201-12M34-00WASHER, PLATE$3.90$3.35
1099009-12400-00CIRCLIP$3.59$3.0910+ In-Stock
1122W-15620-00-00KICK CRANK ASSEMBLY$155.99$121.67Not Shipping
124V0-15621-00-00BOSS, KICK CRANK$76.99$60.05Usually ships in 7-10 business days
1393507-32031-00BALL$5.49$4.2810+ In-Stock
1490501-12081-00SPRING, BOSS STOPPER$9.49$7.4010+ In-Stock
1590201-12631-00WASHER, PLATE$10.49$8.182 In-Stock
1693430-08007-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
174V0-15618-00-00COVER, KICK LEVER$23.99$19.67Not Shipping
1895704-10500-00

(replaces part #
95701-10500-00)

NUT, WITH WASHER-$2.285 In-Stock
