1988 Yamaha BANSHEE 350 Crankshaft - Piston OEM Parts Diagram

Submodel BANSHEE - YFZ350U - 1988

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

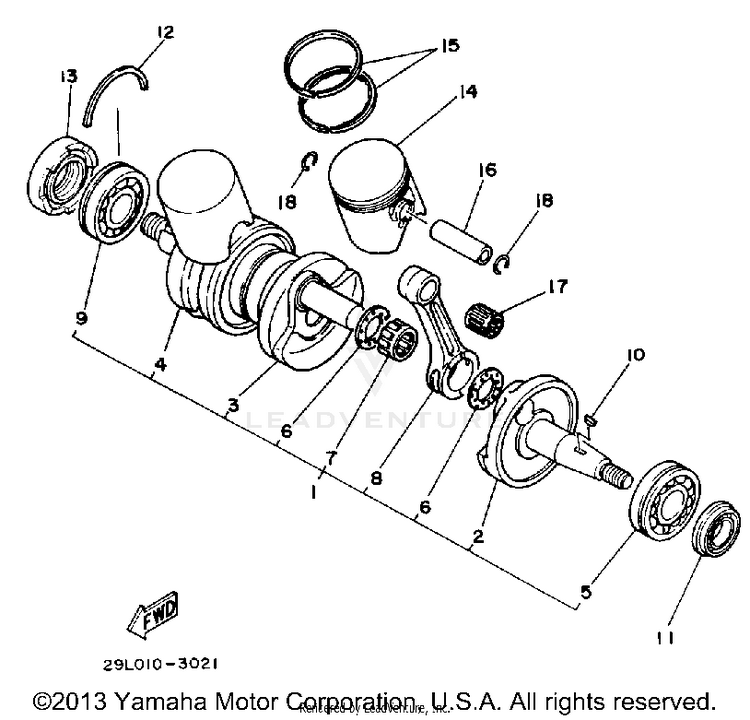

CRANKSHAFT - PISTON

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2GU-11636-00-00PISTON (0.50MM O/S) | ALT. PART$144.99$113.09Usually ships in 7-10 business days
-2GU-11635-00-00PISTON (0.25MM O/S) | ALT. PART$79.99$62.39Usually ships in 7-10 business days
-2GU-11610-21-00PISTON RING SET (0.50MM O/S) | ALT. PART$74.99$58.49Usually ships in 7-10 business days
-2GU-11610-11-00PISTON RING SET (0.25MM O/S) | ALT. PART$78.99$61.61Usually ships in 7-10 business days
129L-11400-30-00CRANKSHAFT ASSY$1,096.99$900.021 In-Stock
229L-11412-00-00CRANK 1$147.99$115.43Usually ships in 7-10 business days
329L-11401-09-00

(replaces part #
29L-11409-30-00)

CRANK SUB ASSY 1$445.99$370.07Usually ships in 7-10 business days
429L-11442-10-00CRANK 4$145.99$113.87Usually ships in 7-10 business days
593306-30571-00

(replaces part #
93306-30564-00)

BEARING$78.99$61.614 In-Stock
690209-22257-00WASHER$32.99$27.052 In-Stock
793310-523D2-00

(replaces part #
93310-522L4-00)

BEARING, CYLINDRICAL$84.99$66.29Usually ships in 7-10 business days
829L-11651-00-00ROD, CONNECTING$110.99$86.57Usually ships in 7-10 business days
993306-30549-00BEARING$71.99$56.155 In-Stock
1090280-05033-00KEY, WOODRUFF$11.49$8.96
1193103-25108-00OIL SEAL$22.99$17.938 In-Stock
12278-17424-01-00CIRCLIP 1$23.99$18.7110+ In-Stock
1393103-40077-00OIL SEAL$20.99$16.3710+ In-Stock
142GU-11631-00-94PISTON (STD)$152.99$119.332 In-Stock
152GU-11610-01-00PISTON RING SET (STD)$76.99$60.057 In-Stock
164L0-11633-00-00PIN, PISTON$34.99$27.296 In-Stock
1793310-316D6-00

(replaces part #
93310-316H6-00)

BEARING$43.99$34.3110+ In-Stock
1893450-17129-00CIRCLIP$4.45$3.8310+ In-Stock
