1988 Yamaha DT50 Crankcase OEM Parts Diagram

Submodel DT50LC - 1988

Shop Aftermarket Parts

CRANKCASE

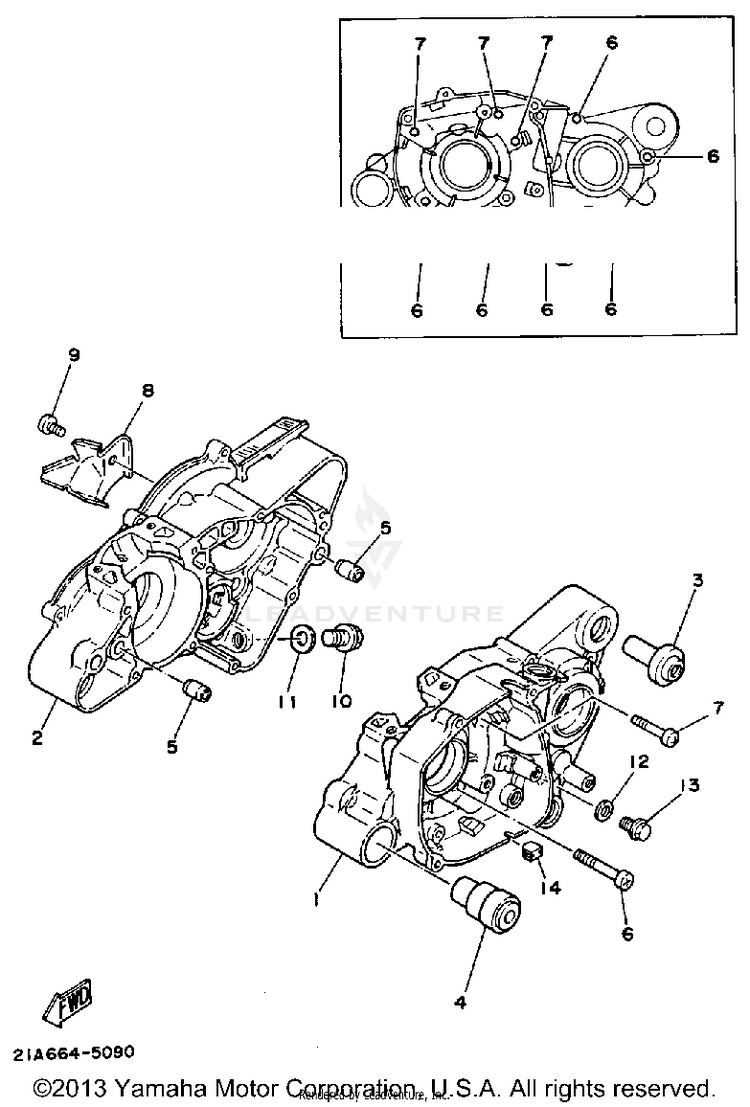

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15R2-15111-09-00CRANKCASE 1$266.99$211.47Usually ships in 7-10 business days
25R2-15121-02-00CRANKCASE 2$239.99$187.19Usually ships in 7-10 business days
353V-15317-00-00SPACER, ENG MOUNT$9.56$8.60Usually ships in 7-10 business days
453V-15327-00-00SPACER, ENG MOUNT$12.54$10.28Usually ships in 7-10 business days
599530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
698580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
797885-06035-00

(replaces part #
98580-06035-00)

SCREW, PAN HEAD$6.49$5.119 In-Stock
85R2-15113-00-00PLATE$2.17$1.95Usually ships in 7-10 business days
997885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
1090340-12097-00PLUG, STRAIGHT SCREW$3.35$2.8810+ In-Stock
1190430-12207-00GASKET$8.49$6.6210+ In-Stock
1290430-10171-00BOLT, UNION$3.45$2.9710+ In-Stock
1390105-10147-00

(replaces part #
95821-10014-00)

BOLT, FLANGE$11.49$9.42Usually ships in 7-10 business days
1490338-09206-00PLUG$10.49$8.185 In-Stock
