1988 Yamaha DT50 Swing Arm OEM Parts Diagram

Submodel DT50L - 1988

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SWING ARM

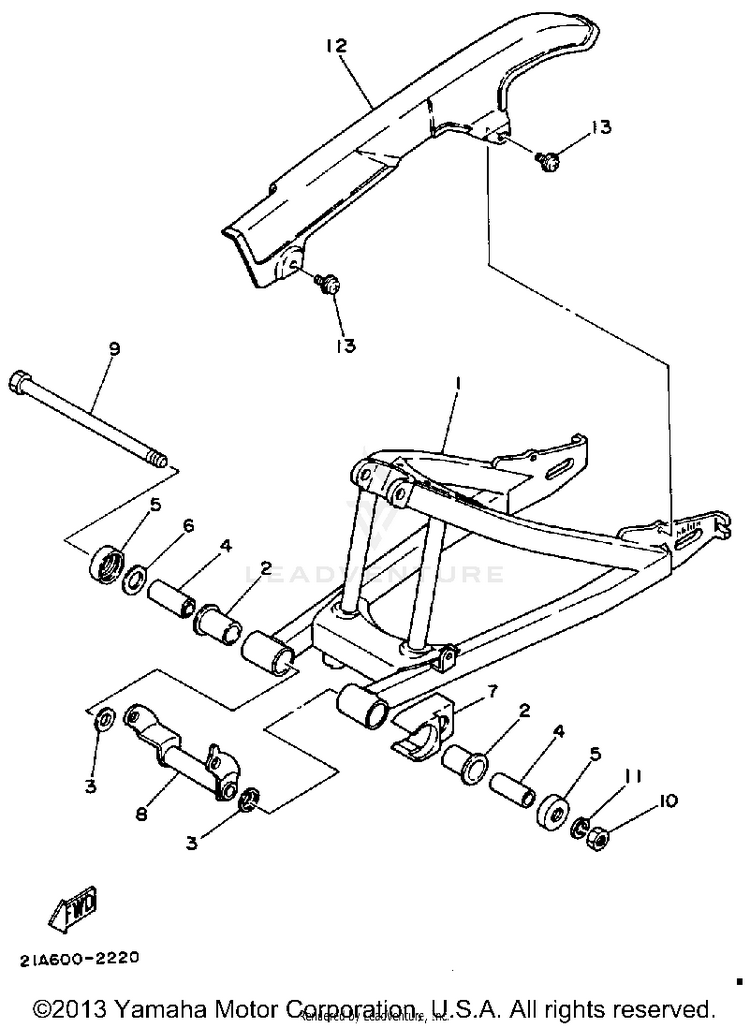

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
117W-22110-01-35REAR ARM | SILVER$213.99$166.91Usually ships in 7-10 business days
290386-18099-00BUSH$16.99$13.25Not Shipping
393109-18020-00OIL SEAL$14.49$11.305 In-Stock
42J5-22124-00-00BUSH 2$52.99$41.33Usually ships in 7-10 business days
5401-22128-01-00COVER, THRUST 1$31.99$24.953 In-Stock
6401-22127-00-00SHIM$8.49$6.623 In-Stock
717W-22151-00-00SEAL, GUARD$6.02$5.42Not Shipping
817W-22126-00-00COLLAR, DISTANCE$11.88$9.74Usually ships in 7-10 business days
92N4-22141-00-00SHAFT, PIVOT$31.99$24.951 In-Stock
1095304-12600-00

(replaces part #
95303-12600-00)

NUT$9.49$7.408 In-Stock
1192990-12100-00

(replaces part #
92901-12100-00)

WASHER, SPRING$9.49$7.405 In-Stock
1217W-22311-00-00CASE, CHAIN$43.99$36.07Usually ships in 7-10 business days
1390159-06058-00SCREW, WITH WASHER$11.49$8.9610+ In-Stock
