1988 Yamaha TW200 Trailway Handle Switch Lever OEM Parts Diagram

Submodel TRAILWAY - TW200UC - 1988

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

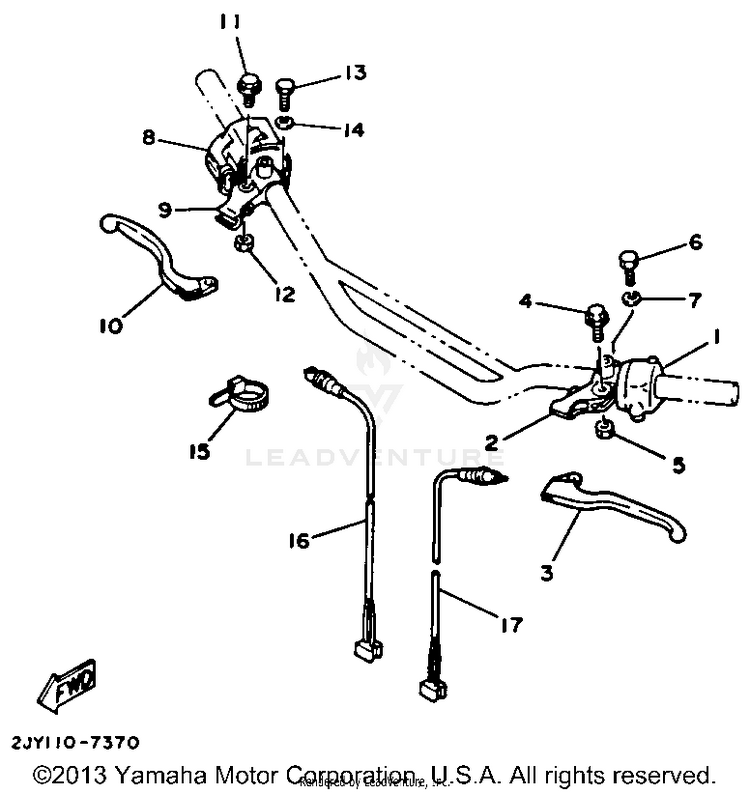

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12JX-83973-01-00

(replaces part #
2JX-83973-00-00)

SWITCH, HANDLE 3$164.99$128.69Not Shipping
23Y6-82911-00-00HOLDER, LEVER 1$60.99$47.573 In-Stock
323X-83912-02-00

(replaces part #
23X-83912-00-00)

LEVER 1$30.99$24.1710+ In-Stock
490109-06798-00BOLT$9.49$7.404 In-Stock
595617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
697007-06022-00

(replaces part #
97006-06022-00)

BOLT$9.49$7.402 In-Stock
792907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
82JX-83976-00-00SWITCH, HANDLE 1$106.99$83.45Not Shipping
9361-82920-93-00HOLDER, LEVER 2 (36182-92131-$119.99$93.59Not Shipping
1023X-83922-01-00

(replaces part #
23X-83922-00-00)

LEVER 2$30.99$24.1710+ In-Stock
1190109-06798-00BOLT$9.49$7.404 In-Stock
1295617-06100-00

(replaces part #
95616-06100-00)

NUT, U$2.90$2.4910+ In-Stock
1397007-06022-00

(replaces part #
97006-06022-00)

BOLT$9.49$7.402 In-Stock
1492907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
15437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
163Y6-82917-00-00

(replaces part #
5H0-83980-00-00)

SWITCH$16.49$13.52Usually ships in 7-10 business days
173Y6-82917-00-00SWITCH$16.49$13.52Usually ships in 7-10 business days
