1988 Yamaha V-Max Crankcase OEM Parts Diagram

Submodel V-MAX 1200 - VMX12UC - 1988

Shop Aftermarket Parts

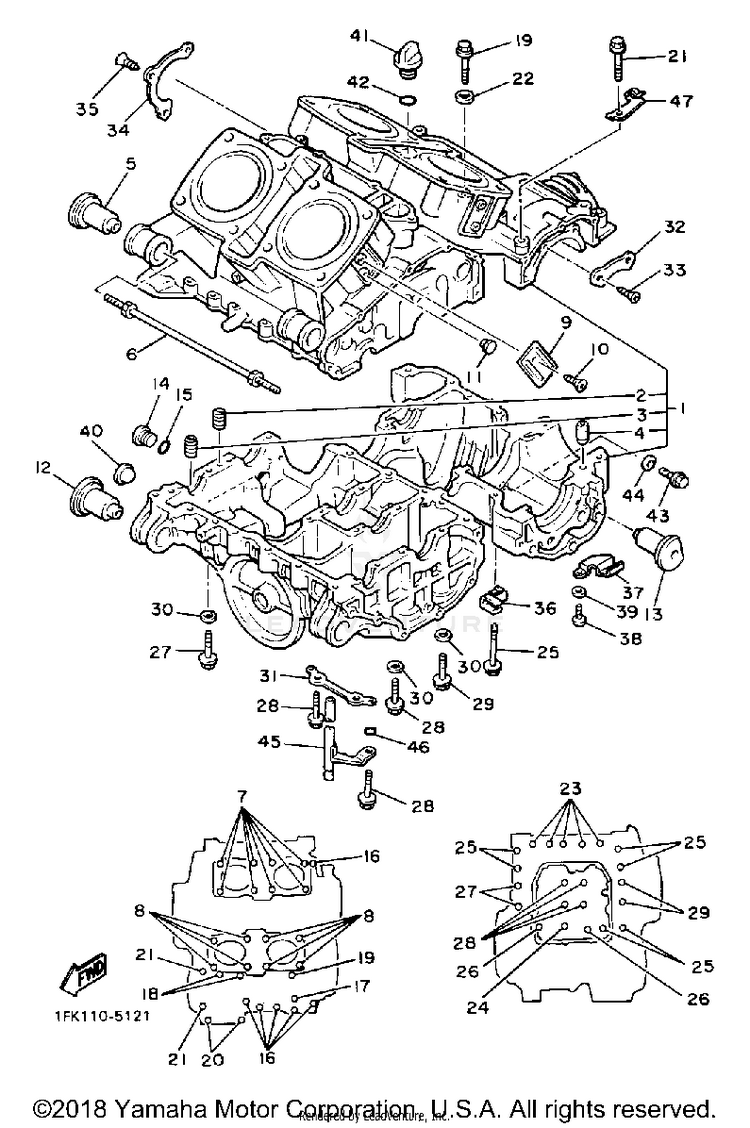

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11FK-15100-01-00CRANKCASE ASSEMBLY$3,049.99$3,049.99Usually ships in 7-10 business days
226H-15138-00-00NOZZLE 1$11.49$9.42Usually ships in 7-10 business days
34KM-13572-01-00

(replaces part #
4G0-15138-00-00)

NOZZLE$7.99$7.19Usually ships in 7-10 business days
499530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
51AA-15336-01-00

(replaces part #
1AA-15336-00-00)

DAMPER, ENGINE MOUNT 3$32.99$27.05Usually ships in 7-10 business days
690109-106A1-00BOLT$22.99$18.85Usually ships in 7-10 business days
790116-10411-00BOLT, STUD$14.49$11.88Usually ships in 7-10 business days
890116-10411-00BOLT, STUD$14.49$11.88Usually ships in 7-10 business days
92HY-15417-00-00COVER, CAP$35.99$29.51Usually ships in 7-10 business days
1090151-06036-00

(replaces part #
90151-06035-00)

SCREW, COUNTERSUNK$10.49$8.60Usually ships in 7-10 business days
1190338-11152-00PLUG$20.99$17.21Usually ships in 7-10 business days
121AA-15336-01-00

(replaces part #
1AA-15336-00-00)

DAMPER, ENGINE MOUNT 3$32.99$27.05Usually ships in 7-10 business days
131AA-15326-00-00DAMPER, ENGINE MOUNT 2$35.99$29.51Usually ships in 7-10 business days
144H7-15189-00-00PLUG$33.99$26.518 In-Stock
1593210-20573-00O-RING$9.49$7.408 In-Stock
1695817-06045-00

(replaces part #
95811-06045-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
1795817-06070-00

(replaces part #
95811-06070-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
1895817-06090-00

(replaces part #
95811-06090-00)

BOLT, FLANGE$3.85$3.46Usually ships in 7-10 business days
1995817-06095-00

(replaces part #
95816-06095-00)

BOLT, FLANGE$2.90$2.61Usually ships in 7-10 business days
2095814-08045-00

(replaces part #
95811-08045-00)

BOLT, FLANGE$4.75$4.086 In-Stock
2195817-08080-00

(replaces part #
95811-08080-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
2290430-06166-00GASKET$4.05$3.4810+ In-Stock
2395817-08050-00

(replaces part #
95811-08050-00)

BOLT, FLANGE$3.70$3.1810+ In-Stock
2495814-08065-00

(replaces part #
95811-08065-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
2595817-08080-00

(replaces part #
95811-08080-00)

BOLT, FLANGE$5.49$4.94Usually ships in 7-10 business days
2695817-08095-00

(replaces part #
95811-08095-00)

BOLT, FLANGE$5.49$4.281 In-Stock
2790105-10247-00BOLT, WASHER BASED$3.10$2.79Usually ships in 7-10 business days
2890105-10248-00BOLT, FLANGE$13.49$11.06Usually ships in 7-10 business days
2990105-10249-00BOLT, FLANGE$14.49$11.88Usually ships in 7-10 business days
3090201-10131-00WASHER, PLATE$10.49$8.189 In-Stock
3126H-15113-00-00PLATE$19.99$16.39Usually ships in 7-10 business days
3226H-15381-00-00PLATE, BEARING COVER$10.99$9.01Usually ships in 7-10 business days
3390149-08013-00

(replaces part #
90149-08152-00)

SCREW$9.49$7.408 In-Stock
3426H-15383-00-00PLATE, BEARING COVER$8.99$8.09Usually ships in 7-10 business days
3598707-06016-00

(replaces part #
90151-06041-00)

SCREW, FLAT HEAD$9.49$7.401 In-Stock
3690465-08233-00CLAMP$6.49$5.84Usually ships in 7-10 business days
3790465-08287-00CLAMP$8.99$8.09Usually ships in 7-10 business days
3897885-06012-00

(replaces part #
98580-06012-00)

SCREW, PAN HEAD$3.45$2.9710+ In-Stock
3992990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
402H7-15361-00-00GAUGE, LEVEL$105.99$82.67Usually ships in 7-10 business days
412H9-15363-00-00PLUG, OIL$47.99$39.35Usually ships in 7-10 business days
4293210-27778-00O-RING$9.49$7.4010+ In-Stock
4395811-12016-00

(replaces part #
95801-12016-00)

BOLT,FLANGE$1.00$0.90Usually ships in 7-10 business days
4490201-12790-00WASHER, PLATE$10.49$8.185 In-Stock
4526H-15373-00-00PIPE, BREATHER$14.49$11.88Usually ships in 7-10 business days
4693210-06667-00O-RING$8.49$6.626 In-Stock
471FK-15441-00-00HOLDER, CLUTCH CABLE$17.49$14.34Usually ships in 7-10 business days
