1989 Yamaha BREEZE 125 Generator OEM Parts Diagram

Submodel BREEZE - YFA1W - 1989

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

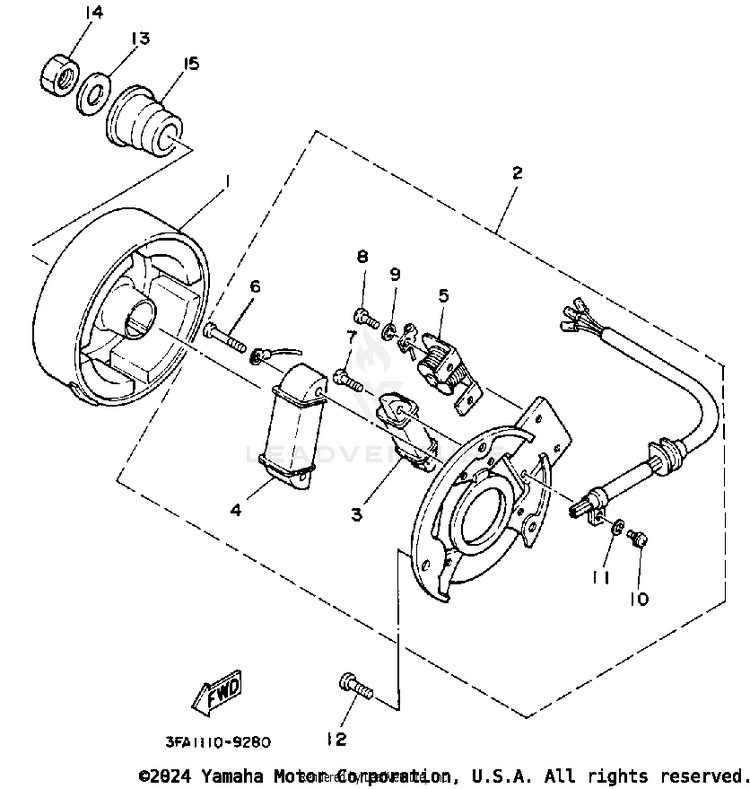

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13FA-85550-00-00ROTOR ASSY$294.99$230.09Usually ships in 7-10 business days
23FA-85560-00-00BASE ASSEMBLY$366.99$286.25Not Shipping
33FA-85520-00-00COIL, CHARGE$61.99$48.35Not Shipping
43FA-81313-00-00COIL, LIGHTING 1$61.99$48.35Not Shipping
555K-85595-M0-00COIL, PULSER$75.99$63.14Usually ships in 7-10 business days
698517-04025-00

(replaces part #
90157-04045-00)

SCREW, PAN HEAD$3.30$2.8410+ In-Stock
798517-04016-00

(replaces part #
98511-04016-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
898580-04008-00SCREW, PAN HEAD$6.49$5.0610+ In-Stock
992990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1098517-04006-00

(replaces part #
98511-04006-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
1192990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1298580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1390201-120E8-00WASHER, PLATE$8.49$6.624 In-Stock
1490170-12181-00NUT$13.49$10.522 In-Stock
153FA-15724-00-00SPACER$31.99$26.23Usually ships in 7-10 business days
