1990 Yamaha BANSHEE 350 Front Master Cylinder OEM Parts Diagram

Submodel BANSHEE - YFZ350A - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

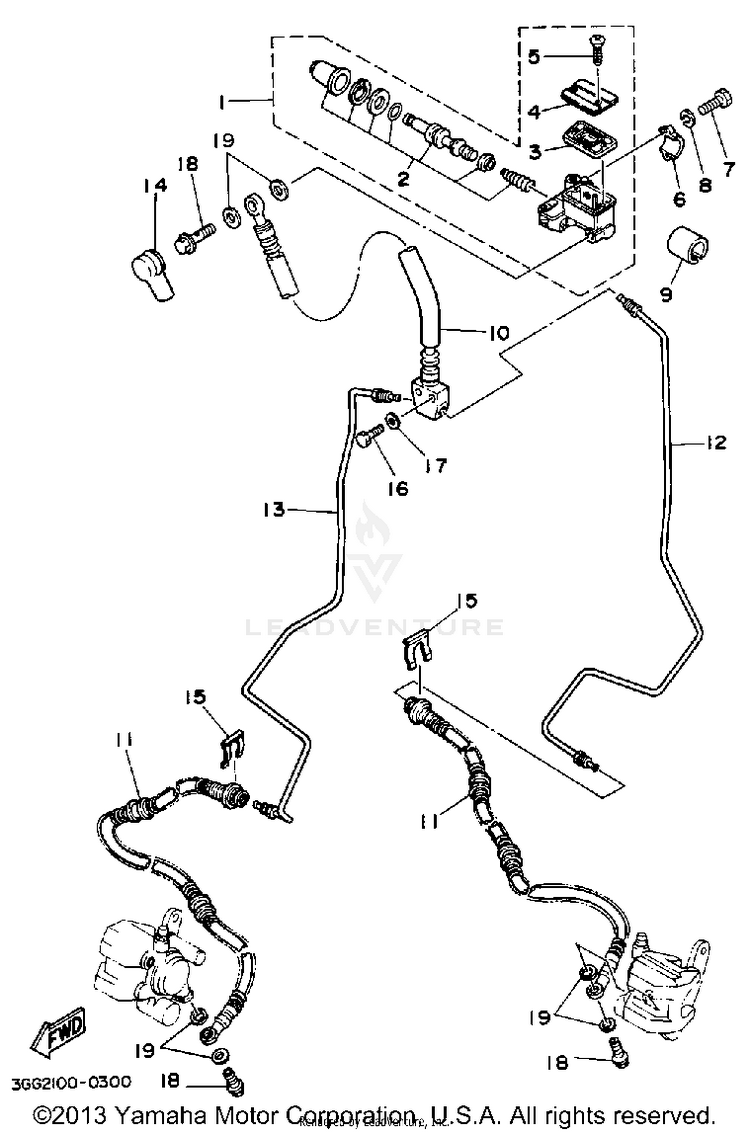

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-25870-10-00

(replaces part #
2GU-25850-00-00)

MASTER CYL. ASSY$318.99$248.81Usually ships in 7-10 business days
24H7-W0041-50-00CYLINDER KIT, MASTER$84.99$66.296 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.314 In-Stock
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
44H7-25852-00-00CAP, RESERVOIR$43.99$34.312 In-Stock
598707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
656A-25867-00-00BRACKET, MASTER CYLINDER$31.99$24.953 In-Stock
797017-06025-00

(replaces part #
97016-06025-00)

BOLT$4.55$3.9110+ In-Stock
892907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
91UY-26259-00-00COLLAR$21.99$17.152 In-Stock
1099999-02536-00

(replaces part #
2GU-25872-01-00)

HOSE,BRAKE 1$116.99$91.25Not Shipping
1199999-02535-00

(replaces part #
3GG-25873-00-00)

HOSE,BRAKE 1$66.99$52.25Usually ships in 7-10 business days
122GU-25871-10-00

(replaces part #
2GU-25871-00-00)

PIPE, BRAKE$26.99$21.052 In-Stock
132GU-25882-10-00

(replaces part #
2GU-25882-00-00)

PIPE, BRAKE 2$21.99$17.155 In-Stock
144L0-25862-02-00

(replaces part #
4L0-25862-00-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
152GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
1697013-08025-00BOLT, KICK CRANK$9.49$7.406 In-Stock
1792990-08600-00

(replaces part #
92901-08600-00)

WASHER, PLATE$2.80$2.7610+ In-Stock
1890401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1990201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
