1990 Yamaha Virago XV535 Handlebar Cable OEM Parts Diagram

Submodel VIRAGO 535 - XV535AC - 1990

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR CABLE

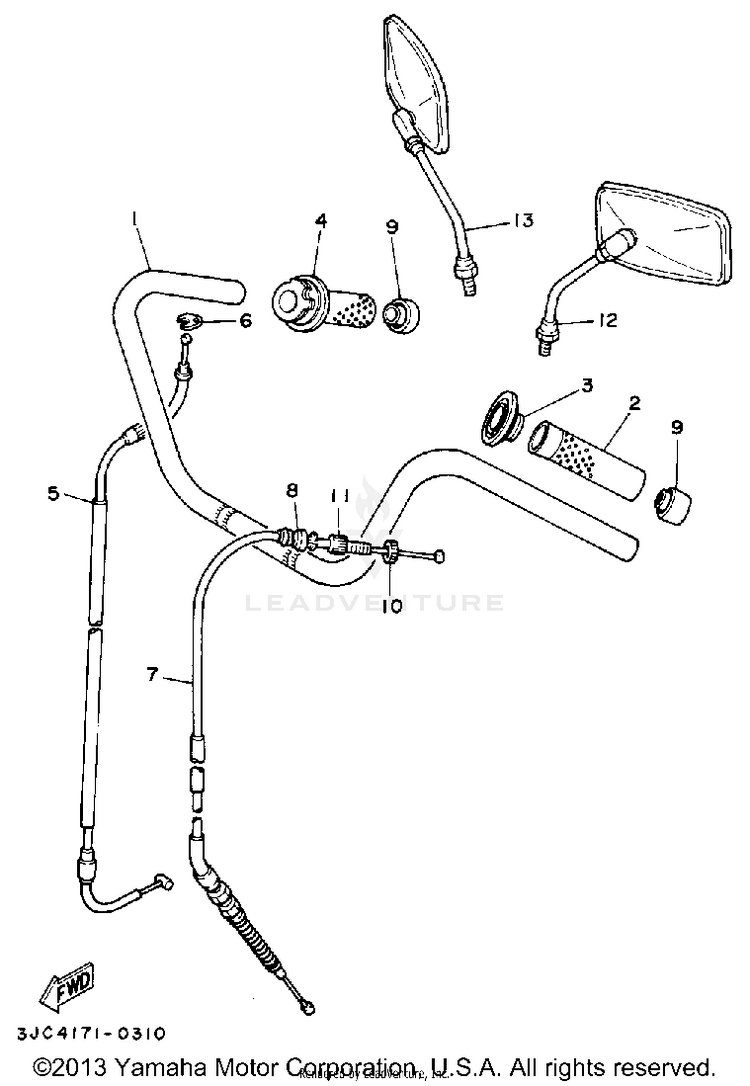

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GV-26111-01-00HANDLEBAR$106.99$83.45Usually ships in 7-10 business days
23JB-26241-00-00GRIP$53.99$42.11Usually ships in 7-10 business days
33JB-26273-00-00ROTOR$64.99$50.69Usually ships in 7-10 business days
43JB-26240-00-00GRIP ASSY$102.99$80.33Usually ships in 7-10 business days
52NU-26311-00-00CABLE, THROTTLE 1$61.99$48.35Usually ships in 7-10 business days
65H0-26393-00-00HOLDER$8.49$7.64Usually ships in 7-10 business days
755U-26335-01-00CABLE, CLUTCH$69.99$54.592 In-Stock
81E6-26342-00-00BOOT, CABLE$33.99$26.514 In-Stock
93JB-2628J-00-00CAP, GRIP$15.49$12.083 In-Stock
1090179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
1190123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
124H7-26290-20-00

(replaces part #
4H7-26290-10-00)

MIRROR ASY LH$155.99$121.67Usually ships in 7-10 business days
134H7-26290-50-00

(replaces part #
4H7-26290-00-00)

MIRROR ASY RH$155.99$121.67Usually ships in 7-10 business days
