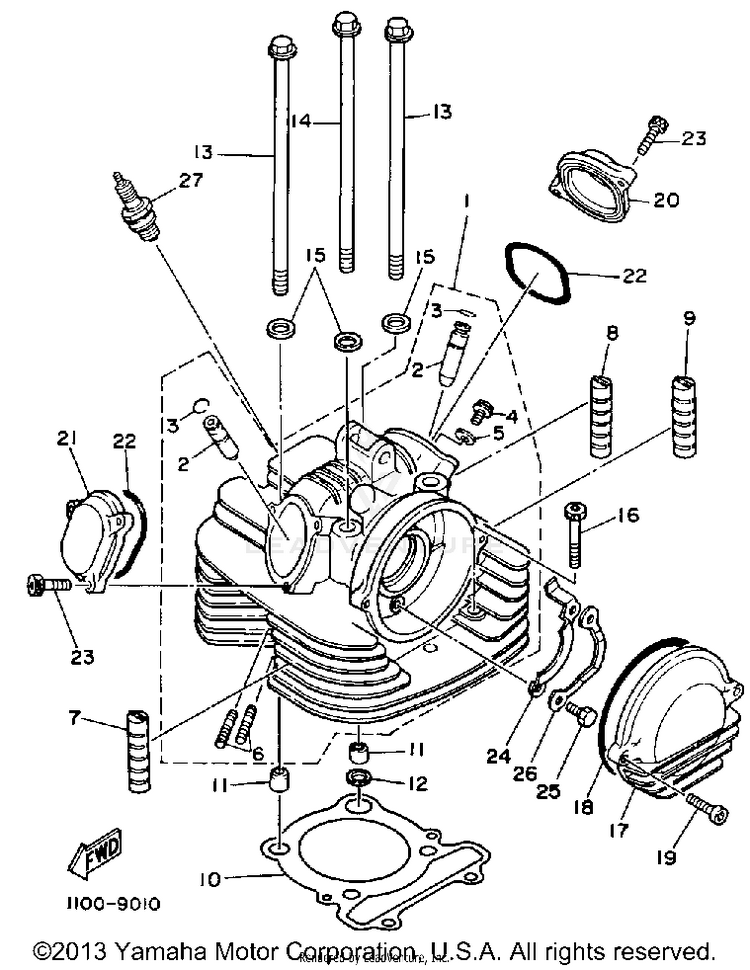

CYLINDER HEAD

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11UY-11110-02-00

(replaces part #
1UY-11110-01-00)

CYLINDER HEAD ASSY$1,017.99$837.98Not Shipping
23Y1-11133-11-00

(replaces part #
3Y1-11133-10-00)

GUIDE, INTAKE VALVE$69.99$54.593 In-Stock
393440-12052-00CIRCLIP$2.60$2.248 In-Stock
490401-06001-00BOLT, UNION$11.49$8.966 In-Stock
590430-06166-00

(replaces part #
90430-06192-00)

GASKET$4.05$3.4810+ In-Stock
690116-06503-00BOLT, STUD$9.49$8.3010+ In-Stock
7583-11127-00-00ABSORBER 3$8.49$6.6210+ In-Stock
8583-11127-00-00ABSORBER 3$8.49$6.6210+ In-Stock
9583-11127-00-00ABSORBER 3$8.49$6.6210+ In-Stock
101UY-11181-01-00

(replaces part #
1UY-11181-00-00)

GASKET, CYLINDER HEAD 1$50.99$39.778 In-Stock
1199530-14016-00PIN, DOWEL A$3.80$3.2710+ In-Stock
1290430-14131-00GASKET$9.49$7.4010+ In-Stock
1390105-10137-00

(replaces part #
90105-10421-00)

BOLT, FLANGE$12.49$9.7410+ In-Stock
1490105-10136-00

(replaces part #
90105-10422-00)

BOLT, FLANGE$12.49$9.7410+ In-Stock
1590201-10128-00WASHER, PLATE$4.05$3.5010+ In-Stock
1691317-08050-00

(replaces part #
91316-08050-00)

BOLT, HEX. SOCKET HEAD$9.49$7.408 In-Stock
173Y1-11185-00-00COVER, CYLINDER HEAD SIDE 1$44.99$36.89Not Shipping
1893211-06635-00O-RING$16.49$12.8610+ In-Stock
1991317-06025-00

(replaces part #
91316-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
203Y1-11186-10-00

(replaces part #
3Y1-11186-00-00)

COVER, CYLINDER HEAD$31.99$26.231 In-Stock
212NL-11187-11-00

(replaces part #
2NL-11187-00-00)

COVER, CYLINDER HEAD SIDE 3$12.99$10.131 In-Stock
2293210-57634-00O-RING$15.49$12.0810+ In-Stock
2391317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
243Y1-1111F-00-00PLATE$8.49$6.622 In-Stock
2597013-06012-00BOLT$6.49$5.0610+ In-Stock
2690215-06162-00WASHER, LOCK$11.49$8.968 In-Stock
27D8E-A0000-00-00

(replaces part #
NGK-D8EA0-00-00)

D8EA NGK SPLUG 10P | UR$4.40$3.7810+ In-Stock
