1991 Yamaha BLASTER 200 Exhaust OEM Parts Diagram

Submodel BLASTER - YFS200B_MN - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

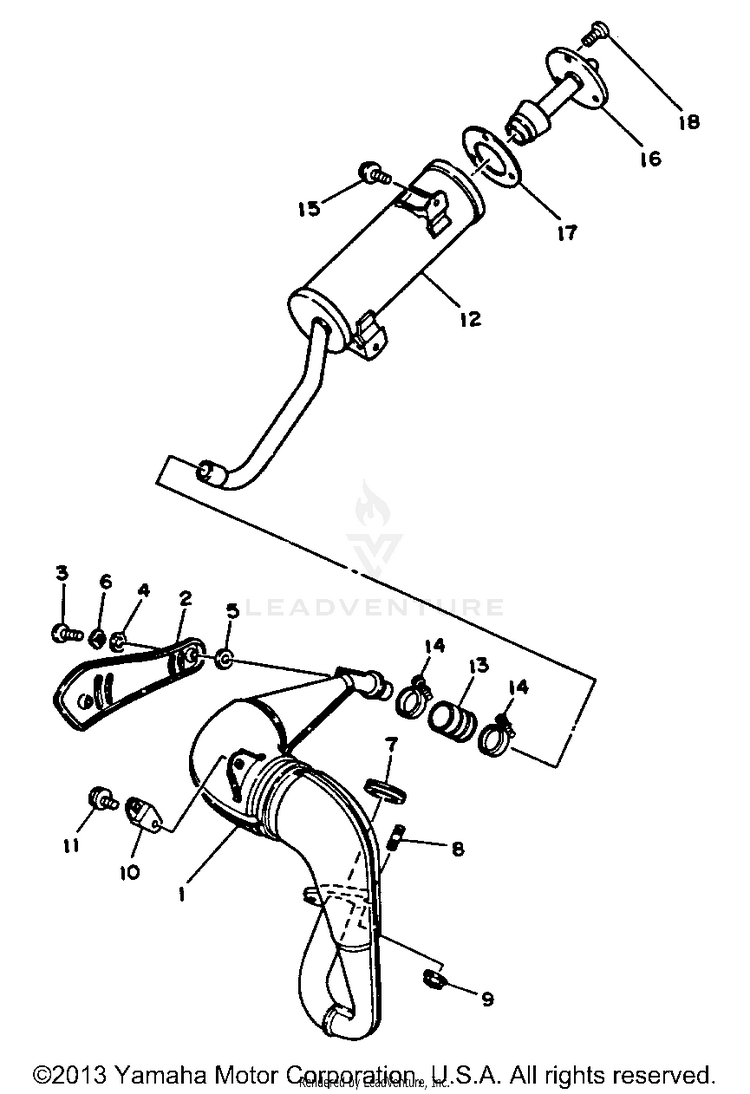

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XJ-14610-00-00EXHAUST PIPE ASSY 1$389.04$303.45Usually ships in 7-10 business days
22XJ-14718-00-00PROTECTOR, MUFFLER 1$38.99$31.97Not Shipping
398907-06010-00

(replaces part #
98906-06010-00)

SCREW, BIND$1.80$1.558 In-Stock
490202-05187-00

(replaces part #
90202-06010-00)

WASHER, PLATE$1.70$1.4610+ In-Stock
530X-14766-00-00WASHER, PROTECTOR$2.20$1.98Not Shipping
690206-06090-00

(replaces part #
90206-06088-00)

WASHER, WAVE$9.49$7.4010+ In-Stock
73PA-14613-10-00

(replaces part #
152-14613-00-00)

GASKET, EXHAUST PIPE$16.49$12.8610+ In-Stock
890116-08042-00BOLT, STUD$10.49$8.187 In-Stock
990179-08270-00NUT$9.49$7.4010+ In-Stock
10565-14771-01-00

(replaces part #
565-14771-00-00)

STAY, MUFFLER 1$19.99$15.5910+ In-Stock
1195817-06012-00

(replaces part #
95816-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
122XJ-14753-00-00SILENCER, EXHAUST$279.99$222.53Usually ships in 7-10 business days
131W2-14714-00-00GASKET, MUFFLER$36.99$28.852 In-Stock
1490460-37130-00

(replaces part #
90450-37022-00)

CLAMP, HOSE$7.99$6.23Not Shipping
1595817-08016-00

(replaces part #
95811-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
162XJ-14752-00-00PIPE, OUTLET$43.99$36.07Not Shipping
172XJ-14755-10-00

(replaces part #
2XJ-14755-00-00)

GASKET, SILENCER$14.49$11.30Not Shipping
1898907-06010-00

(replaces part #
98906-06010-00)

SCREW, BIND$1.80$1.558 In-Stock
