1991 Yamaha XT600 Front Master Cylinder OEM Parts Diagram

Submodel XT600EBC - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

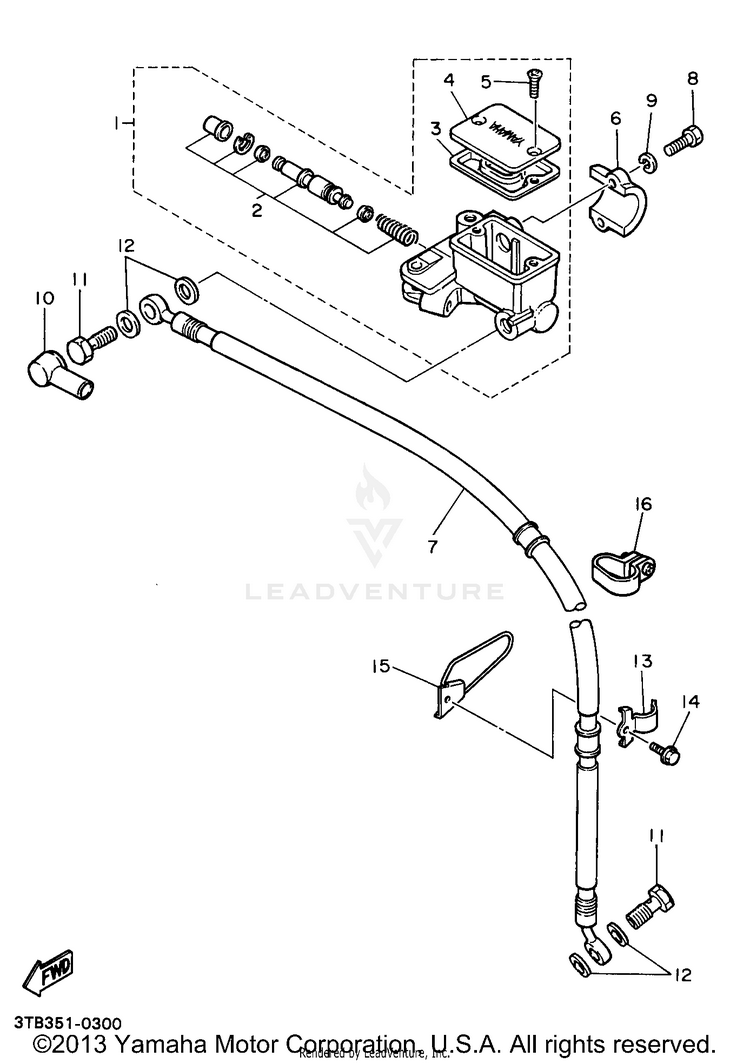

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13TB-25870-00-00MASTER CYLINDER SUB ASSEMBLY$290.99$226.97Usually ships in 7-10 business days
223L-W0041-00-00

(replaces part #
3TB-W0041-00-00)

CYLINDER KIT, MASTER$133.99$104.51Usually ships in 7-10 business days
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
44H7-25852-00-00CAP, RESERVOIR$43.99$34.312 In-Stock
598707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
64L0-25867-00-00BRACKET, MASTER CYLINDER$35.99$29.51Usually ships in 7-10 business days
799999-02429-00

(replaces part #
3TB-25872-01-00)

BRAKE HOSE SET (3TB)$128.99$100.61Usually ships in 7-10 business days
897017-06025-00

(replaces part #
97016-06025-00)

BOLT$4.55$3.9110+ In-Stock
992907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
104L0-25862-02-00

(replaces part #
4L0-25862-00-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
1190401-10159-00

(replaces part #
90401-10034-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1290201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1390461-16124-00CLAMP$4.80$4.32Usually ships in 7-10 business days
1495817-06016-00

(replaces part #
91001-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
153TB-23318-00-00HOLDER, CABLE 1$21.99$18.03Usually ships in 7-10 business days
1699999-02107-00CLAMP$29.99$24.59Usually ships in 7-10 business days
