1991 Yamaha YZ80 Exhaust OEM Parts Diagram

Submodel YZ80B - 1991

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

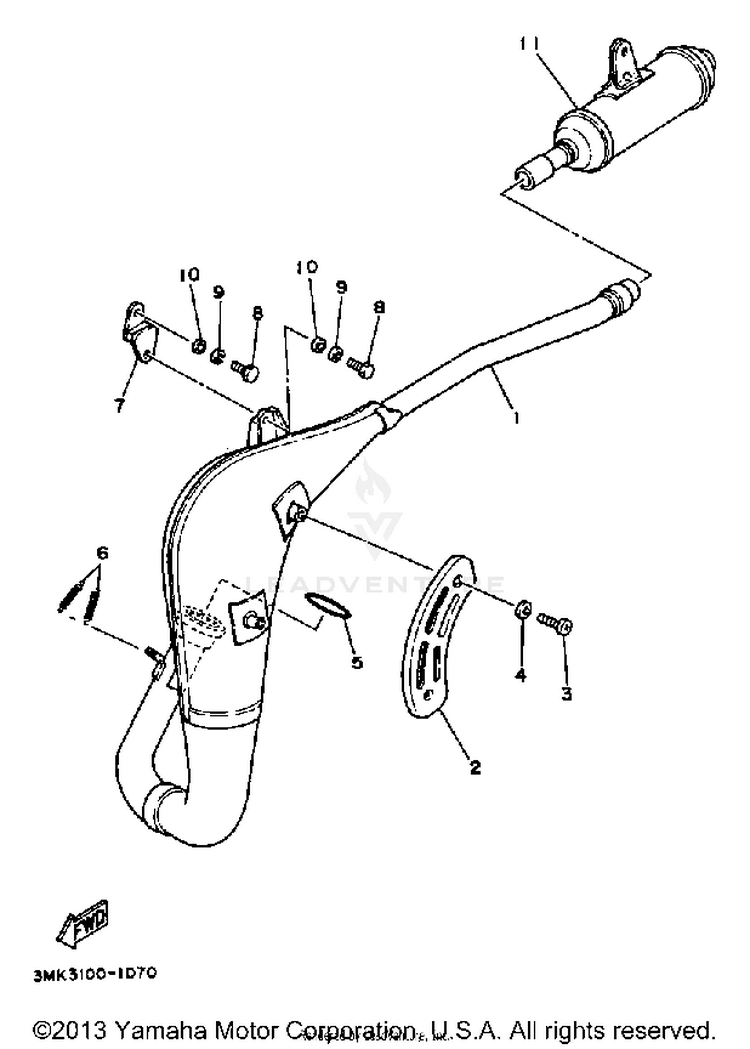

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12HF-14610-01-00EXHAUST PIPE ASSEMBLY LASSEMBLY$365.99$285.47Usually ships in 7-10 business days
239K-14718-00-00PROTECTOR, MUFF 1$120.99$94.37Not Shipping
398907-06008-00

(replaces part #
98906-06008-00)

SCREW, BIND$9.49$7.406 In-Stock
490202-05187-00WASHER, PLATE$1.70$1.4610+ In-Stock
593210-40745-00O-RING$12.49$9.7410+ In-Stock
690507-20030-00SPRING, TENSION$16.49$12.8610+ In-Stock
7565-14771-01-00

(replaces part #
565-14771-00-00)

STAY, MUFFLER 1$19.99$15.5910+ In-Stock
897D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
992995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1092990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
111LR-14753-00-00SILENCER, EXHAUST$297.99$232.43Not Shipping
