1992 Yamaha BADGER 80 Generator OEM Parts Diagram

Submodel BADGER - YFM80D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

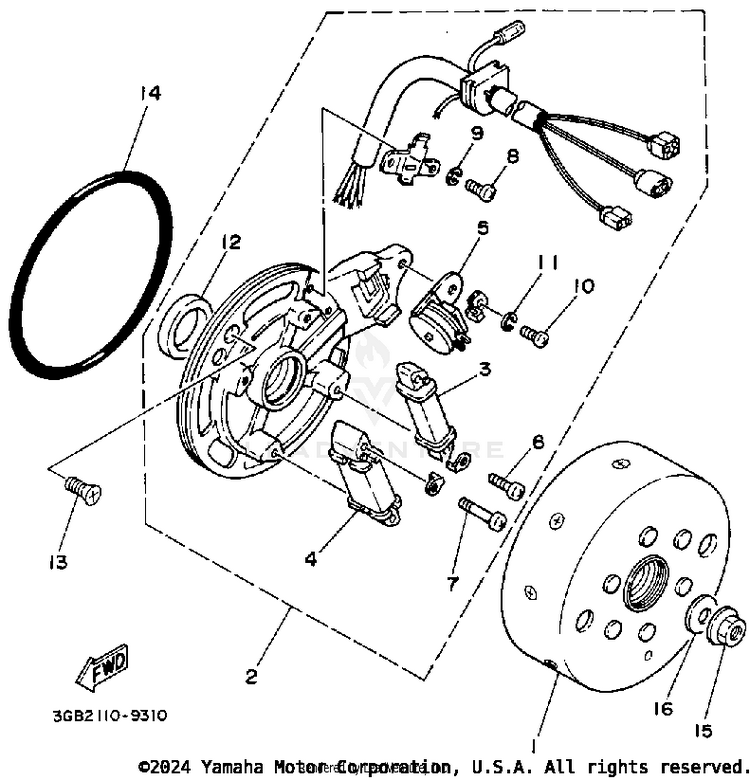

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12FM-85550-M1-00

(replaces part #
2FM-85550-M0-00)

ROTOR ASSY$209.99$163.79Usually ships in 7-10 business days
23GB-85560-10-00BASE ASSEMBLY$283.99$221.51Usually ships in 7-10 business days
35G3-85520-M2-00

(replaces part #
5G3-85520-M1-00)

COIL, CHARGE$50.99$42.20Usually ships in 7-10 business days
455X-81313-M0-00COIL, LIGHTING 1$83.99$65.512 In-Stock
522K-85595-M0-00COIL, PULSER$71.99$56.153 In-Stock
698517-04012-00

(replaces part #
98511-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
798517-04020-00

(replaces part #
98511-04020-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
898517-04006-00

(replaces part #
98511-04006-00)

SCREW, PAN HEAD$4.60$3.9610+ In-Stock
992990-04100-00

(replaces part #
92901-04100-00)

WASHER, SPRING-$1.0210+ In-Stock
1097885-05010-00

(replaces part #
98580-05010-00)

SCREW, PAN HEAD$3.15$2.715 In-Stock
1192990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1293102-19276-00OIL SEAL$12.49$9.744 In-Stock
1398704-06016-00

(replaces part #
98701-06016-00)

SCREW, FLAT HEAD$5.49$4.94Usually ships in 7-10 business days
1493211-02703-00O-RING$12.49$9.7410+ In-Stock
1590179-10394-00NUT,SPEC'L SHAPE$10.49$8.185 In-Stock
1690201-102G9-00WASHER, PLATE$10.49$8.1810+ In-Stock
