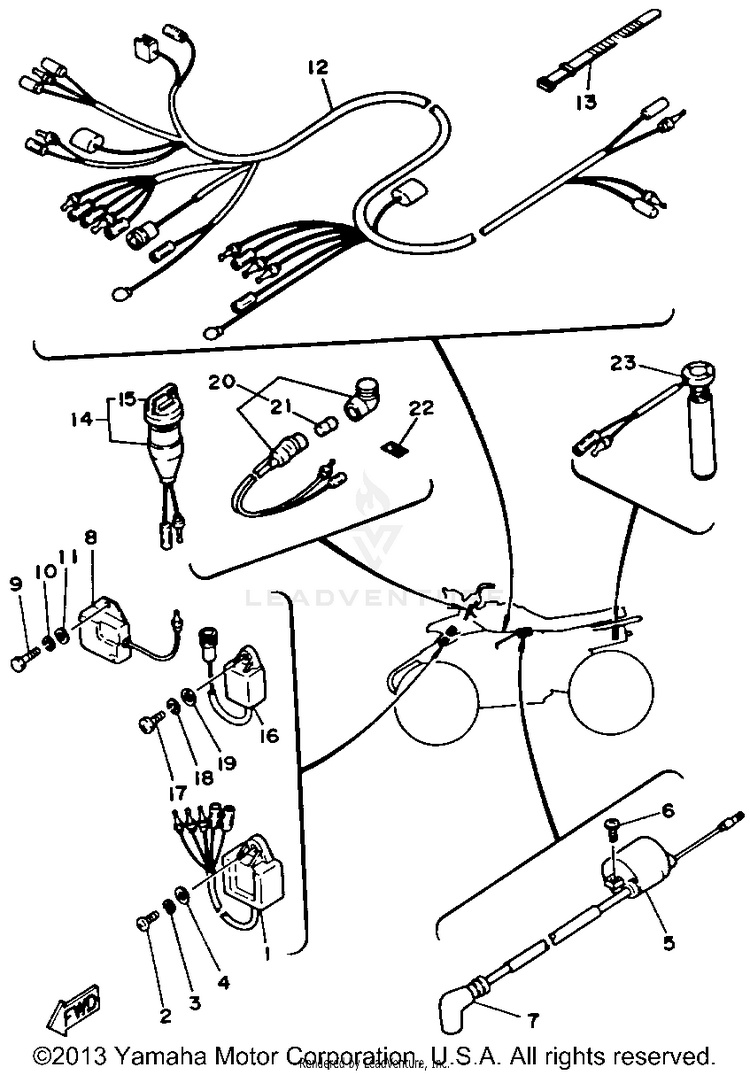

1992 Yamaha BLASTER 200 Electrical OEM Parts Diagram

Submodel BLASTER - YFS200D - 1992

Shop Aftermarket Parts

ELECTRICAL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13FL-85540-10-00

(replaces part #
3FL-85540-00-00)

CDI UNIT ASSY$145.99$113.87Not Shipping
298580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
392995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
492990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
54RP-82310-25-00

(replaces part #
5M0-82310-M0-00)

Ignition Coil Assy$59.99$49.3610+ In-Stock
698580-06016-00

(replaces part #
98502-06016-00)

SCREW, PAN HEAD$3.45$2.972 In-Stock
78DG-82370-00-00

(replaces part #
2TV-82370-00-00)

PLUG CAP ASSY | W/NOISE SUPP.$53.99$42.1110+ In-Stock
8Y06-03963-00-00

(replaces part #
82F-81910-A0-00)

VOLTAGEREGULATORASSY$59.99$47.913 In-Stock
998580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1092995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1192990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
122XJ-82590-00-00WIRE HARNESS ASSEMBLY$191.75$149.56Not Shipping
13437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
142XJ-82510-02-00

(replaces part #
2XJ-82510-01-00)

MAIN SWITCH ASSY$60.99$47.575 In-Stock
153HN-82579-00-00CAP, KEY$15.49$12.0810+ In-Stock
162GU-85590-M0-00CONTROL UNIT ASSEMBLY$116.99$91.25Not Shipping
1798580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1992990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
203FA-83530-10-00

(replaces part #
2XJ-83530-00-00)

PILOT LIGHT ASSEMBLY$27.99$22.95Usually ships in 7-10 business days
212XJ-83516-00-00BULB (12V-3.4W)$10.49$8.60Usually ships in 7-10 business days
224U3-83585-00-00LABEL$5.49$4.94Usually ships in 7-10 business days
232XJ-85720-04-00

(replaces part #
2XJ-85720-01-00)

OIL LEVEL GAUGE ASSY$35.99$29.51Not Shipping
