1992 Yamaha BLASTER 200 Stand Footrest OEM Parts Diagram

Submodel BLASTER - YFS200D_MN - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

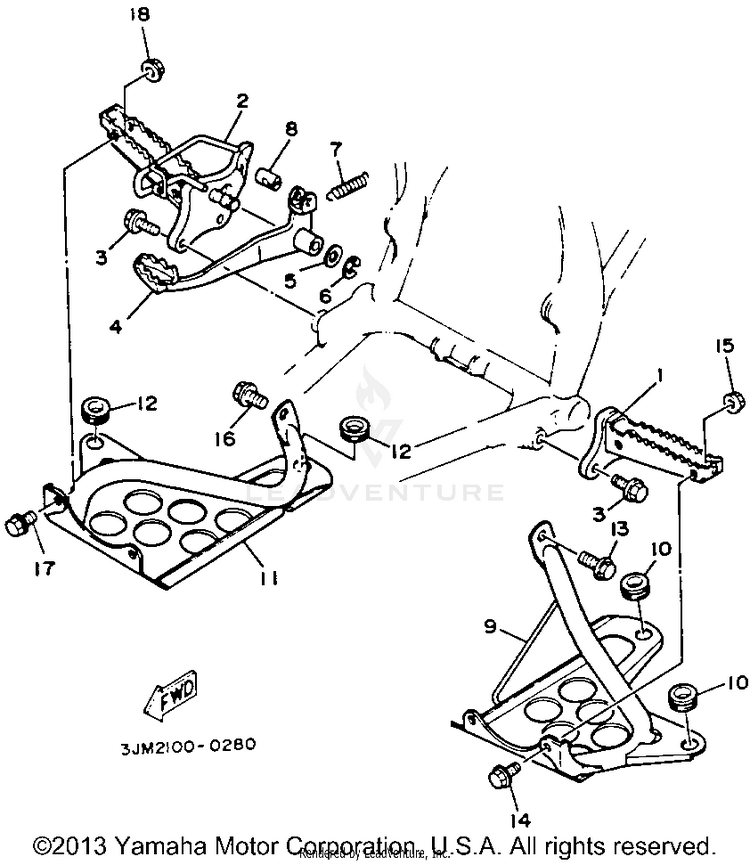

STAND FOOTREST

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13JM-27411-01-00

(replaces part #
3JM-27411-00-00)

FOOTREST 1$64.99$50.69Not Shipping
23JM-27421-01-00

(replaces part #
3JM-27421-00-00)

FOOTREST 2$64.99$50.69Not Shipping
395817-10025-00

(replaces part #
95811-10025-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
43JM-27211-10-00PEDAL BRAKE$60.99$47.57Not Shipping
590201-15797-00WASHER, PLATE$10.49$8.1810+ In-Stock
693430-12008-00CIRCLIP, E-TYPE$9.49$7.4010+ In-Stock
790506-20193-00SPRING, TENSION$16.49$12.862 In-Stock
890249-14202-00PIN$20.99$16.372 In-Stock
93JM-27445-00-00PLATE 1$173.99$135.71Not Shipping
1090480-18411-00GROMMET$12.49$9.7410+ In-Stock
113JM-27446-00-00PLATE 2$175.99$137.27Not Shipping
1290480-18411-00GROMMET$12.49$9.7410+ In-Stock
1395817-08016-00

(replaces part #
95811-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
1492017-08016-00

(replaces part #
92011-08016-00)

BOLT, BUTTON HEAD$6.49$5.0610+ In-Stock
1595704-08500-00

(replaces part #
95701-08500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
1695817-08016-00

(replaces part #
95811-08016-00)

BOLT,FLANGE (JN5)$5.49$4.2810+ In-Stock
1792017-08016-00

(replaces part #
92011-08016-00)

BOLT, BUTTON HEAD$6.49$5.0610+ In-Stock
1895704-08500-00

(replaces part #
95701-08500-00)

NUT, FLANGE$9.49$7.4010+ In-Stock
