1992 Yamaha FZR1000 Steering OEM Parts Diagram

Submodel FZR1000DC - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

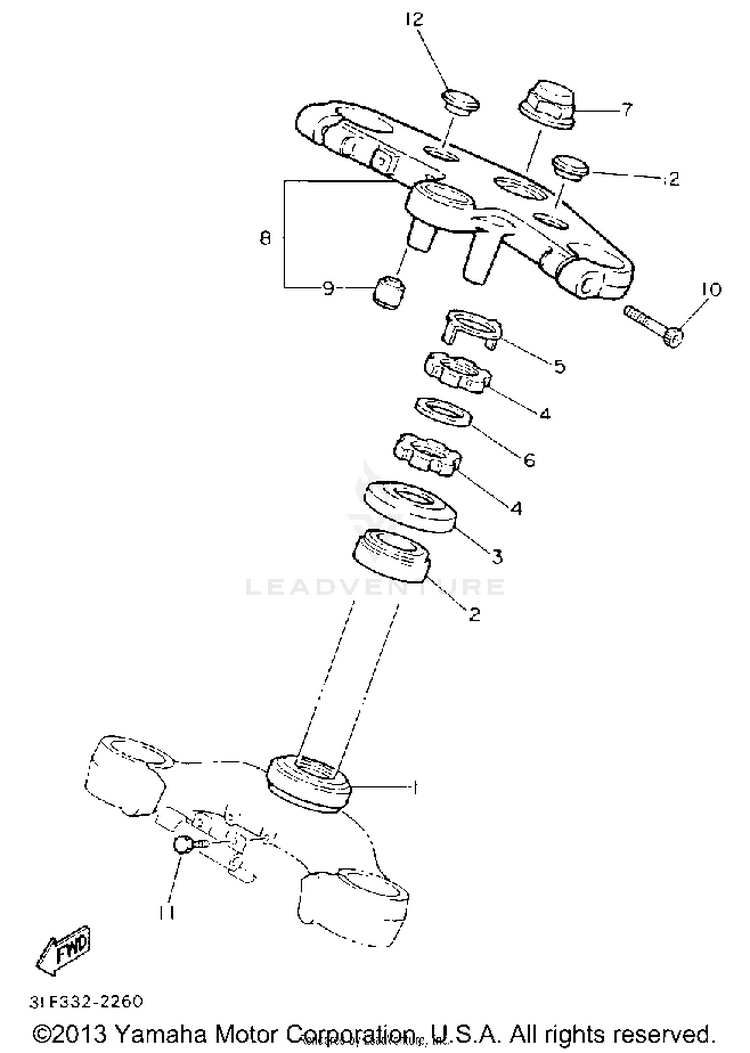

STEERING

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00008-00BEARING$73.99$57.714 In-Stock
293332-00001-00BEARING$63.99$49.913 In-Stock
33GM-23415-00-00COVER, BALL RACE 1$11.49$9.42Usually ships in 7-10 business days
490179-25004-00

(replaces part #
90179-25033-00)

NUT$26.99$21.055 In-Stock
526H-23418-01-00WASHER, SPECIAL$15.49$12.702 In-Stock
690202-26142-00WASHER, PLATE$10.49$8.187 In-Stock
790176-22081-00

(replaces part #
90176-22050-00)

NUT, CROWN$37.99$31.15Usually ships in 7-10 business days
83GM-W2341-50-00CROWN, HANDLE$236.99$184.85Usually ships in 7-10 business days
936Y-27414-00-00

(replaces part #
1UF-27414-00-00)

DAMPER, FOOTREST$30.99$25.41Usually ships in 7-10 business days
1091314-08030-00

(replaces part #
91311-08030-00)

BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
1191317-06020-00

(replaces part #
91316-06020-00)

BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
123GM-23437-00-00COVER, CROWN$13.99$11.47Usually ships in 7-10 business days
