1992 Yamaha RT100 Crankcase Cover 1 OEM Parts Diagram

Submodel RT100D - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

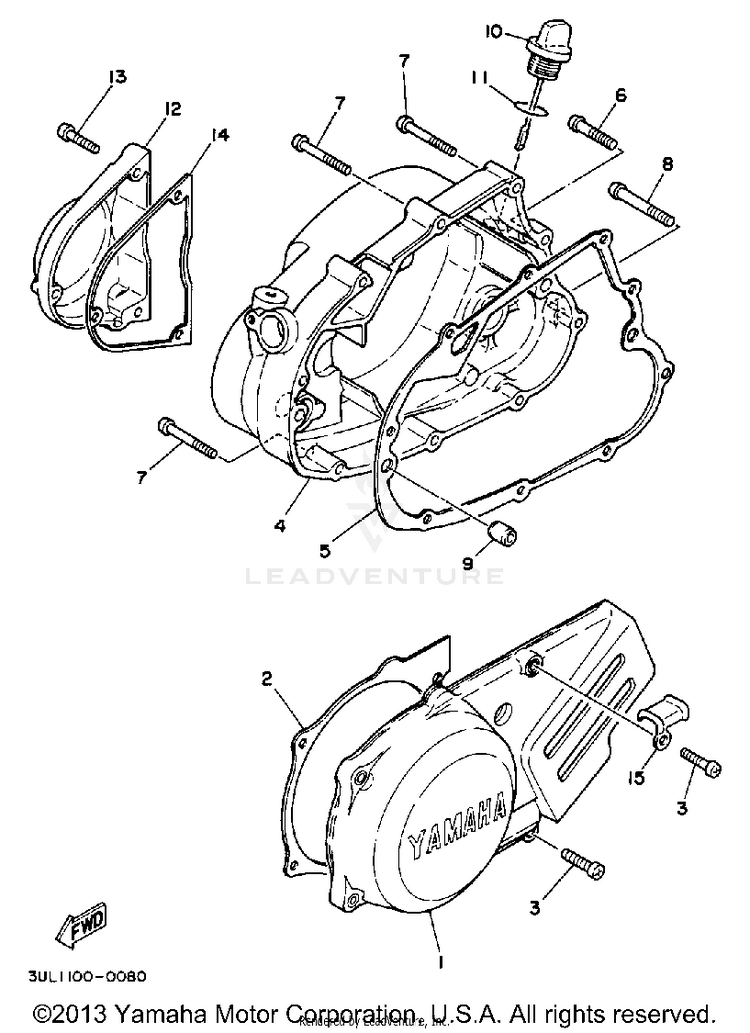

CRANKCASE COVER 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
123F-15411-00-00COVER, CRANKCASE 1$66.99$52.25Not Shipping
23UL-15455-00-00GASKET 1$24.99$19.491 In-Stock
398517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
4401-15431-00-00COVER, CRANKCASE 3$166.99$130.25Usually ships in 7-10 business days
53UL-15451-00-00

(replaces part #
401-15451-00-00)

GASKET, CRANKCASE COVER 1$22.99$17.935 In-Stock
697885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
798580-06040-00SCREW, PAN HEAD$9.49$7.408 In-Stock
898580-06545-00SCREW, PAN HEAD (92503-06045-00$6.49$5.4910+ In-Stock
999530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
10401-15362-00-00PLUG, OIL LEVEL$20.99$17.21Not Shipping
1193210-19123-00O-RING$8.99$7.0110+ In-Stock
121X0-15416-00-00COVER, OIL PUMP$42.99$35.25Not Shipping
1398517-06025-00

(replaces part #
98511-06025-00)

SCREW, PAN HEAD$4.05$3.4810+ In-Stock
143UL-15456-01-00

(replaces part #
3UL-15456-00-00)

GASKET, OIL PUMP COVER 1$12.99$10.131 In-Stock
1590461-10016-00CLAMP$7.99$7.19Not Shipping
