CRANKCASE

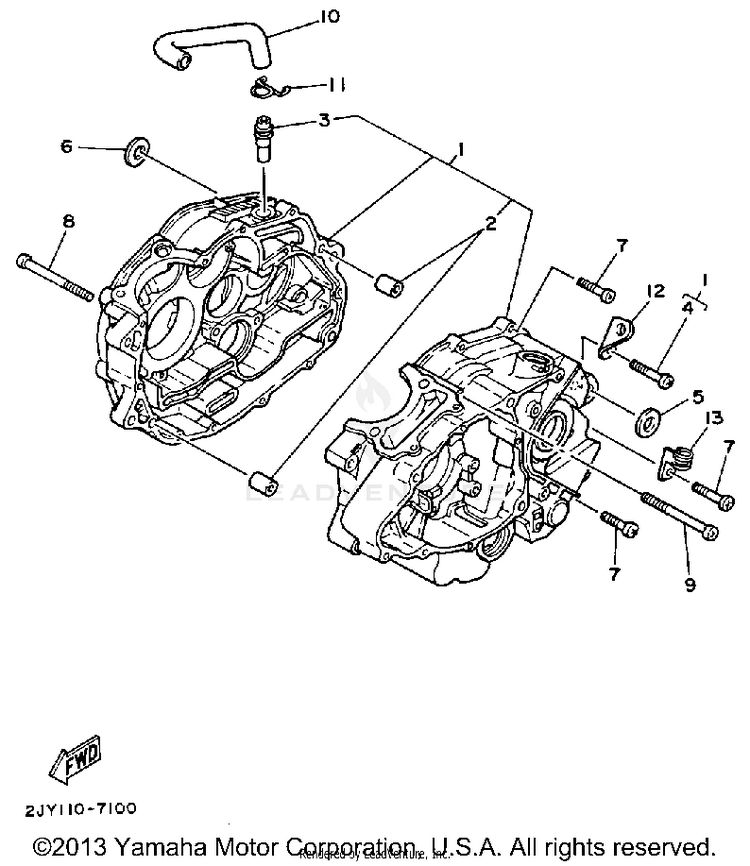

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
199999-03070-00

(replaces part #
3AW-15100-00-00)

CRANKCASE ASSY$597.99$466.43Usually ships in 7-10 business days
299530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
3371-11167-01-00PIPE, BREATHER 2$14.49$11.301 In-Stock
498507-06040-00

(replaces part #
98506-06040-00)

SCREW, PAN HEAD$3.22$2.779 In-Stock
590387-125F1-00COLLAR$4.60$4.14Usually ships in 7-10 business days
690387-125F1-00COLLAR$4.60$4.14Usually ships in 7-10 business days
798517-06030-00

(replaces part #
98516-06030-00)

SCREW, PAN HEAD$3.45$2.97
898507-06090-00

(replaces part #
98506-06090-00)

SCREW, PAN HEAD$10.49$8.182 In-Stock
998507-06085-00

(replaces part #
98506-06085-00)

SCREW, PAN HEAD$6.99$6.29Usually ships in 7-10 business days
103Y1-11166-00-00PIPE, BREATHER 1$25.99$21.31Usually ships in 7-10 business days
1190467-14015-00CLIP$9.49$7.407 In-Stock
1290465-08200-00CLAMP$4.70$4.23Usually ships in 7-10 business days
1390462-06080-00CLAMP$15.49$12.70Usually ships in 7-10 business days
