1992 Yamaha XT225 Serow Headlight OEM Parts Diagram

Submodel SEROW - XT225DC - 1992

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

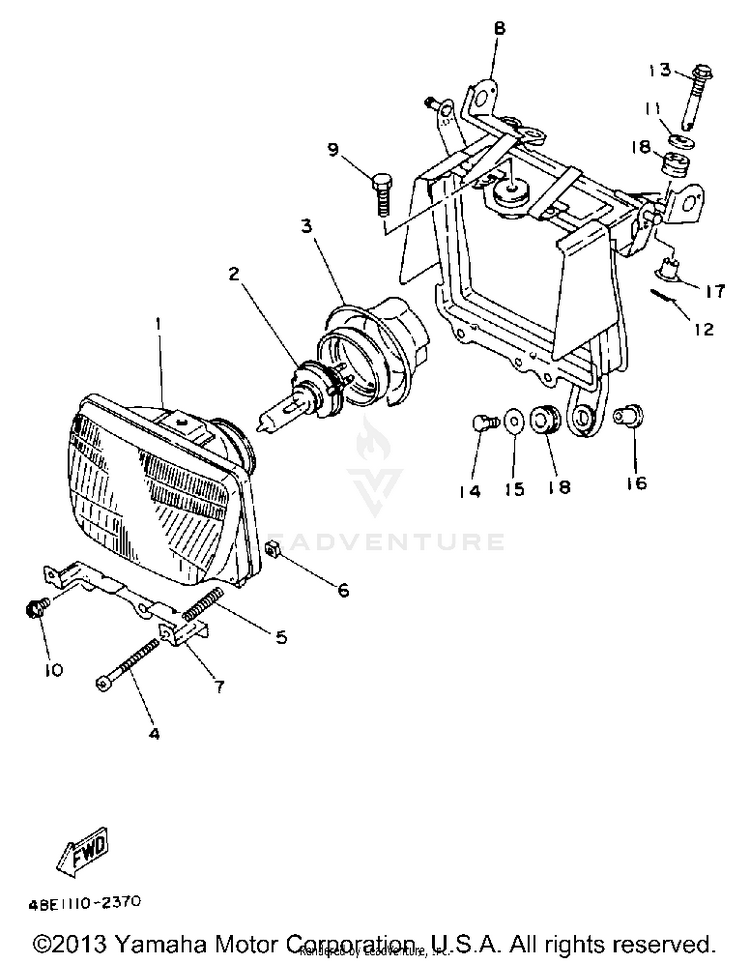

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BE-84320-00-00LENS ASSEMBLY$137.99$107.63Usually ships in 7-10 business days
21ML-84314-00-XXBULB, HEADLIGHT | HALOGEN$18.99$14.81Not Shipping
32F9-84397-01-00COVER, SOCKET$33.99$27.87Usually ships in 7-10 business days
43TB-84325-00-00SCREW, RIM FITTING$5.49$4.94Usually ships in 7-10 business days
5341-84332-60-00SPRING, SCREW$10.99$8.576 In-Stock
6198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
73TB-8431R-00-00STAY, SETTING$19.49$15.98Usually ships in 7-10 business days
84BE-84311-00-00BODY, HEADLIGHT$139.99$109.19Usually ships in 7-10 business days
93TB-84372-01-00BOLT, LAMP STAY$2.75$2.48Usually ships in 7-10 business days
103TB-84329-00-00BOLT, WING 1$2.25$2.02Usually ships in 7-10 business days
1190202-06013-00WASHER, PLATE$1.95$1.76Usually ships in 7-10 business days
1290468-12120-00CLIP$9.49$8.54Usually ships in 7-10 business days
133TB-84137-00-00BOLT, SPECIAL$21.99$18.03Usually ships in 7-10 business days
1497017-06025-00

(replaces part #
97016-06025-00)

BOLT$4.55$3.9110+ In-Stock
1590201-06057-00

(replaces part #
90201-06059-00)

WASHER, PLATE$6.49$5.067 In-Stock
1690387-06158-00

(replaces part #
90387-06388-00)

COLLAR$9.49$7.4010+ In-Stock
1790387-07391-00COLLAR$10.49$8.1810+ In-Stock
1890480-14023-00GROMMET$8.49$6.6210+ In-Stock
