1993 Yamaha BLASTER 200 Rear Shocks OEM Parts Diagram

Submodel BLASTER - YFS200E_MN - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

REAR SHOCKS

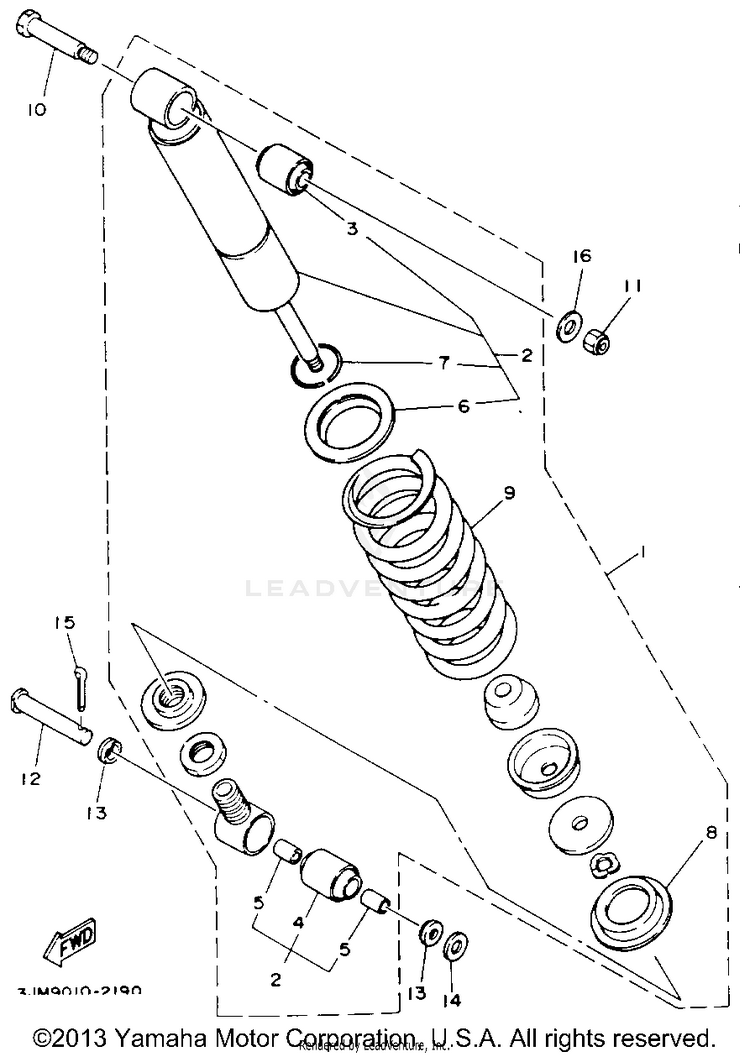

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12XJ-22210-20-P1

(replaces part #
2XJ-22210-10-P1)

SHK/ABS ASSY, REAR | VIVID MAGENTA SOLID 2$337.99$263.63Usually ships in 7-10 business days
22XJ-22201-20-00DAMPER SUB ASSEMBLY$374.99$292.49Usually ships in 7-10 business days
31NU-22216-00-00BUSH, REAR SHOCK ABSORBER$41.99$34.43Usually ships in 7-10 business days
41NU-22226-00-00BUSH, SHOCK ABSORBER LOWE$38.99$31.97Not Shipping
590380-12051-00BUSH, SOLID$17.49$13.645 In-Stock
622W-22223-00-00SEAT, SPRING LOWER$22.99$19.58Usually ships in 7-10 business days
793440-42101-00CIRCLIP$3.10$2.79Usually ships in 7-10 business days
83P6-22214-10-00

(replaces part #
22W-22214-01-00)

GUIDE, SPRING 1$18.99$15.574 In-Stock
92XJ-22212-00-P2

(replaces part #
2XJ-22212-00-P1)

SPRING | VIVID MAGENTA SOLID 2$203.99$159.11Usually ships in 7-10 business days
1090109-10736-00BOLT$8.49$6.62Not Shipping
1195617-10100-00

(replaces part #
95601-10100-00)

NUT, U$9.49$7.405 In-Stock
1290240-12092-00PIN, CLEVIS$11.49$8.963 In-Stock
131W1-22128-00-00COVER, THRUST 1$20.99$16.3710+ In-Stock
1492990-12600-00WASHER, PLATE$9.49$7.403 In-Stock
1591490-30030-00

(replaces part #
91401-30030-00)

PIN, COTTER$8.49$6.6210+ In-Stock
1690201-102G9-00WASHER, PLATE$10.49$8.1810+ In-Stock
