1993 Yamaha BREEZE 125 Crankcase Cover 1 OEM Parts Diagram

Submodel BREEZE - YFA1E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

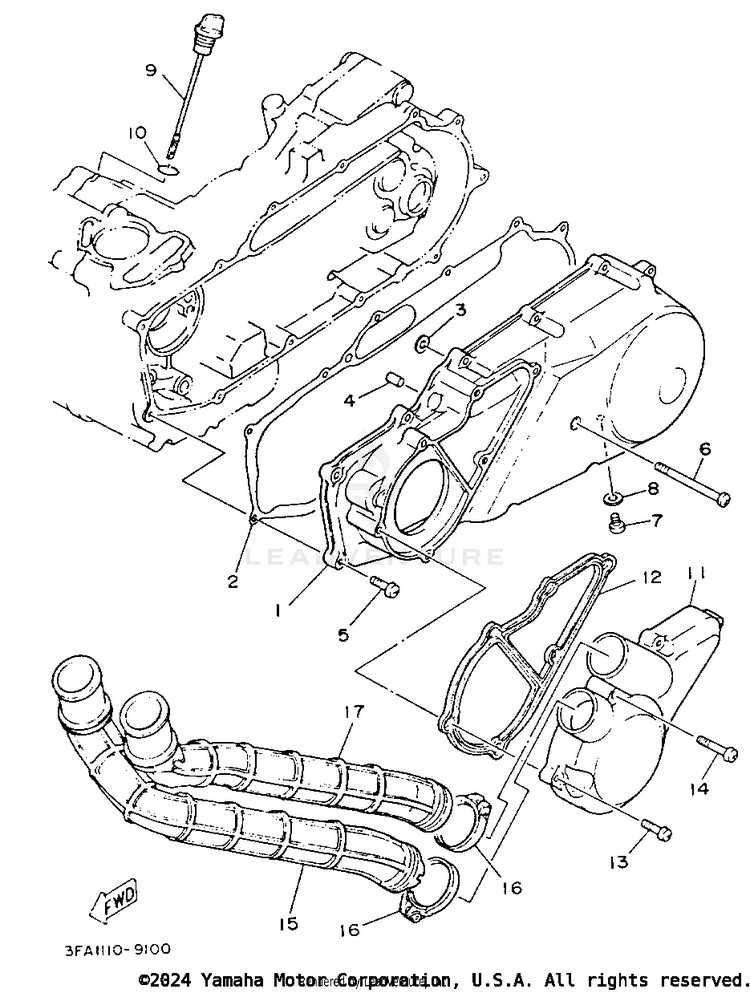

CRANKCASE COVER 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13FA-15411-00-00COVER, CRANKCASE 1$199.99$158.55Usually ships in 7-10 business days
23FA-15451-11-00

(replaces part #
3FA-15451-10-00)

GASKET, CRANKCASE COVER 1$22.99$22.935 In-Stock
33FA-15467-00-00GASKET$7.49$5.843 In-Stock
499530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
597885-06030-00

(replaces part #
98580-06030-00)

SCREW, PAN HEAD$5.49$4.3810+ In-Stock
698504-06090-00

(replaces part #
98501-06090-00)

SCREW, PAN HEAD$4.45$4.00Usually ships in 7-10 business days
797885-06008-00

(replaces part #
98580-06008-00)

SCREW, PAN HEAD$1.20$1.032 In-Stock
890201-06630-00WASHER, PLATE$3.95$3.4010+ In-Stock
93FA-15362-00-00PLUG, OIL LEVEL$31.99$26.23Usually ships in 7-10 business days
1093210-19123-00O-RING$8.99$7.0110+ In-Stock
113FA-15471-00-00DUCT, AIR$65.99$51.47Usually ships in 7-10 business days
123FA-15472-00-00SEAL, AIR DUCT$25.99$20.272 In-Stock
1398517-06030-00

(replaces part #
98516-06030-00)

SCREW, PAN HEAD$3.45$2.97
1498507-06045-00

(replaces part #
98506-06045-00)

SCREW, PAN HEAD$3.40$2.9210+ In-Stock
153FA-15475-00-00DUCT, AIR$49.99$40.99Usually ships in 7-10 business days
1690450-54008-00

(replaces part #
90460-54137-00)

HOSE CLAMP ASSY$8.49$6.626 In-Stock
173FA-15477-00-00DUCT, AIR$43.99$36.07Usually ships in 7-10 business days
