1993 Yamaha FZR600 Shift Cam - Fork OEM Parts Diagram

Submodel FZR600REC - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SHIFT CAM - FORK

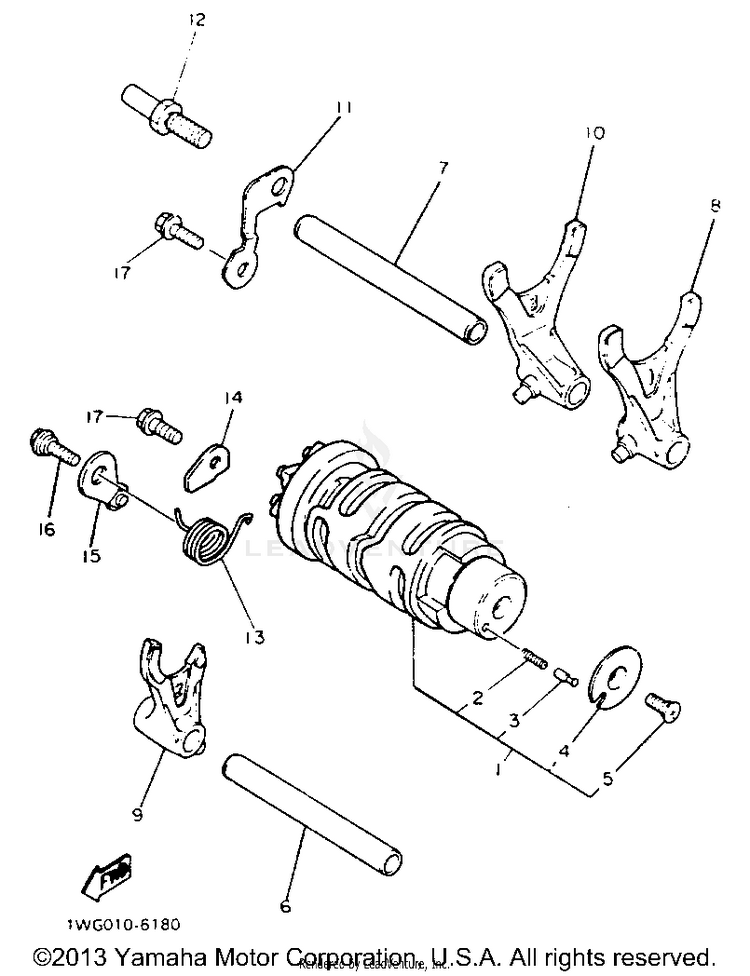

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WG-18540-03-00

(replaces part #
1WG-18540-01-00)

SHIFT CAM ASY$190.99$148.97Usually ships in 7-10 business days
290501-06022-00SPRING, COMPRESSION$9.49$7.4010+ In-Stock
34UN-18542-00-00

(replaces part #
278-18542-00-00)

POINT, NEUTRAL$9.49$7.4010+ In-Stock
4278-18566-00-00PLATE, SIDE 2$6.99$6.29Usually ships in 7-10 business days
598707-05012-00

(replaces part #
98701-05012-00)

SCREW, COUNTERSUNK$1.85$1.8410+ In-Stock
61WG-18531-01-00BAR, SHIFT FORK GUIDE 1$30.99$25.41Usually ships in 7-10 business days
71WG-18535-01-00BAR, SHIFT FORK GUIDE 2$25.99$21.31Usually ships in 7-10 business days
81WG-18511-00-00FORK, SHIFT 1$63.99$49.91Usually ships in 7-10 business days
91WG-18512-00-00FORK, SHIFT 2$63.99$49.91Usually ships in 7-10 business days
101WG-18513-00-00FORK, SHIFT 3$63.99$49.91Usually ships in 7-10 business days
111WG-18536-00-00STOPPER, SHIFT BAR$6.49$5.84Usually ships in 7-10 business days
121HX-18127-00-00STOPPER, SCREW$6.99$6.29Usually ships in 7-10 business days
1390508-23707-00SPRING, TORSION$7.49$6.74Usually ships in 7-10 business days
141WG-18562-00-00PLATE, STOPPER 2$5.49$4.94Usually ships in 7-10 business days
1536Y-18140-00-00STOPPER LEVER ASSY$25.99$21.31Usually ships in 7-10 business days
1690109-06190-00

(replaces part #
90109-063F7-00)

BOLT$5.99$4.6710+ In-Stock
1795817-06016-00

(replaces part #
95811-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
