1993 Yamaha RT100 Handlebar-Cable OEM Parts Diagram

Submodel RT100E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLEBAR-CABLE

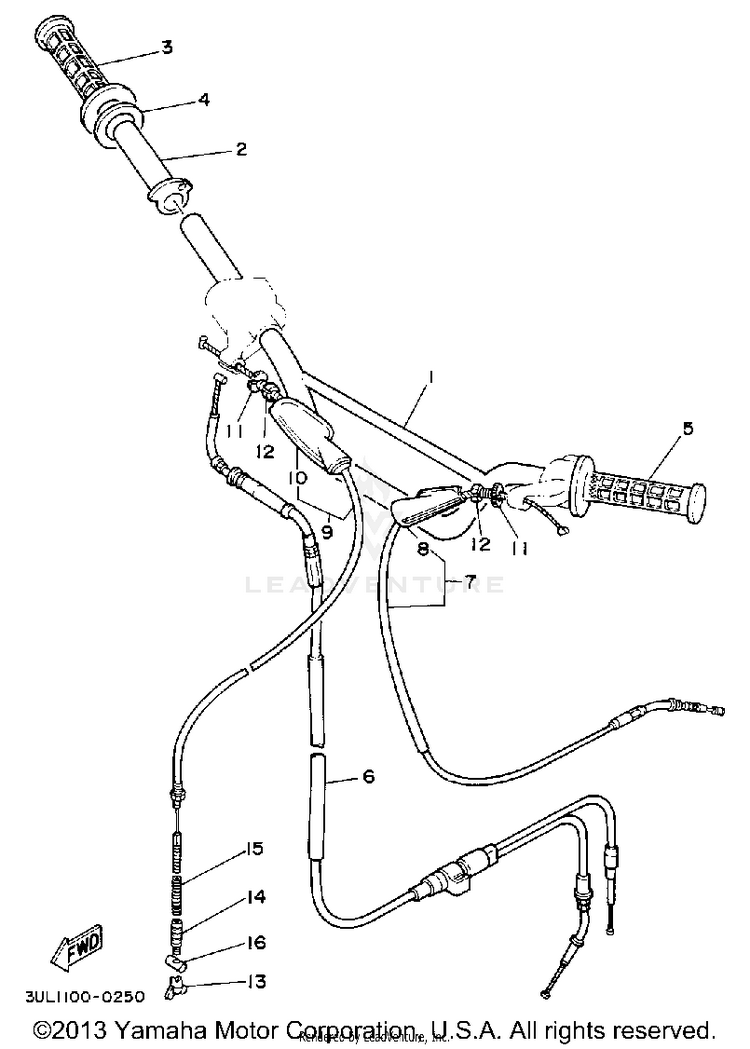

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
117W-26111-01-00HANDLEBAR$60.99$47.57Usually ships in 7-10 business days
2434-26243-00-00TUBE, THROTTLE GUIDE$54.99$42.8910+ In-Stock
333G-26242-01-00

(replaces part #
33G-26242-00-00)

GRIP RH$14.49$11.881 In-Stock
41M1-26249-01-00RING, LEAF$8.49$6.628 In-Stock
533G-26241-01-00

(replaces part #
33G-26241-00-00)

GRIP$22.99$18.85Usually ships in 7-10 business days
63UL-26301-11-00

(replaces part #
3UL-26301-00-00)

THROTTLE CABLE ASSY$56.99$44.453 In-Stock
73M1-26335-10-00

(replaces part #
3M1-26335-00-00)

CABLE, CLUTCH$53.99$42.112 In-Stock
8498-26372-00-00

(replaces part #
382-26372-01-00)

COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
93UL-26341-10-00

(replaces part #
3UL-26341-00-00)

CABLE, BRAKE$25.99$21.31Not Shipping
10498-26372-00-00COVER, HANDLE LEVER 1$34.99$27.296 In-Stock
1190179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
1290123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
1390179-06411-00NUT, SPECIAL SHAPE$9.49$7.409 In-Stock
143M7-26342-00-00BOOT, CABLE$9.49$8.54Usually ships in 7-10 business days
1590501-09052-00SPRING, COMPRESSION$2.50$2.25Usually ships in 7-10 business days
1690249-12008-00PIN, SPECIAL SHAPE$9.49$7.4010+ In-Stock
