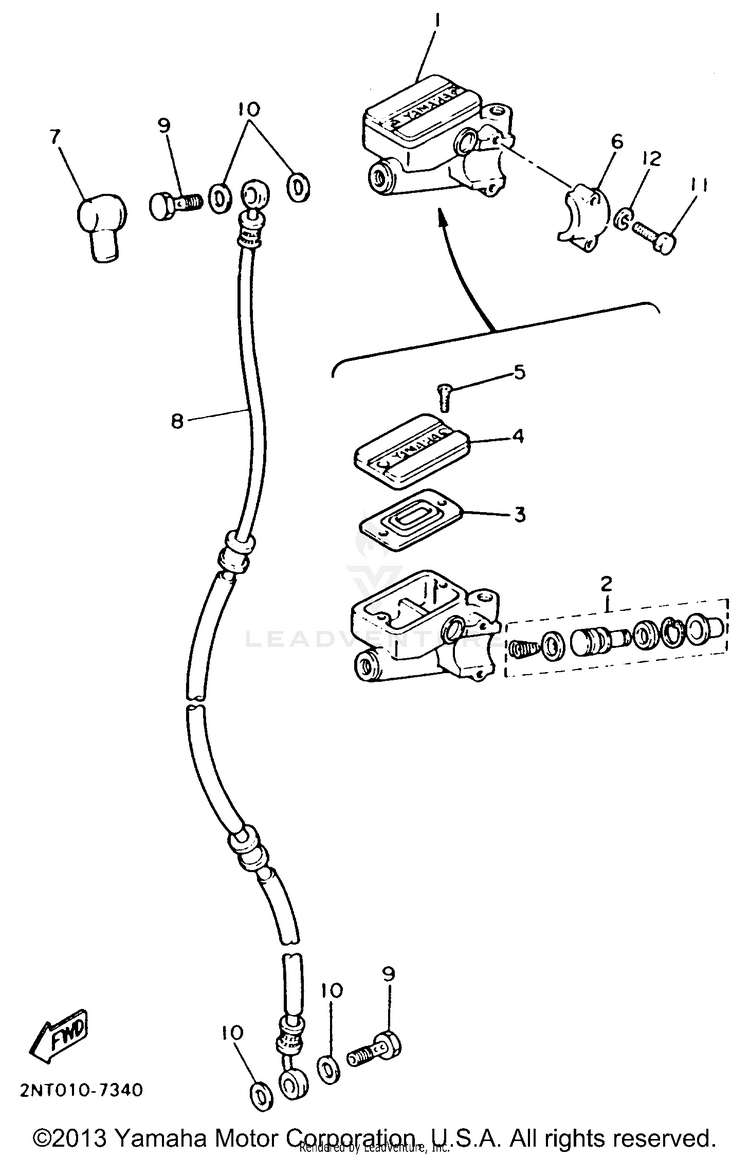

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14H7-25850-02-00MASTER CYLINDER ASSEMBLY$283.99$236.16Not Shipping
24H7-W0041-00-00CYLINDER KIT, MASTER$96.99$75.65Usually ships in 7-10 business days
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
44H7-25852-00-00CAP, RESERVOIR$43.99$34.312 In-Stock
598707-04012-00

(replaces part #
98706-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
64L0-25867-00-00BRACKET, MASTER CYLINDER$35.99$29.51Usually ships in 7-10 business days
74L0-25862-02-00

(replaces part #
4L0-25862-00-00)

BOOT, MASTER CYLINDER-$4.983 In-Stock
899999-02512-00

(replaces part #
2GV-25872-01-00)

BRAKE HOSE SET(4FT)$130.99$102.17Usually ships in 7-10 business days
990401-10159-00

(replaces part #
90401-10096-00)

BOLT, UNION$12.49$9.7410+ In-Stock
1090201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
1197017-06025-00

(replaces part #
97016-06025-00)

BOLT$4.55$3.9110+ In-Stock
1292907-06100-00

(replaces part #
92906-06100-00)

WASHER, SPRING$1.30$1.1210+ In-Stock
