1993 Yamaha YZ125 Side Cover OEM Parts Diagram

Submodel YZ125E - 1993

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER

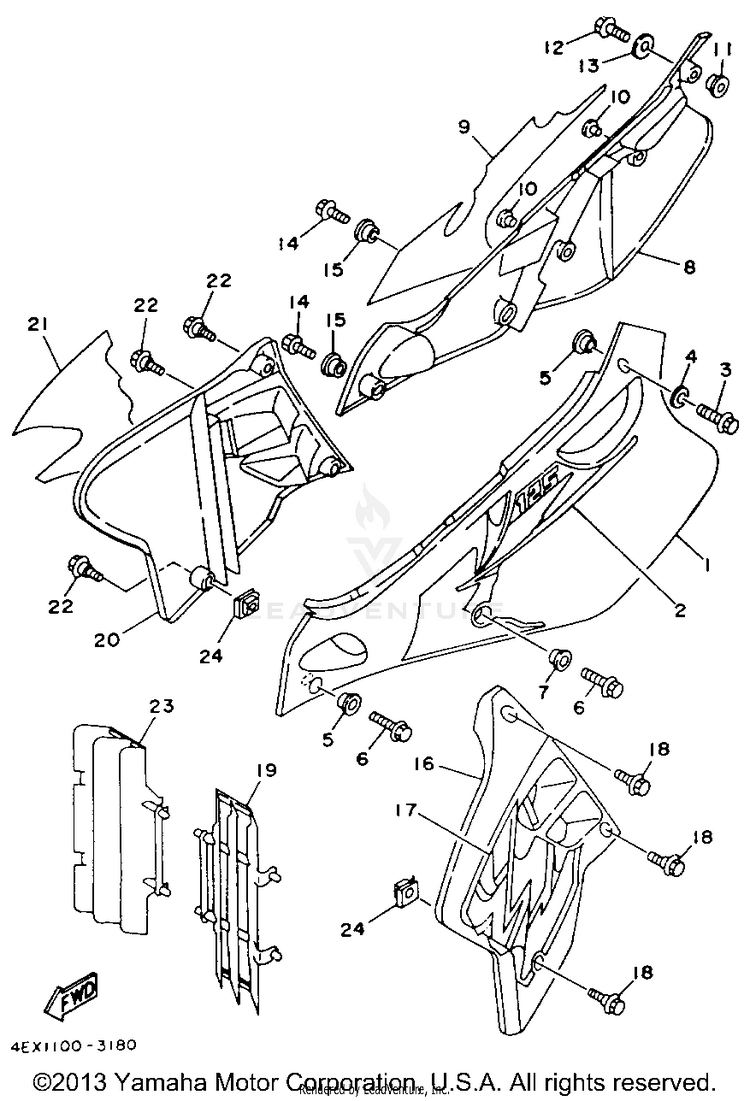

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14EW-21711-01-00

(replaces part #
4EW-21711-00-00)

COVER, SIDE 1$52.99$41.33Usually ships in 7-10 business days
24EX-2173E-01-00GRAPHIC 1$67.99$53.03Usually ships in 7-10 business days
395024-06020-00

(replaces part #
95023-06020-00)

BOLT, FLANGE (SMALL HEAD)$6.49$5.069 In-Stock
490201-06045-00

(replaces part #
90201-06643-00)

WASHER, PLATE$9.49$7.409 In-Stock
590387-06009-00

(replaces part #
90387-0600F-00)

COLLAR$11.49$8.9610+ In-Stock
695024-06012-00

(replaces part #
95023-06012-00)

BOLT, FLANGE (SMALL HEAD)$4.75$4.0810+ In-Stock
790387-06009-00

(replaces part #
90387-0600F-00)

COLLAR$11.49$8.9610+ In-Stock
84EW-21721-01-00

(replaces part #
4EW-21721-00-00)

COVER, SIDE 2$52.66$41.07Usually ships in 7-10 business days
94EX-2173F-01-00GRAPHIC 2$67.99$53.03Usually ships in 7-10 business days
1022W-24181-00-00DAMPER, LOCATING 1$7.49$5.8410+ In-Stock
1190387-06009-00

(replaces part #
90387-0600F-00)

COLLAR$11.49$8.9610+ In-Stock
1295024-06020-00

(replaces part #
95023-06020-00)

BOLT, FLANGE (SMALL HEAD)$6.49$5.069 In-Stock
1390201-06045-00

(replaces part #
90201-06643-00)

WASHER, PLATE$9.49$7.409 In-Stock
1495024-06012-00

(replaces part #
95023-06012-00)

BOLT, FLANGE (SMALL HEAD)$4.75$4.0810+ In-Stock
1590387-06009-00

(replaces part #
90387-0600F-00)

COLLAR$11.49$8.9610+ In-Stock
164EW-21731-00-00COVER, SIDE 3$55.70$43.45Not Shipping
174EW-21783-01-00EMBLEM 3$37.99$31.15Not Shipping
1890109-067F4-00BOLT$10.49$8.1810+ In-Stock
194EW-2172A-00-00PANEL 1$83.99$65.515 In-Stock
204EW-21741-00-00COVER, SIDE 4$86.99$67.85Not Shipping
214EW-21784-01-00EMBLEM 4$37.99$31.15Not Shipping
2290109-067F4-00BOLT$10.49$8.1810+ In-Stock
234EW-2172A-00-00PANEL 1$83.99$65.515 In-Stock
2490183-06069-00NUT, SPRING$7.49$5.8410+ In-Stock
