1994 Yamaha BANSHEE 350 Electrical 1 OEM Parts Diagram

Submodel BANSHEE - YFZ350F - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

ELECTRICAL 1

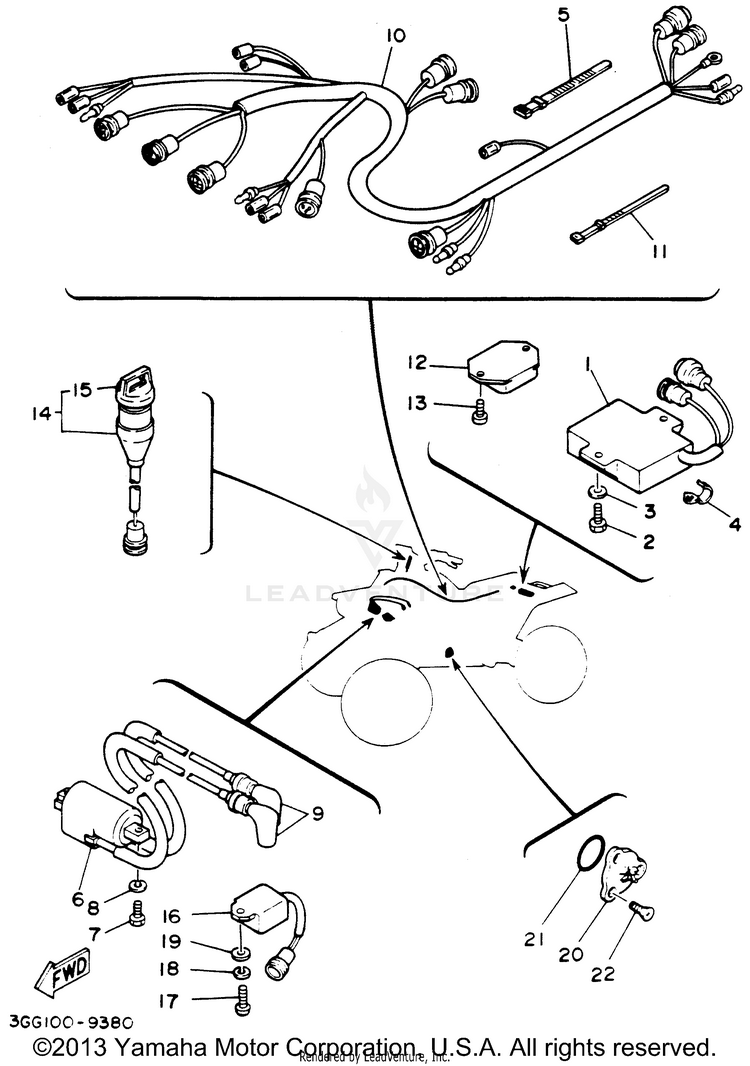

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-85540-51-00C.D.I. UNIT ASSEMBLY$446.99$348.65Not Shipping
297D95-06016-00

(replaces part #
97313-06016-00)

BOLT, HEXAGON DEEP R$2.76$2.3710+ In-Stock
392990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
490462-08078-00CLAMP$6.49$5.063 In-Stock
5437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
63LC-82310-01-00

(replaces part #
2GU-82310-50-00)

IGNITION COIL ASSY$226.99$177.058 In-Stock
AFTERMARKET ALTERNATIVE
$29.99$24.9910+ In-Stock
797017-06020-00

(replaces part #
97011-06020-00)

BOLT$4.06$3.4910+ In-Stock
892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
98DG-82370-00-00

(replaces part #
81E-82370-20-00)

PLUG CAP ASSY | W/NOISE SUPPRESSOR$53.99$42.1110+ In-Stock
102GU-82590-10-00WIRE HARNESS ASSEMBLY$241.99$188.75Not Shipping
11437-83936-11-00BAND, SWITCH CORD$5.00$4.3010+ In-Stock
12Y06-03963-00-00

(replaces part #
82F-81910-A0-00)

VOLTAGEREGULATORASSY$59.99$47.913 In-Stock
1390109-06557-00BOLT$3.10$2.677 In-Stock
141UY-82510-09-00

(replaces part #
1UY-82510-02-00)

MAIN SWITCH ASSY$97.99$76.432 In-Stock
153HN-82579-00-00CAP, KEY$15.49$12.0810+ In-Stock
162GU-85590-M0-00CONTROL UNIT ASSEMBLY$116.99$91.25Not Shipping
1798580-06020-00SCREW, PAN HEAD$9.49$7.405 In-Stock
1892995-06100-00WASHER, SPRING$3.55$3.0510+ In-Stock
1992990-06600-00

(replaces part #
92901-06600-00)

WASHER, PLAIN (646)$2.95$2.797 In-Stock
201L9-82540-00-00NEUTRAL SWITCH ASSY$51.99$40.557 In-Stock
2193210-29196-00

(replaces part #
93210-29147-00)

O-RING$9.49$7.4010+ In-Stock
2298707-05012-00

(replaces part #
98701-05012-00)

SCREW, COUNTERSUNK$1.85$1.8410+ In-Stock
