1994 Yamaha FZR1000 Generator OEM Parts Diagram

Submodel FZR1000FC - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

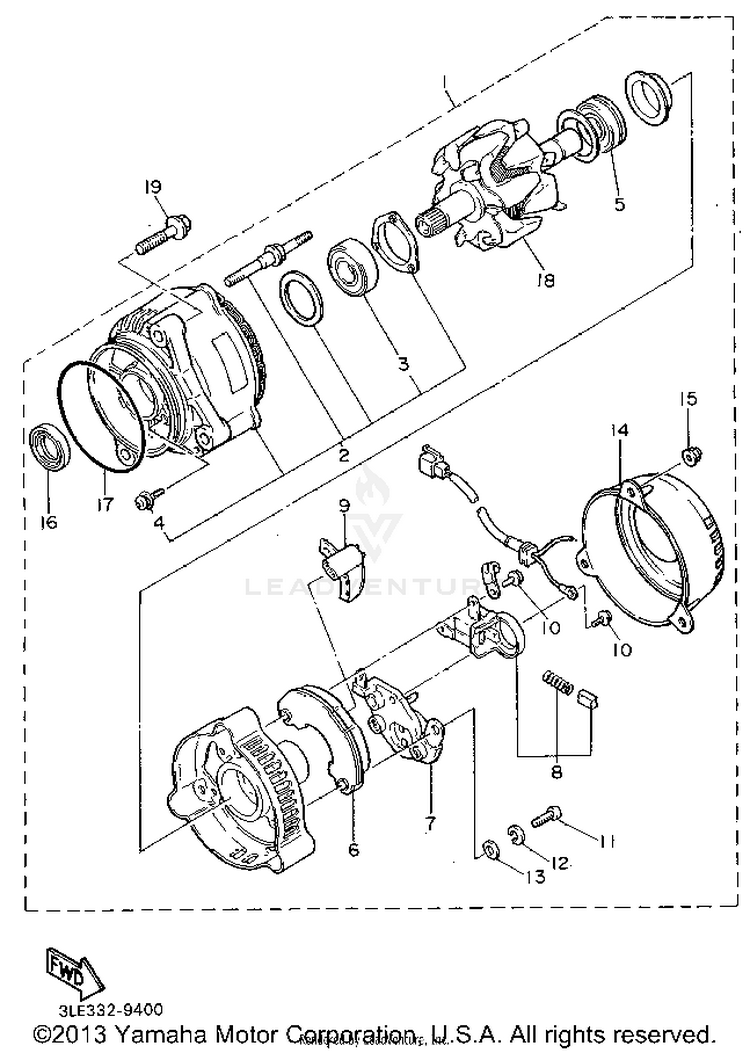

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GH-81600-55-00A.C. GENERATOR ASSEMBLY$1,773.99$1,469.30Usually ships in 7-10 business days
23FV-81634-00-00STATOR ASSEMBLY$427.99$335.62Usually ships in 7-10 business days
34BH-81643-10-00

(replaces part #
36Y-81643-30-00)

BEARING$46.99$38.53Usually ships in 7-10 business days
42KT-81645-50-00SCREW$16.49$13.52Usually ships in 7-10 business days
54BH-81643-10-00

(replaces part #
36Y-81643-50-00)

BEARING$46.99$38.53Usually ships in 7-10 business days
64BH-81970-00-00RECTIFIER ASSEMBLY$338.99$281.40Usually ships in 7-10 business days
736Y-81910-50-00VOLTAGE REGULATOR ASSEMBLY$327.99$272.59Usually ships in 7-10 business days
83FV-81619-00-00BRUSH HOLDER ASSEMBLY$68.99$53.81Usually ships in 7-10 business days
936Y-81972-50-00COVER, RECTIFIER$13.99$11.47Usually ships in 7-10 business days
103FV-81645-00-00SCREW$12.49$10.24Usually ships in 7-10 business days
1198580-05018-00SCREW, PAN HEAD$3.10$2.79Usually ships in 7-10 business days
1292990-05100-00WASHER, SPRING-$0.8310+ In-Stock
1392990-05600-00

(replaces part #
92901-05600-00)

WASHER, PLATE$1.60$1.44Usually ships in 7-10 business days
142GH-81604-00-00

(replaces part #
3FV-81604-00-00)

COVER ASSEMBLY$95.99$74.87Usually ships in 7-10 business days
153FV-81675-00-00NUT$5.49$4.94Usually ships in 7-10 business days
1636Y-81638-50-00OIL SEAL$36.99$30.33Usually ships in 7-10 business days
172KT-81642-50-00O-RING$26.99$22.13Usually ships in 7-10 business days
182GH-81660-52-00ROTOR ASSEMBLY$517.99$404.03Usually ships in 7-10 business days
1995817-08030-00

(replaces part #
95816-08030-00)

BOLT, FLANGE$9.49$7.408 In-Stock
