1994 Yamaha FZR600 Front Wheel OEM Parts Diagram

Submodel FZR600RFC - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT WHEEL

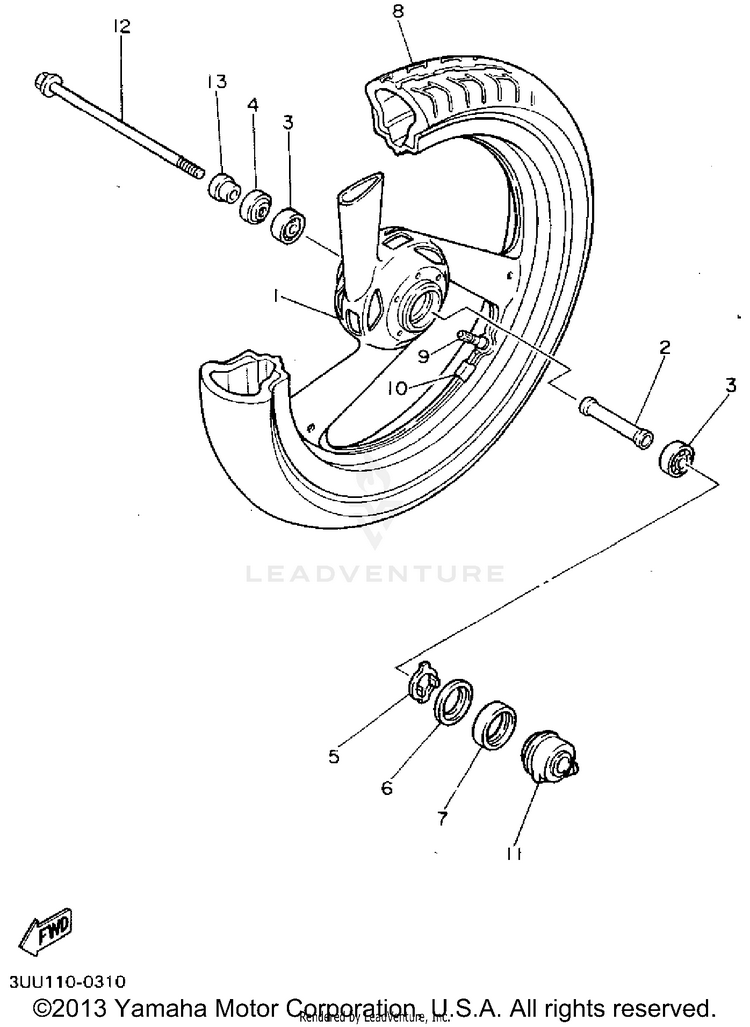

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-5MT-25398-00-00

(replaces part #
29L-25398-00-00)

BALANCER, WHEEL (10G) | UR$18.99$15.574 In-Stock
-5MT-25398-10-00

(replaces part #
29L-25398-10-00)

BALANCER, WHEEL (20G) | UR$18.99$15.57Usually ships in 7-10 business days
-3HE-25168-00-P1CAST WHEEL, FRONT | UR LIGHT REDDISH YELLOW SOLID 1$658.99$534.10Usually ships in 7-10 business days
13HE-25168-00-P0CAST WHEEL, FRONT | UR DEEP REDDISH PURPLE SOLDI 1$560.99$437.57Usually ships in 7-10 business days
290560-15314-00SPACER$16.49$13.52Not Shipping
393306-30212-00

(replaces part #
93306-30202-00)

BEARING$44.99$35.0910+ In-Stock
493102-22014-00OIL SEAL, SD-TYPE$13.49$10.523 In-Stock
5341-25149-00-00CLUTCH, METER$8.49$7.642 In-Stock
6341-25846-00-00RETAINER, CLUTCH$9.49$8.542 In-Stock
793105-45017-00OIL SEAL$16.49$12.862 In-Stock
894111-173X4-00TIRE (110/70 VR17 V240) | DUNLOP$272.99$230.92Usually ships in 7-10 business days
993900-00030-00VALVE, RIM (TR412)$18.49$14.425 In-Stock
105MT-25398-20-00

(replaces part #
29L-25398-20-00)

BALANCER, WHEEL (30G) | UR$46.99$38.53Usually ships in 7-10 business days
114X8-25190-10-00

(replaces part #
1WG-25190-00-00)

GEAR UNIT ASSEMBLY$100.99$78.77Usually ships in 7-10 business days
1242X-25181-00-00AXLE, WHEEL$47.99$39.35Usually ships in 7-10 business days
1390387-15550-00COLLAR$20.99$17.21Usually ships in 7-10 business days
