1994 Yamaha V-Max Crankshaft Piston OEM Parts Diagram

Submodel V-MAX 1200 - VMX12FC - 1994

Shop Aftermarket Parts

CRANKSHAFT PISTON

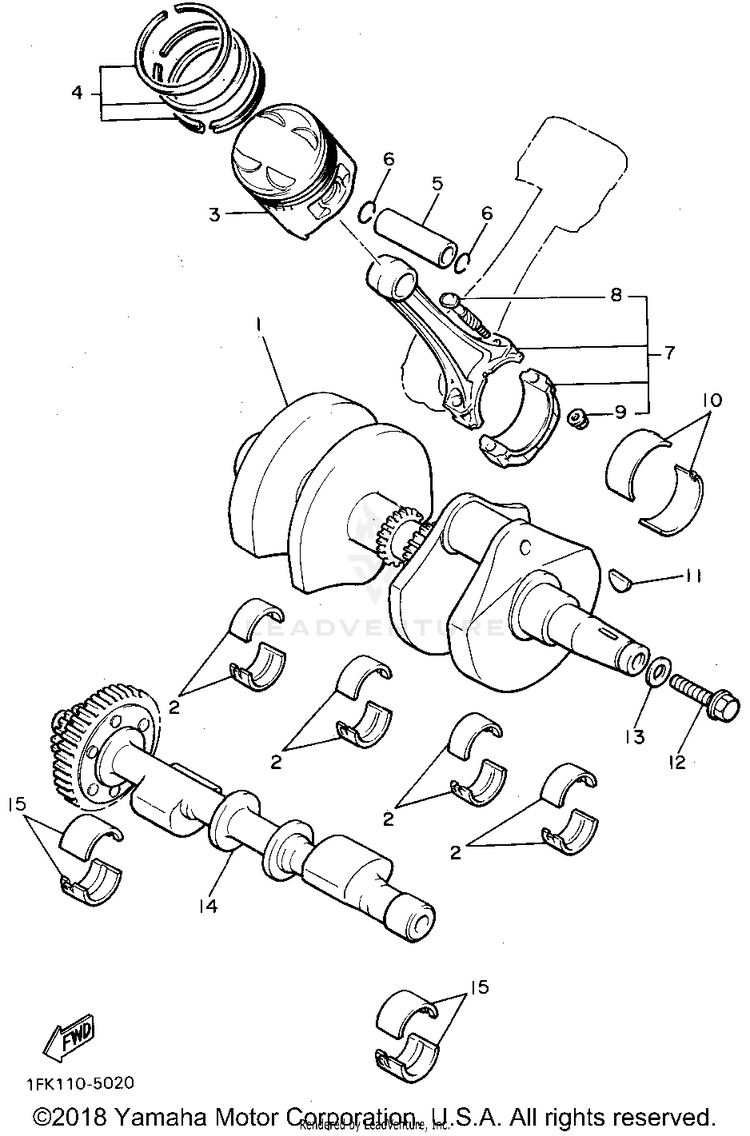

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-1FK-11416-51-00PLANE BEARING, CRANKSHAFT 1 | UR PINK$15.49$12.70Usually ships in 7-10 business days
-1FK-11656-40-00PLANE BEARING, CONNECTING ROD | CONNECTING ROD$30.99$25.41Usually ships in 7-10 business days
-1FK-11416-31-00PLANE BEARING, CRANKSHAFT 1 | UR GREEN$15.49$12.70Usually ships in 7-10 business days
-1FK-11416-11-00PLANE BEARING, CRANKSHAFT 1 | UR BLACK$15.49$12.70Usually ships in 7-10 business days
-1FK-11656-20-00PLANE BEARING, CONNECTING ROD | UR BROWN$31.99$26.23Usually ships in 7-10 business days
-1FK-11416-61-00PLANE BEARING, CRANKSHAFT 1 | UR RED$16.49$13.52Usually ships in 7-10 business days
-1FK-11416-41-00PLANE BEARING, CRANKSHAFT 1 | UR YELLOW$30.99$25.41Usually ships in 7-10 business days
-1FK-11656-30-00PLANE BEARING, CONNECTING ROD | CONNECTING ROD$28.99$23.77Usually ships in 7-10 business days
-1FK-11656-00-00PLANE BEARING, CONNECTING ROD | UR BLUE$17.49$14.34Usually ships in 7-10 business days
-1FK-11656-10-00PLANE BEARING, CONNECTING ROD | UR BLACK$30.99$25.41Usually ships in 7-10 business days
-1FK-11416-21-00PLANE BEARING, CRANKSHAFT 1 | UR BROWN$15.49$12.70Usually ships in 7-10 business days
-26H-11413-52-00

(replaces part #
26H-11413-51-00)

PLANE BEARING, BALANCE WEIGHT | UR PINK$5.49$4.94Usually ships in 7-10 business days
-26H-11413-22-00

(replaces part #
26H-11413-21-00)

PLANE BEARING, BALANCE WEIGHT | UR BROWN$12.99$10.65Usually ships in 7-10 business days
-26H-11413-42-00

(replaces part #
26H-11413-41-00)

PLANE BEARING, BALANCE WEIGHT | UR YELLOW$7.49$6.74Usually ships in 7-10 business days
-26H-11413-62-00

(replaces part #
26H-11413-61-00)

PLANE BEARING, BALANCE WEIGHT | UR RED$5.49$4.94Usually ships in 7-10 business days
-26H-11413-32-00

(replaces part #
26H-11413-31-00)

PLANE BEARING, BALANCE WEIGHT | UR GREEN$11.99$9.83Usually ships in 7-10 business days
-26H-11413-02-00

(replaces part #
26H-11413-01-00)

PLANE BEARING, BALANCE WEIGHT | UR BLUE$6.49$5.84Usually ships in 7-10 business days
-1FK-11631-00-A0PISTON (STD) | UR$107.99$84.23Usually ships in 7-10 business days
-1FK-11610-20-00PISTON RING SET (0.50MM O/S) | AP$43.99$36.07Usually ships in 7-10 business days
-1FK-11610-00-00PISTON RING SET (STD) | UR$98.99$77.21Usually ships in 7-10 business days
-1FK-11636-00-00PISTON (0.50MM O/S) | AP$133.99$104.51Usually ships in 7-10 business days
11FK-11400-00-00CRANKSHAFT ASSY$1,231.99$1,015.64Usually ships in 7-10 business days
21FK-11416-01-00PLANE BEARING, CRANKSHAFT 1 | UR BLUE$31.99$26.23Usually ships in 7-10 business days
31FK-11635-00-00PISTON (0.25MM O/S) | AP$181.99$141.95Usually ships in 7-10 business days
41FK-11610-10-00PISTON RING SET (0.25MM O/S) | AP$50.99$39.77Usually ships in 7-10 business days
51FK-11633-00-00PIN, PISTON$31.99$26.23Usually ships in 7-10 business days
693450-19095-00CIRCLIP$2.90$2.497 In-Stock
71FK-11650-01-00

(replaces part #
1FK-11650-00-00)

CONNECTING ROD ASSY$204.99$159.89Usually ships in 7-10 business days
826H-11654-00-00BOLT, CONNECTING ROD$21.99$18.03Usually ships in 7-10 business days
990179-08327-00NUT$10.49$8.60Usually ships in 7-10 business days
101FK-11656-50-00PLANE BEARING, CONNECTING ROD | CONNECTING ROD$17.49$14.34Usually ships in 7-10 business days
1190280-05029-00KEY, WOODRUFF$12.49$10.24Usually ships in 7-10 business days
1290105-12374-00BOLT, FLANGE$23.99$20.30Usually ships in 7-10 business days
1390201-12191-00

(replaces part #
90201-121H0-00)

WASHER, PLATE$8.49$6.623 In-Stock
141FK-11500-10-00

(replaces part #
1FK-11500-00-00)

BALANCER ASSY$321.99$267.84Usually ships in 7-10 business days
1526H-11413-12-00

(replaces part #
26H-11413-11-00)

PLANE BEARING, BALANCE WEIGHT | UR BLACK$6.49$5.84Usually ships in 7-10 business days
