1994 Yamaha WR250 Fender OEM Parts Diagram

Submodel WR250ZF - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

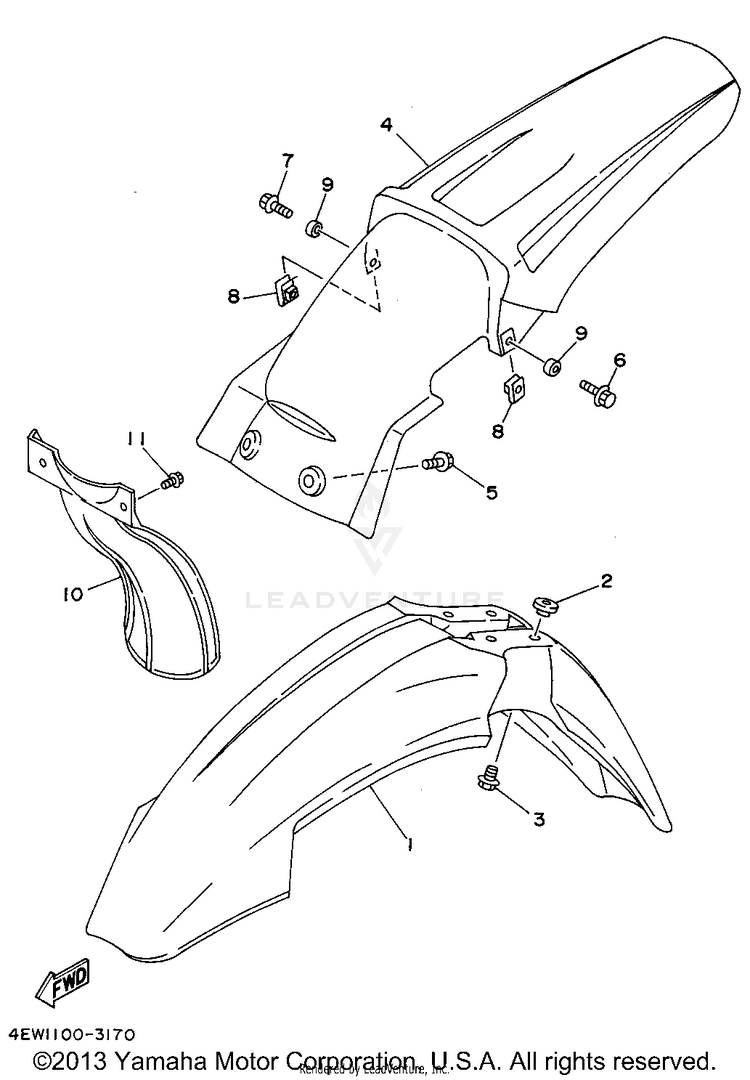

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14DA-21511-00-00FENDER, FRONT$56.25$43.88Not Shipping
23JD-21748-00-00COLLAR$6.49$5.0610+ In-Stock
390119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
44EW-21611-00-00FENDER, REAR$65.99$51.47Not Shipping
590119-06185-00BOLT, WITH WASHER$11.49$8.964 In-Stock
695024-06016-00

(replaces part #
90105-06707-00)

BOLT, FLANGE (SMALL HEAD)$9.49$7.407 In-Stock
795024-06030-00

(replaces part #
95023-06030-00)

BOLT, FLANGE (SMALL HEAD)$9.49$7.407 In-Stock
890183-06023-00NUT, SPRING$10.49$8.1810+ In-Stock
990387-0701A-00COLLAR$10.49$8.1810+ In-Stock
1039X-21642-00-00GUARD, FLAP$87.99$68.632 In-Stock
1190119-06185-00BOLT, WITH WASHER$11.49$8.964 In-Stock
