1994 Yamaha XT225 Serow Fender OEM Parts Diagram

Submodel SEROW - XT225FC - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

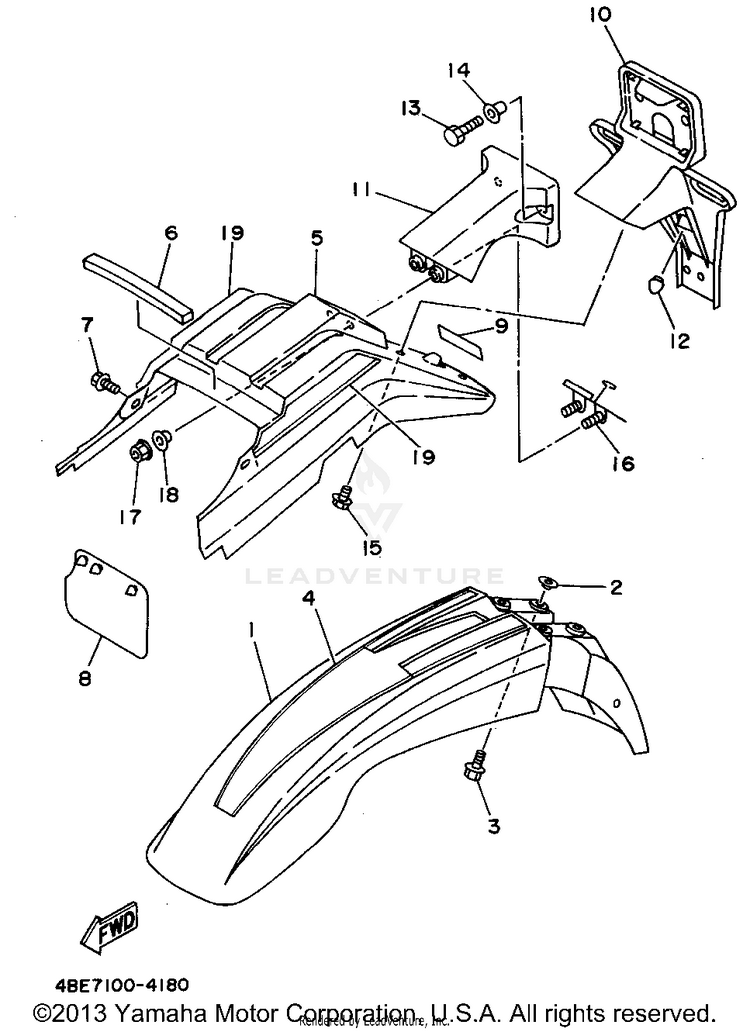

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BE-21511-00-00FENDER, FRONT$54.99$48.56Usually ships in 7-10 business days
290387-06681-00COLLAR$10.49$8.1810+ In-Stock
390119-06063-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
44JG-21570-10-00GRAPHIC SET, | UR$23.99$19.67Usually ships in 7-10 business days
599999-03284-00

(replaces part #
3RW-21611-10-00)

FENDER,REAR$85.99$67.17Not Shipping
63RW-21639-00-00DAMPER 2$8.99$8.09Usually ships in 7-10 business days
790119-06108-00BOLT, WITH WASHER$9.49$8.549 In-Stock
834X-21691-00-00FLAP$21.99$18.03Usually ships in 7-10 business days
93WF-2153E-11-00

(replaces part #
3EP-2153A-00-00)

EMBLEM, YAMAHA$14.49$11.302 In-Stock
104BE-84551-00-00BRACKET, LICENSE$112.99$88.131 In-Stock
114BE-84527-00-00DAMPER$47.99$39.35Not Shipping
1242U-21639-00-00DAMPER 2$30.99$25.41Usually ships in 7-10 business days
1397017-06025-00

(replaces part #
97011-06025-00)

BOLT$4.55$3.9110+ In-Stock
1490387-07391-00COLLAR$10.49$8.1810+ In-Stock
1595817-06016-00

(replaces part #
95811-06016-00)

BOLT, FLANGE$1.95$1.6810+ In-Stock
164BE-21637-00-00CLAMP, WIRE$26.99$22.13Usually ships in 7-10 business days
1795604-06200-00

(replaces part #
95601-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
1890387-06681-00COLLAR$10.49$8.1810+ In-Stock
194JG-2165A-10-00GRAPHIC SET, | UR$40.99$33.61Usually ships in 7-10 business days
