1994 Yamaha YZ250 Clutch OEM Parts Diagram

Submodel YZ250F1 - 1994

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

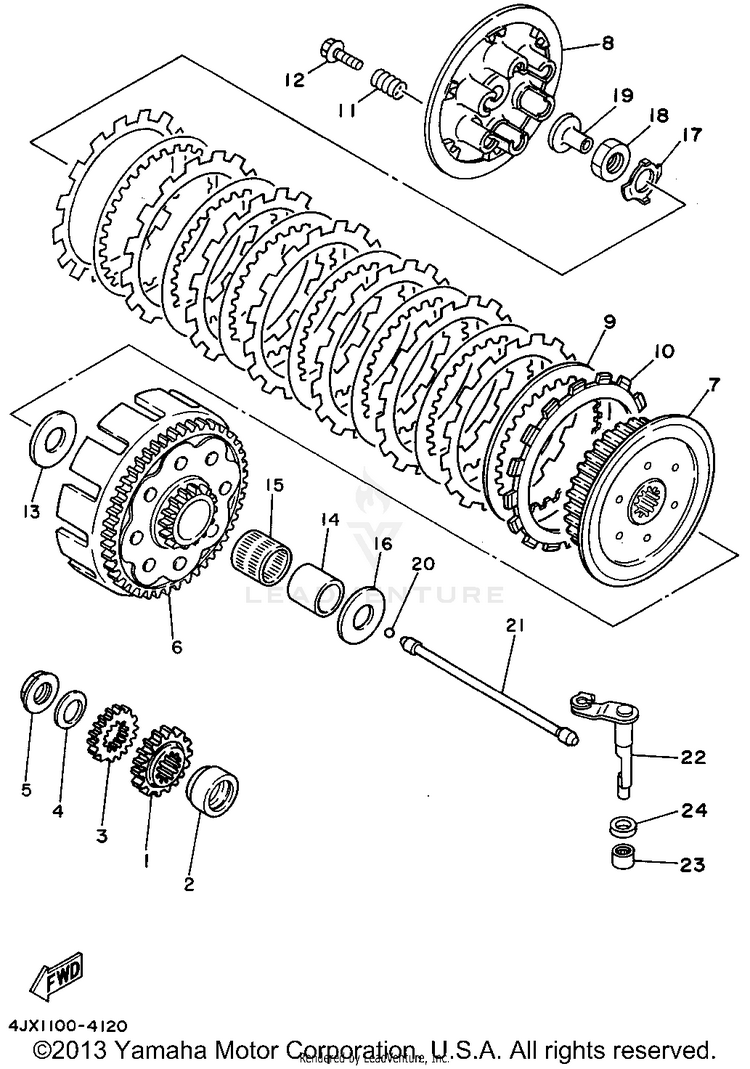

CLUTCH

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12VM-16111-00-00GEAR, PRIMARY DRIVE$71.99$56.15Not Shipping
290387-252F6-00COLLAR$18.99$15.57Not Shipping
33XK-11956-00-00GEAR, GOVERNOR DRIVE$48.99$40.17Usually ships in 7-10 business days
490208-18025-00WASHER, CONICAL SPRING$10.49$8.60Not Shipping
590179-18172-00NUT$16.49$12.86Not Shipping
64EW-16150-01-00

(replaces part #
4EW-16150-00-00)

PRIMARY DRIVEN GEAR COMP.$299.99$236.29Not Shipping
75NX-16371-00-00

(replaces part #
4EW-16371-01-00)

BOSS, CLUTCH$185.99$145.0710+ In-Stock
84EW-16351-01-00

(replaces part #
4EW-16351-00-00)

PLATE, PRESSURE 1$68.99$53.81Not Shipping
94X7-16325-10-00

(replaces part #
4X7-16325-00-00)

PLATE, CLUTCH 2$17.99$16.0310+ In-Stock
103XK-16321-00-00PLATE, FRICTION$31.99$24.9510+ In-Stock
1190501-23598-00SPRING, COMPRESSION$8.49$6.629 In-Stock
1290159-06016-00SCREW, WITH WASHER$3.65$3.1410+ In-Stock
132K7-16154-00-00PLATE, THRUST 1$22.99$17.935 In-Stock
142VM-16181-00-00SPACER 1$50.99$39.771 In-Stock
1593310-230T7-00BEARING$42.99$33.5310+ In-Stock
163SP-16154-00-00PLATE, THRUST 1$17.99$14.75Not Shipping
1790215-20231-00WASHER, LOCK$3.65$3.5310+ In-Stock
1890170-20255-00NUT$11.49$8.9610+ In-Stock
194EW-16356-00-00ROD, PUSH 1$34.99$28.69Not Shipping
2093511-32027-00BALL$9.49$7.4010+ In-Stock
214EW-16357-00-00ROD, PUSH 2$93.99$73.313 In-Stock
224EW-16381-01-00

(replaces part #
4EW-16381-00-00)

PUSH LEVER COMP.$105.99$82.67Not Shipping
2393315-11206-00BEARING$39.99$31.1910+ In-Stock
2493102-12224-00OIL SEAL$11.49$8.9610+ In-Stock
AFTERMARKET ALTERNATIVE
$3.99$2.9910+ In-Stock
