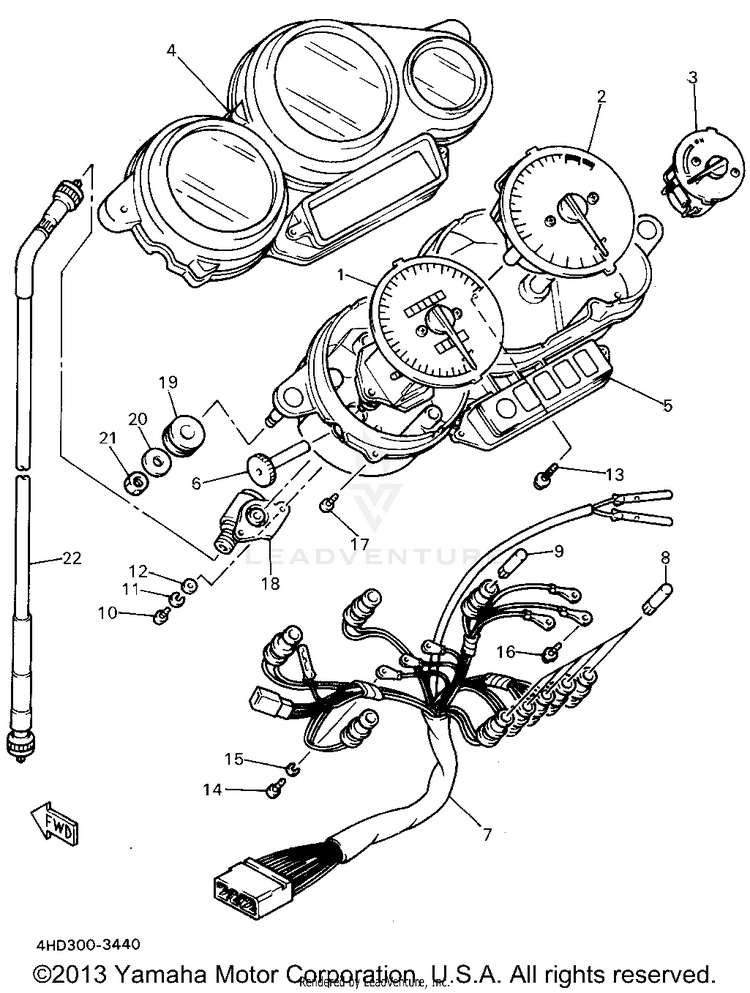

1994 Yamaha YZF750R Meter OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	4FM-83570-10-00	SPEEDOMETER ASSEMBLY	$290.99	$226.97	Usually ships in 7-10 business days
2	4FM-83540-00-00	TACHOMETER ASSEMBLY	$498.99	$389.21	Usually ships in 7-10 business days
3	4FM-83590-00-00	WATER TEMPERATURE ASSEMBLY	$160.99	$125.57	Usually ships in 7-10 business days
4	4FM-83559-00-00	COVER, METER	$208.15	$162.36	Usually ships in 7-10 business days
5	4FM-8353H-60-00 (replaces part # 4FM-8353H-50-00)	CASE, UNDER (4FM-8353H-50-00)	$284.99	$222.29	Usually ships in 7-10 business days
6	2GH-83578-00-00	KNOB, TRIP METER	$14.99	$12.29	Usually ships in 7-10 business days
7	4FM-83509-00-00	SOCKET CORD ASSEMBLY	$277.19	$216.21	Usually ships in 7-10 business days
8	4G1-84744-00-XX (replaces part # 4G1-84744-00-00)	BULB (12V-3.4W T10)	$4.80	$4.32	Usually ships in 7-10 business days
9	3FV-83517-00-00 (replaces part # 2GV-83517-00-00)	BULB (12V-1.7W)	$9.49	$7.40	10+ In-Stock
10	98580-04010-00	SCREW, PAN HEAD	$9.49	$7.40	10+ In-Stock
11	92990-04100-00	WASHER, SPRING	-	$1.02	10+ In-Stock
12	92990-04600-00 (replaces part # 92901-04600-00)	WASHER, PLATE	$0.99	$0.90	7 In-Stock
13	97902-04122-00	SCREW, WITH WASHER	$6.99	$6.29	Usually ships in 7-10 business days
14	98580-03010-00	SCREW, PAN HEAD	$9.49	$7.40	8 In-Stock
15	92990-03100-00	WASHER, SPRING	$9.49	$7.40	10+ In-Stock
16	90159-03102-00	SCREW, WITH WASHER	$2.30	$2.07	Usually ships in 7-10 business days
17	90164-04023-00	SCREW, TAPPING	$1.35	$1.22	Usually ships in 7-10 business days
18	4FM-83520-00-00	SOCKET CORD ASSY	$142.99	$111.53	Usually ships in 7-10 business days
19	5J0-83513-00-00	DAMPER	$16.49	$13.52	Usually ships in 7-10 business days
20	90201-06057-00 (replaces part # 90201-06059-00)	WASHER, PLATE	$6.49	$5.06	7 In-Stock
21	95317-06600-00 (replaces part # 95316-06600-00)	NUT	$3.85	$3.31	10+ In-Stock
22	4FM-83550-02-00 (replaces part # 4FM-83550-00-00)	SPEEDOMETER CABLE ASSY	$29.99	$24.59	Usually ships in 7-10 business days
