1995 Yamaha BANSHEE 350 Crankcase Cover 1 OEM Parts Diagram

Submodel BANSHEE - YFZ350G - 1995

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

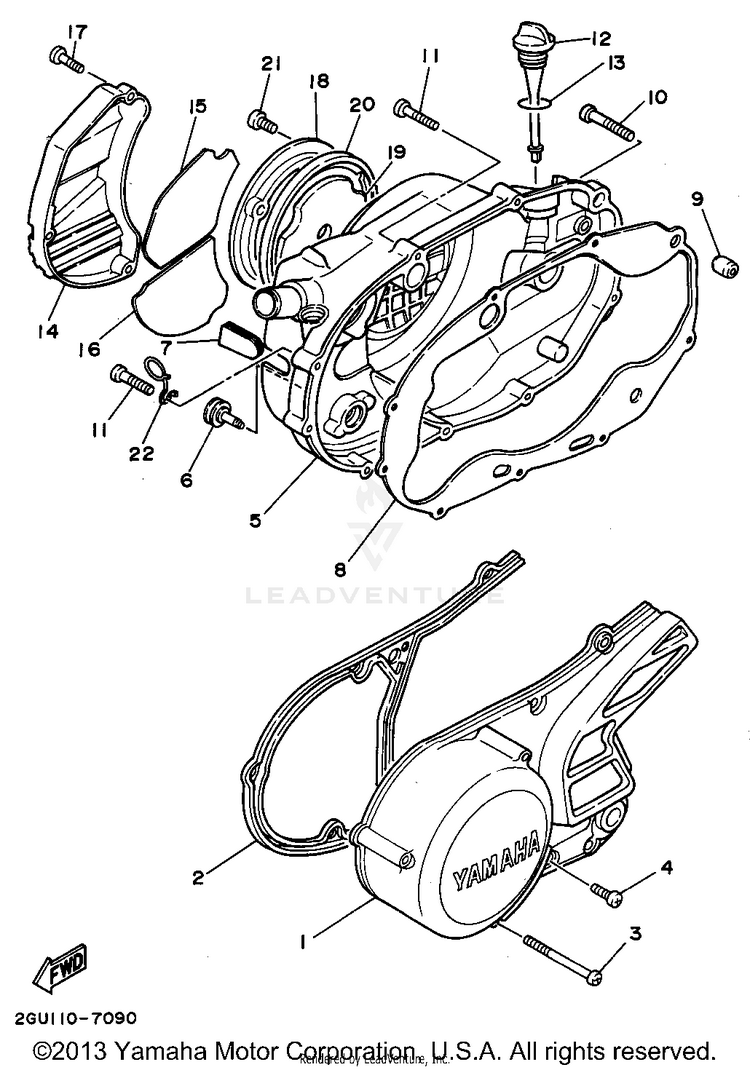

CRANKCASE COVER 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-15411-00-00COVER, CRANKCASE 1$185.99$145.072 In-Stock
22GU-15379-00-00SEAL, CRANKCASE$46.99$36.657 In-Stock
398507-06055-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
498517-06020-00

(replaces part #
92507-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
52GU-15421-00-00COVER, CRANKCASE 2$160.99$125.57
62GU-15189-00-00PLUG$32.99$25.733 In-Stock
790338-15189-00PLUG$12.49$9.745 In-Stock
83GG-15461-02-00

(replaces part #
3GG-15461-00-00)

GASKET, CRANKCASE COVER 2$36.99$28.8510+ In-Stock
AFTERMARKET ALTERNATIVE
$12.99$9.9910+ In-Stock
999530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
1098507-06040-00SCREW, PAN HEAD$3.22$2.779 In-Stock
1198517-06030-00

(replaces part #
98507-06030-00)

SCREW, PAN HEAD$3.45$2.97
124L0-15362-00-00PLUG, OIL LEVEL$23.99$18.716 In-Stock
1393210-19123-00O-RING$8.99$7.0110+ In-Stock
142GU-15416-00-00COVER, OIL PUMP$60.99$47.572 In-Stock
152GU-15337-00-00DAMPER 4$24.99$19.491 In-Stock
162GU-15338-00-00DAMPER, ENGINE MOUNT 5$23.99$18.712 In-Stock
1798517-06020-00

(replaces part #
98507-06020-00)

SCREW,PAN HEAD$2.35$2.0210+ In-Stock
184L0-15431-01-00COVER, CRANKCASE 3$39.99$31.192 In-Stock
1931K-15317-00-00SPACER, ENGINE MOUNT$26.99$22.13Usually ships in 7-10 business days
2048H-15327-00-00SPACER, ENGINE MOUNT$47.99$39.35Usually ships in 7-10 business days
2198507-05014-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
2290465-32317-00CLAMP$16.49$12.869 In-Stock
