1995 Yamaha YZ80 Front Brake Caliper OEM Parts Diagram

Submodel YZ80G1 - 1995

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

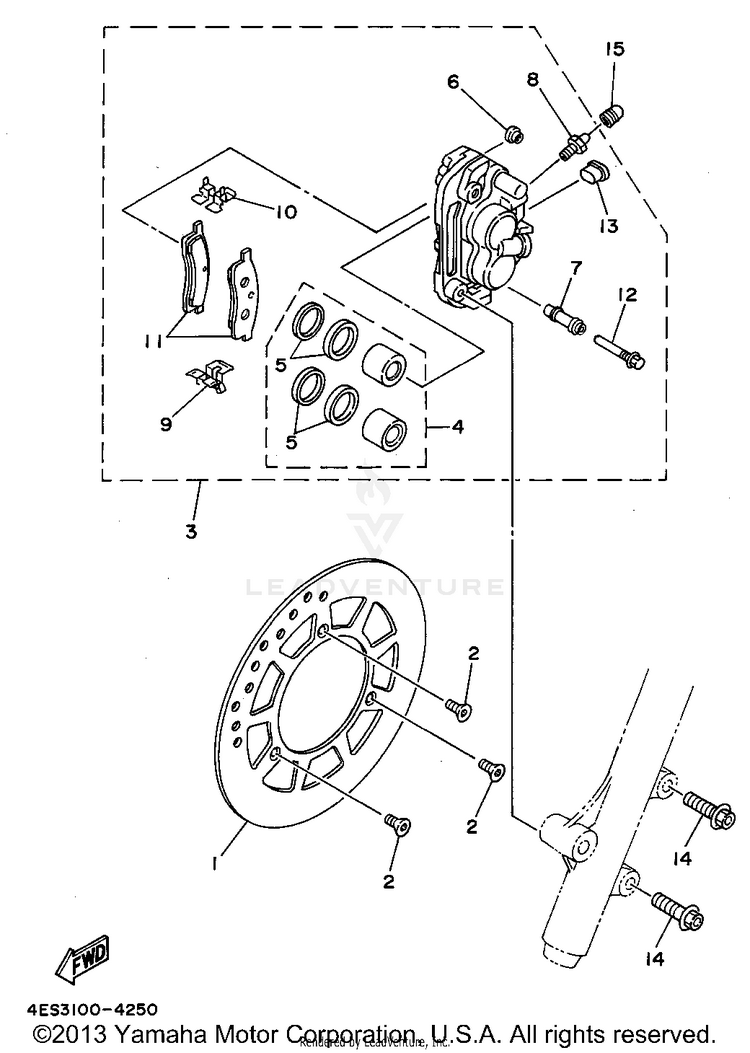

FRONT BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14ES-2582T-00-00DISC, BRAKE$134.99$105.29Usually ships in 7-10 business days
290151-06080-00

(replaces part #
90149-06272-00)

SCREW, COUNTERSUNK$2.35$2.0210+ In-Stock
34ES-2580T-20-00

(replaces part #
4ES-2580T-00-00)

CALIPER ASSY (LEFT)$340.99$265.97Usually ships in 7-10 business days
44ES-W0057-10-00

(replaces part #
1LR-W0057-00-00)

PISTON ASSY, CALIPER$120.99$94.374 In-Stock
54ES-25803-10-00

(replaces part #
1LR-W0047-00-00)

CALIPER SEAL KIT$66.99$52.257 In-Stock
65R2-25937-00-00BOOT 2$41.99$32.752 In-Stock
756A-25937-00-00BOOT 2$25.99$20.272 In-Stock
847X-25824-01-00

(replaces part #
47X-25824-00-00)

SCREW, BLEED$15.49$12.70Usually ships in 7-10 business days
956A-25919-00-00SUPPORT, PAD$38.99$30.411 In-Stock
1056A-25919-10-00SUPPORT, PAD$35.99$28.0710+ In-Stock
114ES-W0045-00-00BRAKE PAD KIT$31.99$31.63Usually ships in 7-10 business days
1256A-25926-00-00BOLT$15.49$12.082 In-Stock
1334X-25845-00-00CAP, INDICATOR$17.99$14.031 In-Stock
1490105-08211-00BOLT, FLANGE$3.50$3.0110+ In-Stock
151D7-25825-00-00

(replaces part #
51L-25825-00-00)

CAP$8.49$6.622 In-Stock
