1996 Yamaha BADGER 80 Starting Motor OEM Parts Diagram

Submodel BADGER - YFM80H - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STARTING MOTOR

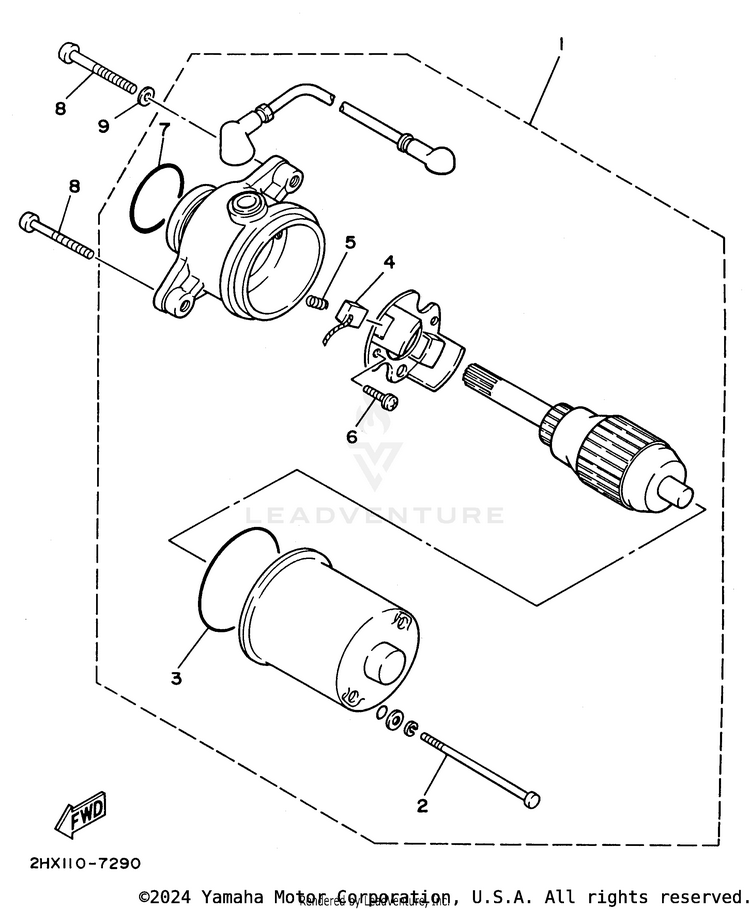

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
155X-81800-51-00STARTING MOTOR ASSY$418.99$348.44Usually ships in 7-10 business days
255X-81826-50-00BOLT$10.49$8.60Usually ships in 7-10 business days
35J3-81847-50-00O-RING$18.49$15.16Usually ships in 7-10 business days
422J-81801-50-00BRUSH SET$22.99$18.85Not Shipping
555X-81855-50-00SPRING, BRUSH$11.49$9.42Usually ships in 7-10 business days
698517-04012-00

(replaces part #
98507-04012-00)

SCREW,PANHEAD$4.20$3.6110+ In-Stock
722J-81847-50-00O-RING$18.99$15.57Usually ships in 7-10 business days
891317-06035-00BOLT, HEX. SOCKET HEAD$3.90$3.356 In-Stock
992907-06200-00WASHER$9.49$7.4010+ In-Stock
