1996 Yamaha BIG BEAR 2x4 350 Front Master Cylinder OEM Parts Diagram

Submodel BIG BEAR 2WD - YFM350UH - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

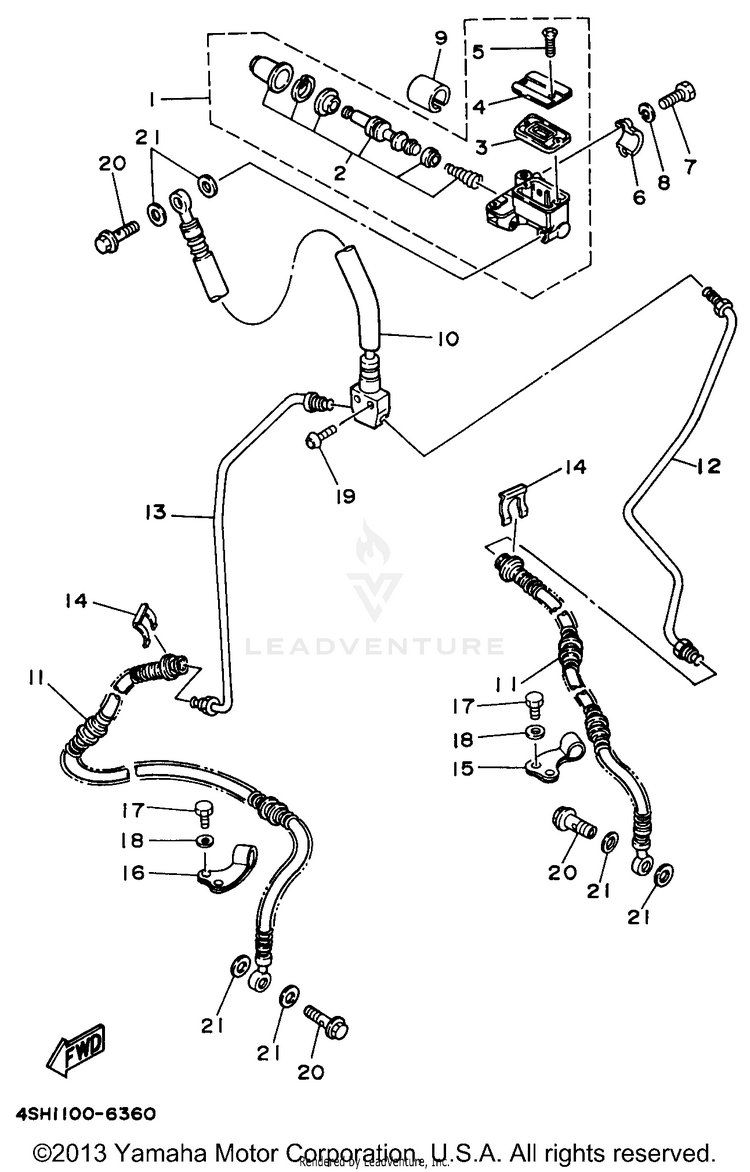

FRONT MASTER CYLINDER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12GU-25870-10-00

(replaces part #
3HN-2583T-00-00)

MASTER CYL. ASSY$318.99$248.81Usually ships in 7-10 business days
24H7-W0041-50-00CYLINDER KIT, MASTER$84.99$66.296 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.316 In-Stock
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
44H7-25852-00-00CAP, RESERVOIR$43.99$34.312 In-Stock
598707-04012-00SCREW, FLAT HEAD-$1.9410+ In-Stock
656A-25867-00-00BRACKET, MASTER CYLINDER$31.99$24.953 In-Stock
797017-06025-00BOLT$4.55$3.9110+ In-Stock
892907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
91UY-26259-00-00COLLAR$21.99$17.152 In-Stock
103HN-25872-11-00HOSE, BRAKE 1$156.99$122.45Usually ships in 7-10 business days
114SH-25873-01-00

(replaces part #
4SH-25873-00-00)

HOSE, BRAKE 2$102.99$80.33Usually ships in 7-10 business days
124SH-25871-00-00PIPE, BRAKE$16.99$13.93Usually ships in 7-10 business days
134SH-25882-00-00PIPE, BRAKE 2$18.99$15.57Usually ships in 7-10 business days
142GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
154GB-25875-00-00HOLDER, BRAKE HOSE 1$27.99$22.95Usually ships in 7-10 business days
164GB-25876-00-00HOLDER, BRAKE HOSE 2$10.49$8.60Usually ships in 7-10 business days
1797017-06012-00

(replaces part #
97027-06012-00)

BOLT$4.05$3.4810+ In-Stock
1892907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
1992017-08025-00BOLT, BUTTON HEAD$9.49$7.40
2090401-10159-00BOLT, UNION$12.49$9.7410+ In-Stock
2190201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
