1996 Yamaha BLASTER 200 Front Fender OEM Parts Diagram

Submodel BLASTER - YFS200H_MNH - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FENDER

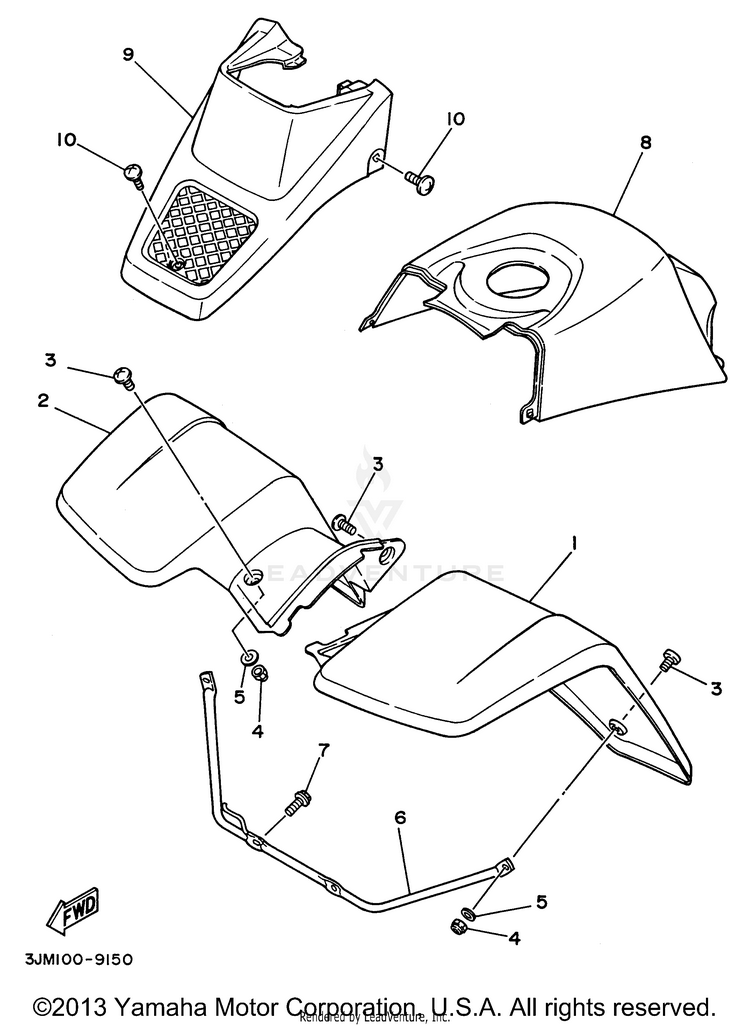

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
-2XJ-23391-90-00PANEL, FRONT | UR YAMAHA BLACK$67.99$53.03Not Shipping
AFTERMARKET ALTERNATIVE
$68.26$61.4310+ In-Stock
-2XJ-2171A-B0-00COVER, TOP | UR BLUISH PURPLE SOLID 3$76.99$60.05Usually ships in 7-10 business days
-2XJ-W2151-81-00

(replaces part #
2XJ-21511-80-00)

FRONT FENDER COMP. | UR YAMAHA BLACK$113.99$88.91Not Shipping
-2XJ-21556-80-00FENDER, FRONT 2 | UR YAMAHA BLACK$105.99$82.67Not Shipping
12XJ-W2151-79-00

(replaces part #
2XJ-21511-70-00)

FENDER, FRONT | UR INK BLUE$109.99$85.79Not Shipping
22XJ-21556-70-00FENDER, FRONT 2 | UR INK BLUE$94.44$73.66Usually ships in 7-10 business days
390149-06306-00SCREW$3.65$3.1410+ In-Stock
495617-06100-00NUT, U$2.90$2.4910+ In-Stock
592907-06200-00WASHER$9.49$7.4010+ In-Stock
62XJ-21513-00-00STAY, FENDER 1$56.99$44.45Not Shipping
795817-06012-00

(replaces part #
95827-06012-00)

BOLT, FLANGE$1.95$1.7710+ In-Stock
82XJ-2171A-90-00COVER, TOP | UR YAMAHA BLACK$86.99$67.85Not Shipping
92XJ-23391-B0-00PANEL, FRONT | UR BLUISH PURPLE SOLID 3$69.99$54.59Not Shipping
1090154-05051-00SCREW, BINDING$4.40$3.788 In-Stock
