1996 Yamaha Virago XV250 Front Wheel OEM Parts Diagram

Submodel VIRAGO 250 - XV250HC - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

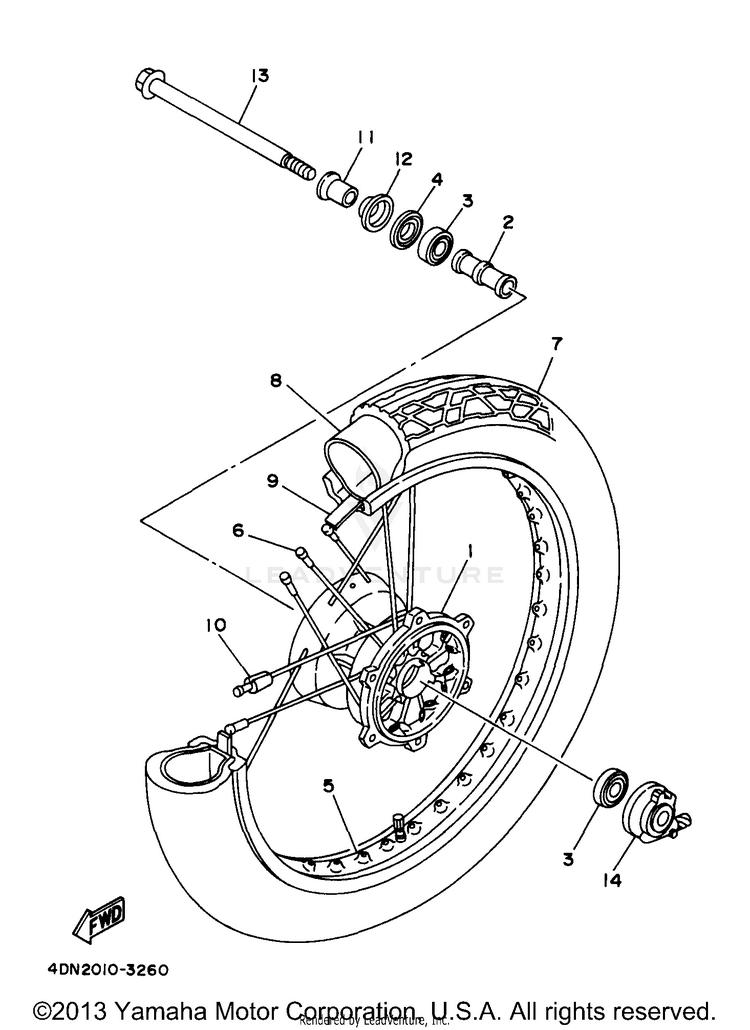

FRONT WHEEL

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14DN-25111-20-35HUB, FRONT | SILVER (035)$258.99$214.72Usually ships in 7-10 business days
290560-15240-00SPACER$19.49$15.98Usually ships in 7-10 business days
393306-20205-00

(replaces part #
93306-20209-00)

BEARING$42.99$33.5310+ In-Stock
493102-20281-00OIL SEAL (SD 20-35-5)$16.49$12.869 In-Stock
594416-18523-00RIM (1.60-18)$243.99$190.31Usually ships in 7-10 business days
63DM-25104-02-00

(replaces part #
3DM-25104-00-00)

SPOKE SET, FRONT$155.99$121.67Usually ships in 7-10 business days
794130-184T4-00

(replaces part #
94130-185T4-00)

TIRE (3.00-18 4PR C-916) | INOUE$78.99$61.61Usually ships in 7-10 business days
894227-18195-00TUBE | DUNLOP$38.99$31.97Usually ships in 7-10 business days
994340-18086-00

(replaces part #
94325-18081-00)

BAND, RIM (2.50-18)$19.49$15.208 In-Stock
103HT-25398-00-00

(replaces part #
156-25398-00-00)

BALANCER, WHEEL (15G) | UN$8.49$7.64Usually ships in 7-10 business days
1190387-15600-00COLLAR$20.99$16.372 In-Stock
12322-25118-00-00COVER, HUB DUST$18.99$14.8110+ In-Stock
1310W-25381-00-00AXLE, WHEEL$30.99$25.41Usually ships in 7-10 business days
144DN-25190-02-00

(replaces part #
4DN-25190-01-00)

GEAR UNIT ASSY$117.99$92.03Usually ships in 7-10 business days
