1996 Yamaha WARRIOR 350 Generator OEM Parts Diagram

Submodel WARRIOR - YFM350XH - 1996

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

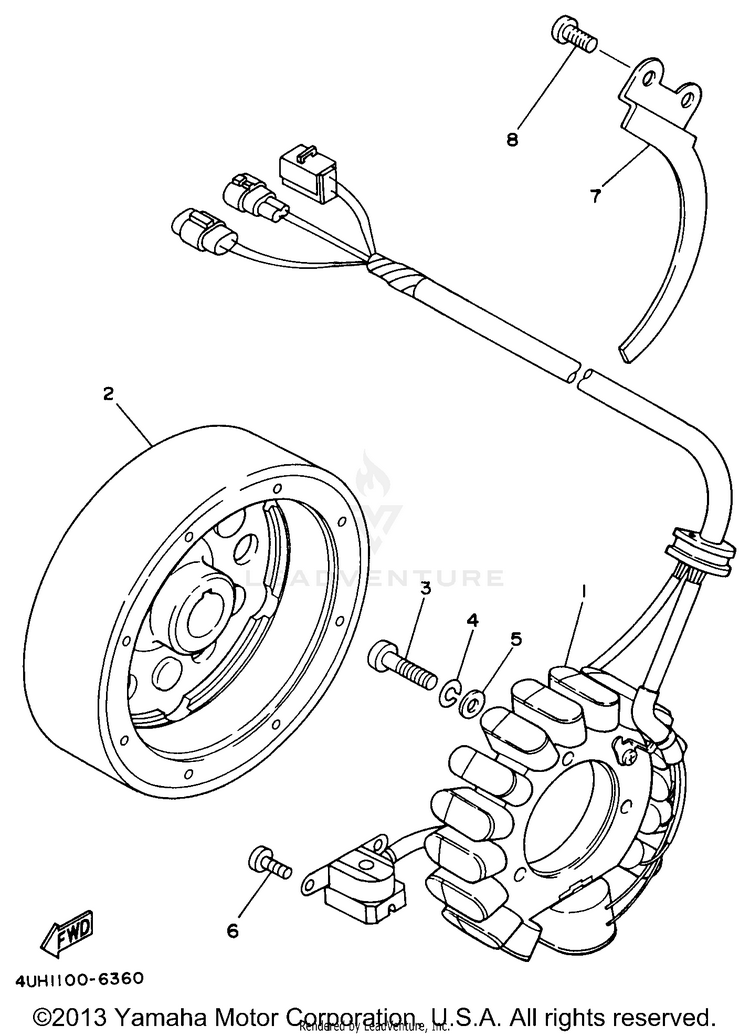

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13HN-85510-10-00STATOR ASSY$1,166.99$910.25Usually ships in 7-10 business days
AFTERMARKET ALTERNATIVE
$49.99$44.8810+ In-Stock
23HN-85550-01-00

(replaces part #
3HN-85550-00-00)

ROTOR ASSY$626.99$489.05Usually ships in 7-10 business days
398517-06030-00

(replaces part #
98507-06030-00)

SCREW, PAN HEAD$3.45$2.97
492907-06100-00WASHER, SPRING$1.30$1.1210+ In-Stock
592907-06600-00WASHER, PLATE$1.00$0.9910+ In-Stock
698507-05014-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
71UY-81175-01-00STOPPER 1$28.99$23.77Usually ships in 7-10 business days
898517-06012-00

(replaces part #
98507-06012-00)

SCREW,PAN$4.10$3.5310+ In-Stock
