CRANKCASE COVER 1

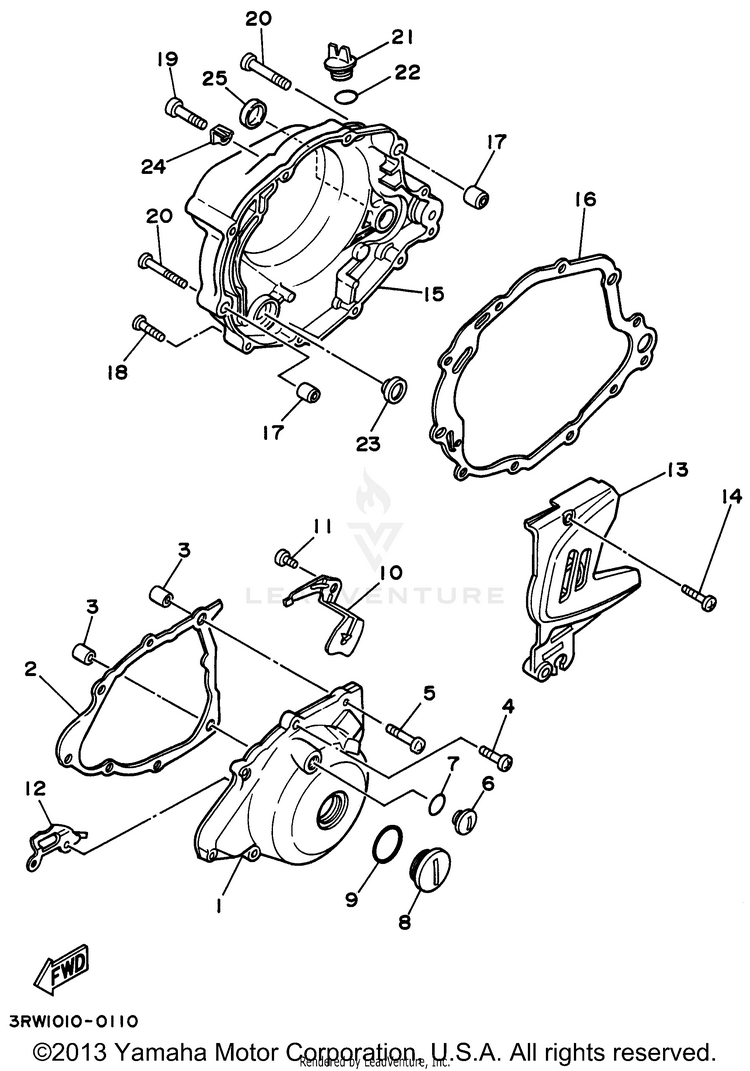

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14BE-15411-00-00COVER, CRANKCASE 1$164.99$128.69Not Shipping
24BE-15451-03-00

(replaces part #
4BE-15451-01-00)

GASKET, CRANKCASE COVER 1$24.99$19.4910+ In-Stock
399530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
498517-06025-00SCREW, PAN HEAD$4.05$3.4810+ In-Stock
598507-06035-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
690340-14128-00PLUG, STRAIGHT SCREW$12.99$10.1310+ In-Stock
793210-14369-00O-RING$8.49$6.6210+ In-Stock
890340-32123-00PLUG, STRAIGHT SCREW$25.99$20.277 In-Stock
993210-32172-00O-RING$8.49$6.6210+ In-Stock
1090465-08300-00CLAMP$12.99$10.65Usually ships in 7-10 business days
1198507-06010-00SCREW, PAN HEAD$3.85$3.318 In-Stock
1290462-16096-00CLAMP$6.49$5.84Not Shipping
133RW-15420-00-00CRANKCASE COVER ASSEMBLY 2$63.99$49.91Not Shipping
1498517-06025-00SCREW, PAN HEAD$4.05$3.4810+ In-Stock
153RW-15431-01-00COVER, CRANKCASE 3$144.99$113.09Usually ships in 7-10 business days
164BE-15462-00-00GASKET, CRANKCASE COVER 3$37.99$29.6310+ In-Stock
1799530-12016-00

(replaces part #
99510-12016-00)

PIN, DOWEL$4.89$4.2110+ In-Stock
1898517-06025-00SCREW, PAN HEAD$4.05$3.4810+ In-Stock
1998507-06035-00SCREW, PAN HEAD$9.49$7.4010+ In-Stock
2098507-06045-00SCREW, PAN HEAD$3.40$2.9210+ In-Stock
213Y1-15363-10-00

(replaces part #
1RG-15363-00-00)

PLUG, OIL$19.99$15.5910+ In-Stock
2293210-19123-00O-RING$8.99$7.0110+ In-Stock
233Y1-15361-00-00GAUGE, LEVEL$33.99$26.5110+ In-Stock
2490462-08225-00CLAMP$9.49$8.54Usually ships in 7-10 business days
2555X-15167-00-00PLUG, BLIND 1$14.49$11.88Usually ships in 7-10 business days
