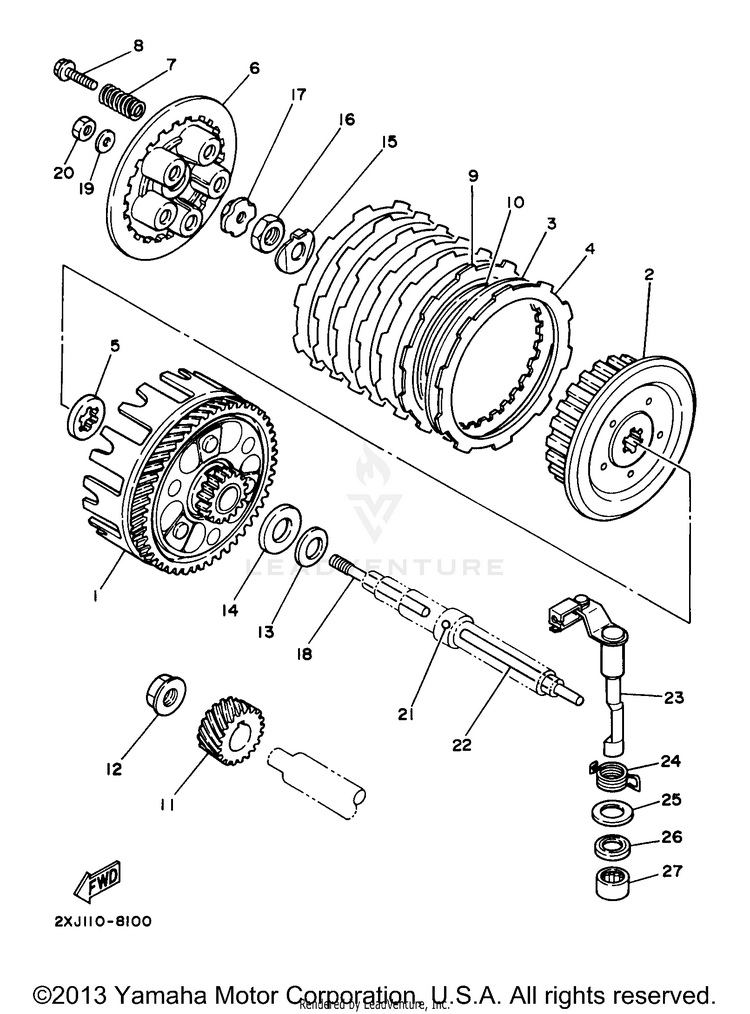

1997 Yamaha BLASTER 200 Clutch OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	3JM-16150-01-00	PRIMARY DRIVEN GEAR COMP.	$327.99	$255.83	8 In-Stock
2	37F-16371-01-00	BOSS, CLUTCH	$120.99	$94.37	4 In-Stock
3	1V1-16324-10-00 (replaces part # 1V1-16324-00-00)	PLATE, CLUTCH 1	$24.99	$19.49	10+ In-Stock
4	3XP-16321-00-00 (replaces part # 21V-16321-00-00)	PLATE, FRICTION	$21.99	$17.15	10+ In-Stock
5	2TV-16154-00-00	PLATE, THRUST 1	$35.99	$28.07	1 In-Stock
6	37F-16351-00-00	PLATE, PRESSURE 1	$61.99	$48.35	1 In-Stock
7	90501-20568-00	SPRING, COMPRESSION	$13.49	$10.52	10+ In-Stock
8	90119-05001-00	BOLT, WITH WASHER	$3.50	$3.01	10+ In-Stock
9	1HX-16331-00-00	PLATE, FRICTION 2	$28.99	$22.61	2 In-Stock
10	1HX-16383-00-00	SPRING, CLUTCH BOSS	$64.99	$50.69	2 In-Stock
11	4FU-16111-00-00 (replaces part # 2JK-16111-01-00)	GEAR,PRI DRIVE	$58.99	$46.01	Usually ships in 7-10 business days
12	90179-12335-00	NUT, SPECL SHAPE	$10.49	$8.18	3 In-Stock
13	90208-18046-00	WASHER, CONICAL SPRING	$12.49	$9.74	10+ In-Stock
14	90201-180P2-00	WASHER, PLATE	$10.49	$8.18	6 In-Stock
15	90215-12271-00	WASHER, LOCK	$10.49	$8.18	10+ In-Stock
16	90170-12370-00	NUT	$22.99	$17.93	1 In-Stock
17	1W1-16358-01-00	PLATE, PUSH	$25.99	$20.27	7 In-Stock
18	1W1-16356-02-00	ROD, PUSH 1	$18.99	$14.81	3 In-Stock
19	92907-06200-00	WASHER	$9.49	$7.40	10+ In-Stock
20	95317-06600-00	NUT	$3.85	$3.31	10+ In-Stock
21	93503-16003-00	BALL	$2.90	$2.49	10+ In-Stock
22	2J5-16357-00-00	ROD, PUSH 2	$8.49	$6.62	10+ In-Stock
23	37F-16380-02-00	PUSH LEVER ASSY	$115.99	$90.47	2 In-Stock
24	90508-20555-00	SPRING, TORSION	$10.49	$8.18	3 In-Stock
25	90201-14217-00	WASHER, PLATE	$11.49	$8.96	5 In-Stock
26	93104-14059-00	OIL SEAL	$14.49	$11.30	10+ In-Stock
27	93315-21429-00	BEARING	$35.99	$28.07	6 In-Stock
