1997 Yamaha XJ600S (Seca II) Electrical 1 OEM Parts Diagram

Submodel SECA II - XJ600SJC - 1997

Shop Aftermarket Parts

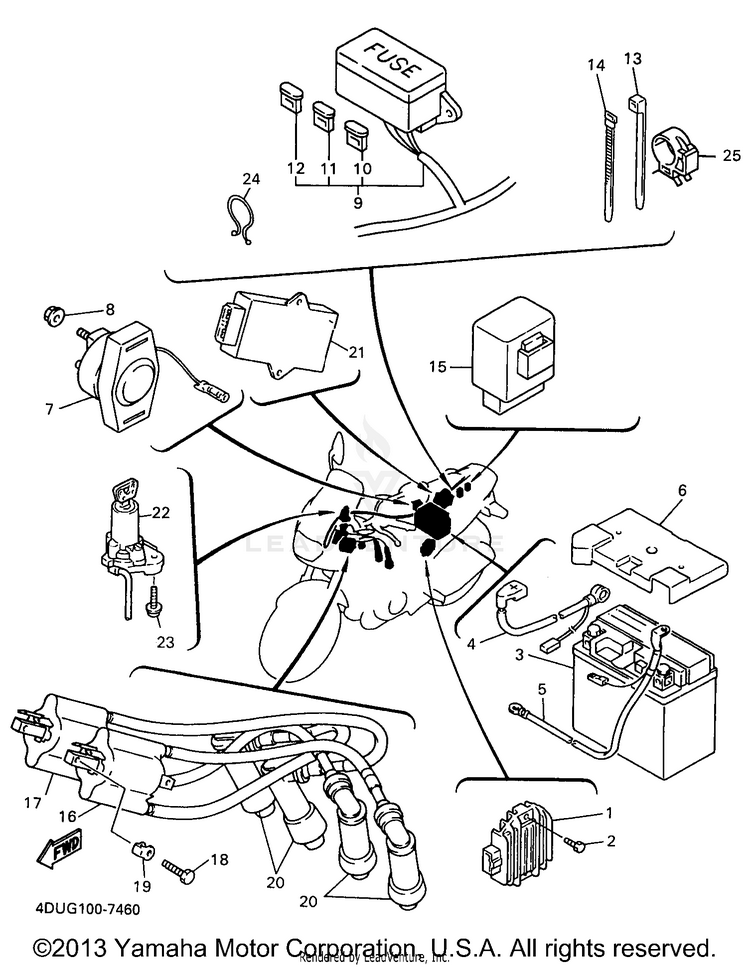

ELECTRICAL 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
14HM-81960-01-00

(replaces part #
4HM-81960-00-00)

RECTIFIER & REGULATOR ASSEMBLY$117.99$92.03Usually ships in 7-10 business days
291317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
3YTX-9BS00-00-00

(replaces part #
3PK-82100-00-00)

YTX9BS YUASA BATTER$109.99$91.53Usually ships in 7-10 business days
44BP-82115-00-00

(replaces part #
4EB-82115-00-00)

WIRE, PLUS LEAD$30.99$25.41Usually ships in 7-10 business days
54BP-82116-00-00WIRE, MINUS LEAD$31.99$26.23Usually ships in 7-10 business days
64EB-82129-00-00COVER, BATTERY$18.99$15.57Usually ships in 7-10 business days
74BP-81940-00-00STARTER RELAY ASSEMBLY (MS5D-40$109.99$85.79Usually ships in 7-10 business days
895707-06500-00NUT, FLANGE$1.00$0.9910+ In-Stock
94DU-82590-20-00WIRE HARNESS ASSEMBLY | UR$335.99$262.07Usually ships in 7-10 business days
101AE-82151-00-00FUSE (30A-BL)$8.49$6.628 In-Stock
1136Y-82151-00-00FUSE (15A-BLUE)$6.49$5.0610+ In-Stock
1242X-82151-00-00FUSE (10A-BL)$4.70$4.0410+ In-Stock
131UA-82591-00-00BAND$5.49$4.2810+ In-Stock
1480L-26397-00-00BAND$8.49$7.64Usually ships in 7-10 business days
154EP-81950-00-00RELAY ASSEMBLY | UR$79.99$62.39Usually ships in 7-10 business days
164BR-82310-06-00

(replaces part #
4BR-82310-00-00)

IGNITION COIL ASSY$89.99$70.19Usually ships in 7-10 business days
174BR-82320-06-00

(replaces part #
4BR-82320-00-00)

IGNITION COIL ASSY$75.99$59.27Usually ships in 7-10 business days
1897080-06020-00BOLT$4.60$4.14Usually ships in 7-10 business days
194BR-82317-00-00DAMPER, IGNITION COIL$5.99$5.39Usually ships in 7-10 business days
204BP-82370-01-00

(replaces part #
4BP-82370-00-00)

PLUG CAP ASSY$38.99$30.418 In-Stock
214DU-82305-00-00IGNITOR UNIT ASSEMBLY | UR$842.99$657.53Usually ships in 7-10 business days
224NA-82501-02-00

(replaces part #
4NA-82501-01-00)

MAIN SWITCH STEERING LOCK$319.99$249.59Usually ships in 7-10 business days
2390109-08196-00

(replaces part #
90109-080G5-00)

BOLT$9.49$7.4010+ In-Stock
2490464-25267-00

(replaces part #
90464-23041-00)

CLAMP | UR$8.49$6.624 In-Stock
2590464-20191-00CLAMP$11.49$9.42Usually ships in 7-10 business days
