1997 Yamaha XT350 Handle Switch Lever OEM Parts Diagram

Submodel XT350JC - 1997

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH LEVER

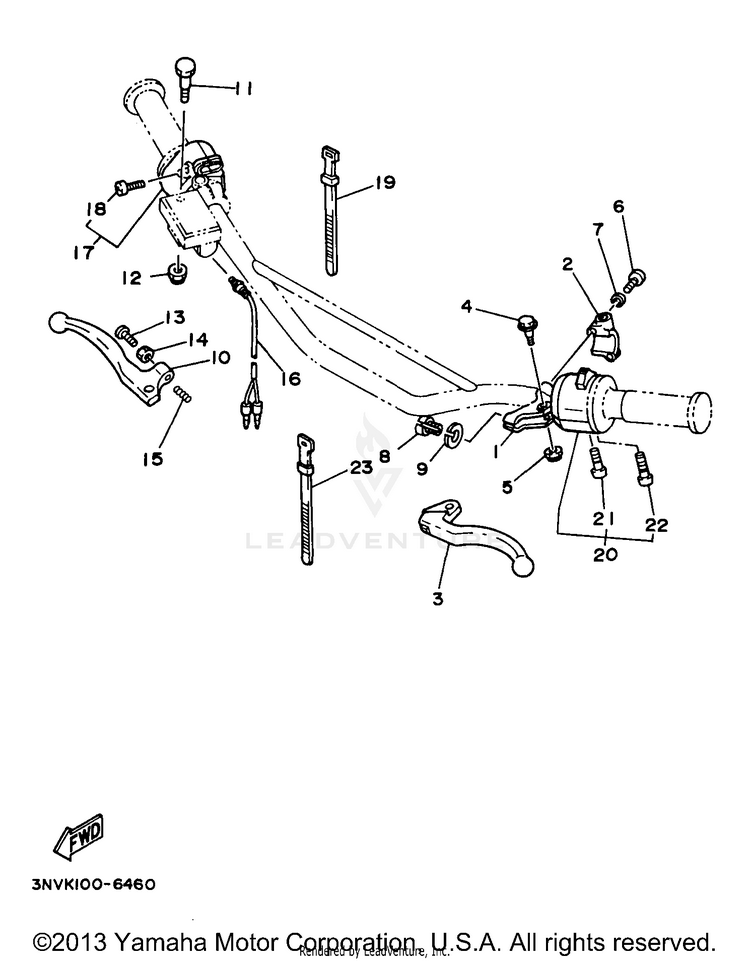

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11LN-82911-00-00HOLDER, LEVER 1$44.99$35.092 In-Stock
233G-82913-01-00HOLDER, LEVER LOWER 1$21.99$17.159 In-Stock
33FY-83912-02-00

(replaces part #
3FY-83912-01-00)

LEVER 1$31.99$24.954 In-Stock
490109-06799-00BOLT$5.49$4.288 In-Stock
595617-06100-00NUT, U$2.90$2.4910+ In-Stock
698517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
792907-05100-00WASHER, SPRING$9.49$7.706 In-Stock
890123-08002-00

(replaces part #
90123-08046-00)

BOLT$10.49$8.1810+ In-Stock
990179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
103FY-83922-01-00

(replaces part #
3FY-83922-00-00)

LEVER R$34.99$28.69Usually ships in 7-10 business days
1190109-06577-00BOLT$6.49$5.0610+ In-Stock
1295617-06100-00NUT, U$2.90$2.4910+ In-Stock
1390149-06131-00SCREW$9.49$7.4010+ In-Stock
1490170-06010-00NUT$9.49$7.404 In-Stock
1590501-10312-00SPRING, COMPRESSION$9.49$7.405 In-Stock
163YF-83980-00-00

(replaces part #
34X-83980-01-00)

STOP SWITCH ASY$51.99$40.55Usually ships in 7-10 business days
1743F-83976-00-00SWITCH, HANDLE 1$45.99$37.71Usually ships in 7-10 business days
1898517-05020-00

(replaces part #
98507-05020-00)

SCREW, PAN HEAD$1.75$1.503 In-Stock
19437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
2021T-83973-01-00

(replaces part #
21T-83973-00-00)

SWITCH, HANDLE 3$250.99$195.77Usually ships in 7-10 business days
2190157-05057-00

(replaces part #
90157-05027-00)

SCREW, PAN HEAD$3.85$3.463 In-Stock
2298517-05030-00

(replaces part #
98507-05030-00)

SCREW, PAN HEAD$11.49$8.962 In-Stock
23437-83936-01-00BAND, SWITCH CORD$8.49$6.6210+ In-Stock
